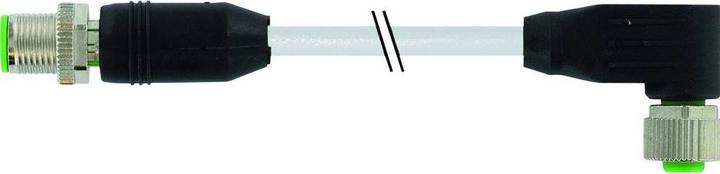

Murr Elektronik M12 St. 0° / M12 Bu. 90° PUR 8x0.25 gr dragk. 1m

Ratings
Delivered between Sat, 5.7. and Sat, 19.7.
More than 10 items in stock at supplier

Product details

M12 St. 0° / M12 Bu. 90° PUR 8x0.25 gr dragk. 1m. Technical data: . Connection side A (sensor actuator): M12 plug, straight - Connection side B (sensor actuator): M12 socket, angled - Outer diameter: 5.8 mm - Thread type cable connection and mounting: M12 - Prod. part no.: 7000-48011-2920100 - Content: 1 pc. - Cable diameter: 5.8 mm - Cable color: Gray - Cable length: 1.00 m - Coding: A - Wire gauge (sensor/actuator wiring): 0.25 mm² - Jacket material: PUR - Rated voltage: 300 V/AC - Rated current: 2 A - Product type: sensor/actuator connector, assembled - RoHS compliant: Yes - Protection class: IP65,IP66K,IP67 - Temperature (max.): +80 °C - Temperature (min.): -40 °C - Type (manufacturer type): 7000-48011-2920100 - Other technical data: Type: 48011.Core count/cross section: 8× 0.25 mm².Drag chain values: 10 million.Core insulation: PP (ws, br, gn, ge, gr, rs, bl, rt).Bending radius (moving): 10× outer Ø.Temperature range (moving): -25. +80 °C.Cable identifier: 292.Cable weight [g/m]: 52.80.Material (conductor): stranded copper wire, bare.Resistance (conductor): max. 79 Ω/km (20 °C).Single wire Ø (conductor): 0.1 mm.Construction (conductor): 32× 0.1 mm (strand class 6).AWG: similar to AWG 24.Material (core insulation): PP.Core Ø incl. insulation: 1.2 mm ±5%.Core color/numbering: br, ws, rt, bl, rs, gr, ge, gn.Stranding: 8 cores stranded around core filler.Shielding: no.Chemical resistance: good oil, gasoline and chemical resistance (EN 60811-404).Thermal resistance: flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2.Test voltage: 2500 V AC.Bending radius (fixed): 5× outer Ø.Number of bending cycles (drag chain): max. 10 million (25 °C).Travel distance (drag chain): max. 10 m (horizontal).Travel speed (drag chain): max. 3 m/s.Acceleration (drag chain): max. 10 m/s².Rated impulse voltage: 0.8 kV.Slot locking: Screw thread (M12×1 mm) rec. Tightening torque 0.6 Nm, self-locking.Material (locking): zinc die-cast, matt nickel-plated.

Key specifications

Plug type
M12
Cable + connector type
Plug connectors
Cable length
1 m
Item number
18637852

General information

Manufacturer
Murr Elektronik
Category
Cables + Plugs
Manufacturer no.
7000-48011-2920100
Release date
4.2.2022
External links
Manufacturer's site (de)

Colour

Colour
Grey

Material

Material group
Metal
Material
Pure

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
M12
Max. temperature
80 °C
Min. temperature
-40 °C
Cable length
1 m
Connectors Design
Angled
Number of cores
8 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
1 pc.

Product dimensions

Length
100 cm
Width
0.58 cm
