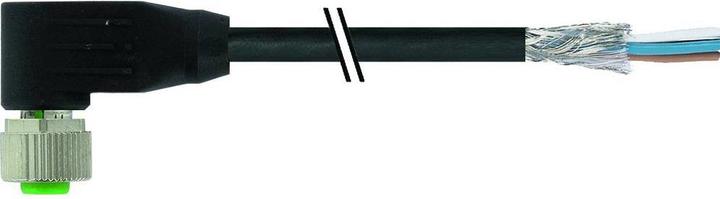

Murr Elektronik M12 Bu. gew. shielded with free cable end PUR-OB 5x0.34 shielded UL, CSA+schleppk. 10m

M12 Bu. gew. shielded with free cable end PUR-OB 5x0,34 shielded black UL, CSA+schleppk. 10m. Technical data: . Connection side A (sensor actuator): M12 socket, angled - Connection side B (sensor actuator): Cable, open end - Outer diameter: 5.6 mm - Thread type cable connection and mounting: M12 - Avail. part no.: 7000-13281-6431000 - Content: 1 pc. - Cable diameter: 5.6 mm - Cable color: Black - Cable length: 10.00 m - Coding: A - Contact material: Copper alloy - Contact surface: Au - Wire size (sensor/actuator wiring): 0.34 mm² - Jacket material: PUR - Rated voltage: 300 V/AC - Rated current: 4 A - Number of poles: 5 - Product type: sensor/actuator connector, unassembled - RoHS compliant: Yes - Protection class: IP65,IP66K,IP67 (when mated) - Temperature (max.): +80 °C - Temperature (min.): -40 °C - Type (manufacturer type): 7000-13281-6431000 - Other technical data: Type: 13281.No. of cores/cross section: 5× 0.34 mm².Drag chain values: 5 million.Core insulation: PP (br, ws, bl, sw, gr).Bending radius (moving): 10× outer Ø.Temperature range (moving): -25. +80 °C.Cable identifier: 643.Cable weight [g/m]: 57.20.Material (conductor): stranded copper wire, bare.Resistance (conductor): max. 57 Ω/km (20 °C).Single wire Ø (conductor): 0.1 mm.Construction (conductor): 42× 0.1 mm (strand class 6).AWG: similar to AWG 22.Material (core insulation): PP.Core Ø incl. insulation: 1.25 mm ±5%.Core color/numbering: br, sw, bl, ws, gr.Stranding compound: 5 cores stranded around core filler.Shielding: yes.Chemical resistance: good oil, gasoline and chemical resistance (EN 60811-404).Thermal resistance: flame retardant according to UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2.Test voltage: 2000 V AC.Bending radius (fixed): 5× outer Ø.Number of bending cycles (drag chain): max. 5 million (25 °C).Travel distance (drag chain): max. 5 m (horizontal).Travel speed (drag chain): max. 3.3 m/s.Acceleration (drag chain): max. 5 m/s².Rated impulse voltage: 1.5 kV.LED display: no.
