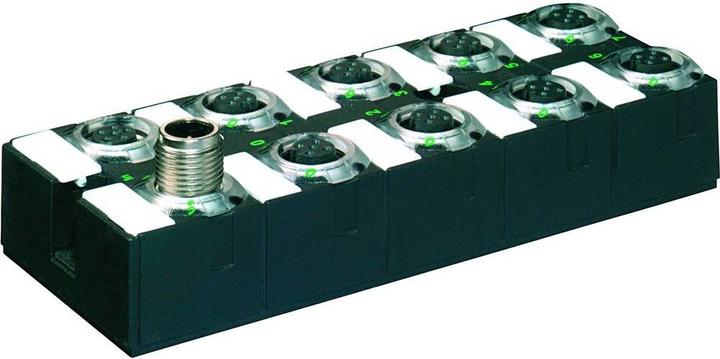

Murr Elektronik Cube67 I/O expansion module 16 digital inputs Cube67 DI16 E 8xM12

Cube67 I/O expansion module 16 digital inputs Cube67 DI16 E 8xM12. Technical data: Connection (components): screws; Connection type (distribution boxes): M12 socket; Total number of poles: 5; Product part number: 56603; Content: 1 pc; Number of poles: 5; Product type: Sensor/actuator box passive; Product dimension, width: 50 mm; Product dimension, height: 126 mm; Product dimension, length: 34.5 mm; RoHS compliant: Yes; Protection class: IP67; Signal type: PNP; Status indication: with LED; Temperature (max.): +55 °C; Temperature (min.): 0 °C; Type (manufacturer type): 56603; Distribution box type (categorization): M12 distributor with plastic thread; Other technical data: Diagnostics via BUS: per module and channel; Diagnostics via LED: per module and channel; Input filter: 1 ms; Fieldbus: via internal system connection; Short-circuit and overload: yes; PIN 2: Input/Diagnostic; PIN 4: Input; Sensor supply US: 24 V DC, max. 200 mA (M12 socket), short-circuit and overload-proof; Current consumption: max. 50 mA; Monitoring - no voltage: yes; Monitoring - undervoltage: yes.
