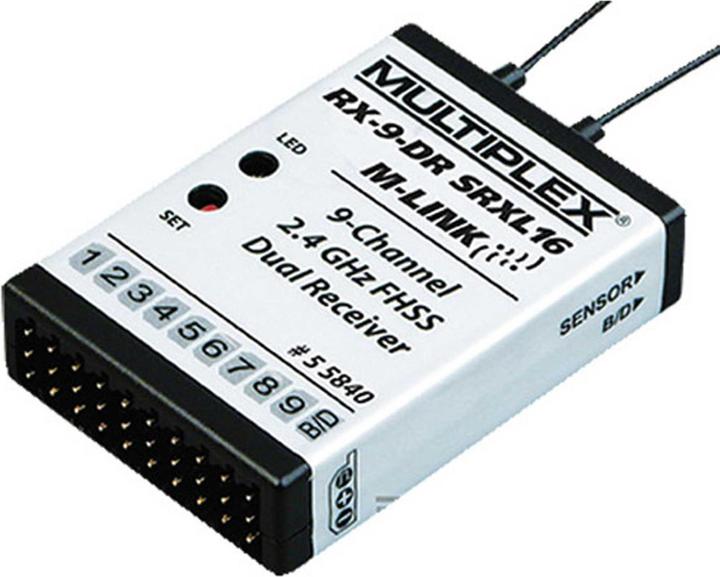

Multiplex Receiver RX-9-DR SRXL16 M-Link

Serial Servo Output SRXL-MULTIPLEX

The RX-9-DR SRXL16 receiver offers you the option to use 16 servo outputs as a sum signal (serial servo output = SRXL-MULTIPLEX): The sum signal is output at the B/D connection of the receiver.

Applications:
• For functional models in conjunction with our Multiswitch FLEXX modules
• Use of M-Link in multicopters
• Connection of all common helicopter flybarless systems
• Modern on-board systems for battery and servo management

Connect the included three-wire cable from the B/D connection of the receiver to the SRXL-compatible device (refer to the user manual of these devices). The universal 9-channel DR receiver with serial servo output SRXL is specifically designed for use in functional models. The RX-9-DR SRXL16M-LINK receiver can be operated with any other M-LINK remote control.

A high-quality 9-channel receiver built using the latest SMD technology in MULTIPLEX 2.4 GHz M-LINK technology for all types of models. As a dual receiver, this receiver features two complete, parallel operating receiver circuits (receiver diversity). This, combined with a special signal pre-amplification, ensures maximum sensitivity and thus excellent reception quality and maximum system range.

Features:
• Max. 9 proportional channels
• 16 proportional channels at the SRXL interface
• SRXL interface for MULTIswitch FLEXX bus and for flybarless systems
• HOLD/FAIL-SAFE function
• Telemetry/return channel capable
• Integrated sensor interface for connecting external sensor modules (max. 16)
• Integrated error counter (voltage and signal errors)
• MULTImate compatible
• Integrated PC interface - updatable.

Typical applications:
• RC trucks
• RC construction machines
• RC ships.
