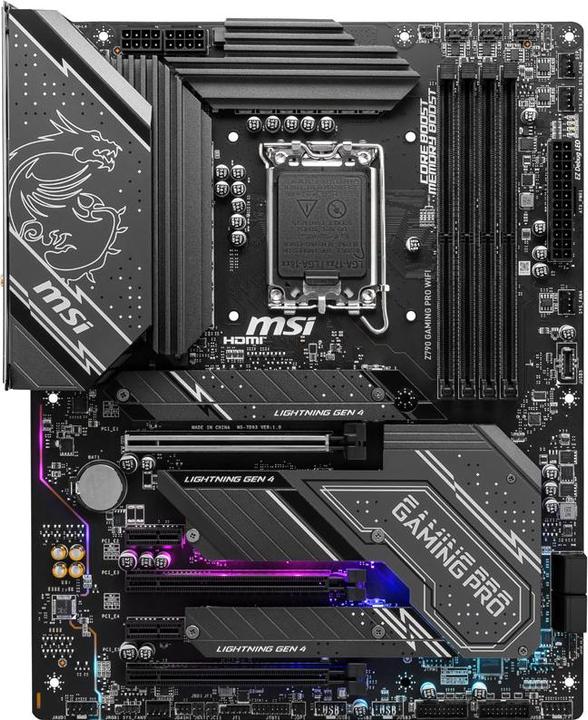

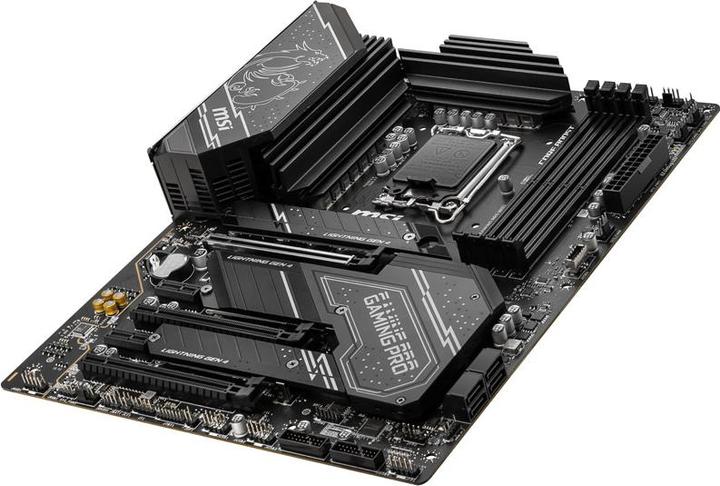

MSI Z790 GAMING PRO WIFI
LGA 1700, Intel Z790, ATXProduct details
The Z790 Gaming Pro WiFi is designed with extensive connectivity, flexible tools, and a convenient Wi-Fi solution, featuring DDR5 memory for gamers who want it all.
Extended heatsink enlarges the surface for heat dissipation and maintains performance under heavy loads.
M.2 Shield Frozr provides a strengthened thermal solution for M.2 SSDs, ensuring safety and incredible performance.
The heavy plated VRM heatsink covers the upper MOS and helps dissipate heat effectively.
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
The chipset heatsink is designed to reduce dust and noise while maintaining high efficiency of the PCH.
Lightning Gen 4 PCI-E doubles the bandwidth of the previous generation, allowing a x16 interface to reach 64GB/s.
Reinforced, heavy soldered connections secure the motherboard with extra solder points, supporting the weight of heavy graphics cards.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Trusted Platform Module |
Item number | 35688791 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7D93-001R |
Release date | 16.5.2023 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 |
Mainboard features | Trusted Platform Module |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 |
Supported memory speed | 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Transfer rate | 8000 MT/s |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

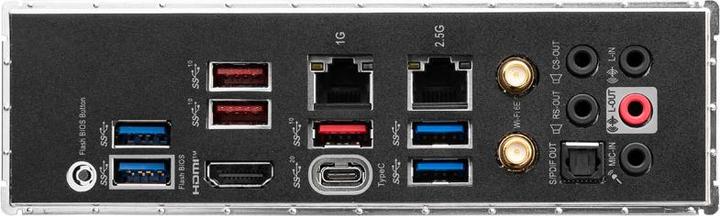

Video connections | DisplayPort, HDMI Type A |
Video connection version | HDMI 1.4 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCIe (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (5x) |
PCI express version (max.) | 3 |
Number of fan connector | 7 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 304.80 mm |
Width | 243.84 mm |
Height | 70 mm |
Weight | 1820 g |
Length | 34.70 cm |
Width | 27.20 cm |
Height | 7.30 cm |
Weight | 1.57 kg |
