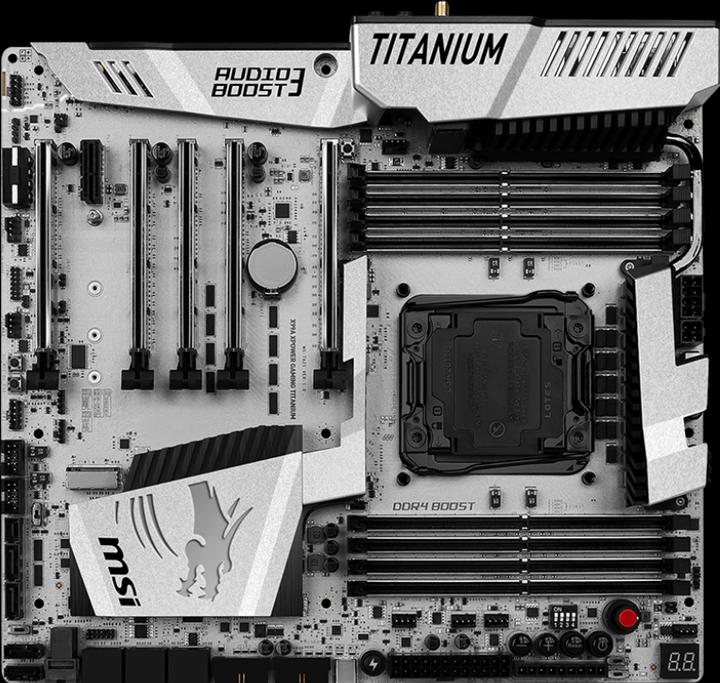

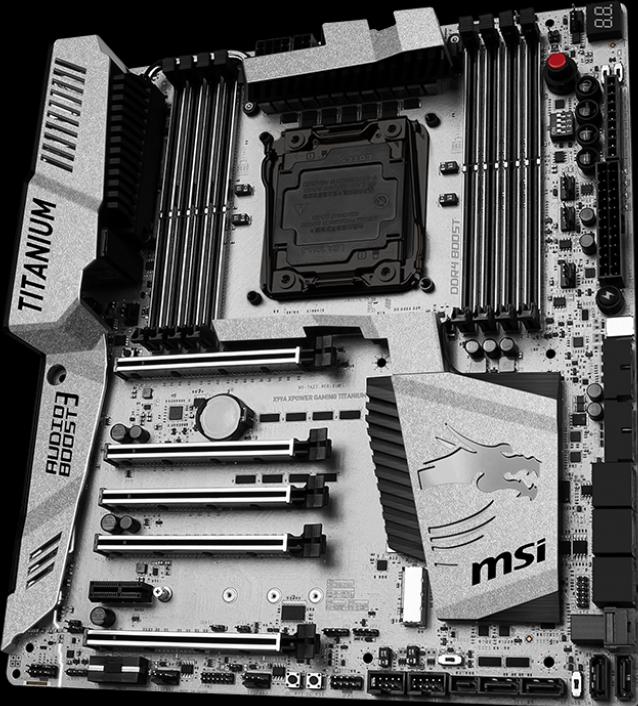

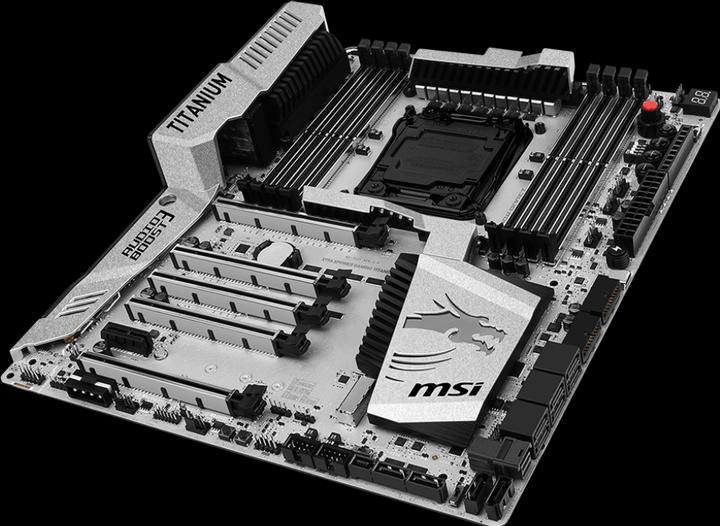

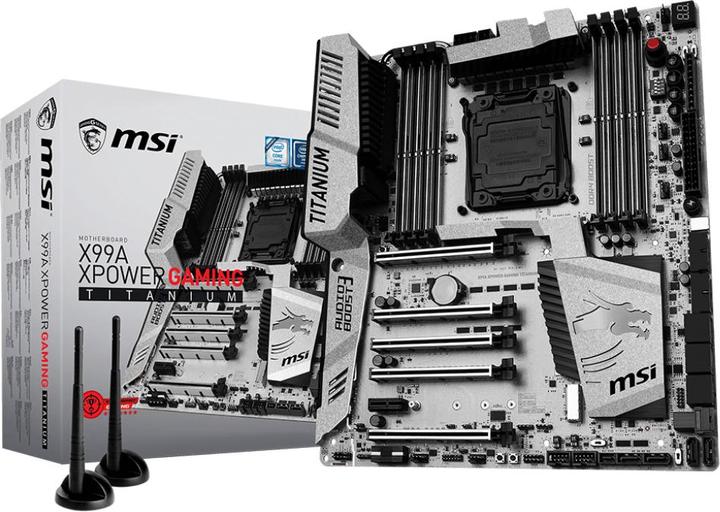

In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo.
In der Computertechnik ist der Formfaktor eine Angabe über Größe und Befestigungsmöglichkeiten eines Bauteils, das in einem Computer Verwendung findet. Durch diese Standardisierung können verschiedene Komponenten einfach zusammengefügt und ausgetauscht werden.
A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering. Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.
The Unified Extensible Firmware Interface (UEFI) is a specification that defines a software interface between an operating system and platform firmware. UEFI is meant as a replacement for the Basic Input/Output System (BIOS) firmware interface, present in all IBM PC-compatible personal computers. In practice, most UEFI images have legacy support for BIOS services. UEFI can be used to allow remote diagnostics and repair of computers, even without another operating system.
Computer data storage, often called storage or memory, is a technology consisting of computer components and recording media used to retain digital data. It is a core function and fundamental component of computers.
Ein Speichermodul oder Speicherriegel ist eine kleine Leiterplatte, auf der mehrere Speicherbausteine (Dynamisches RAM in Form von integrierten Schaltkreisen) aufgelötet sind. Speichermodule bilden oder erweitern den Arbeitsspeicher elektronischer Geräte wie Computer oder Drucker und werden dort in speziell dafür vorgesehene Steckplätze gesteckt.
Ein Datenspeicher oder Speichermedium dient zur Speicherung von Daten beziehungsweise Informationen. Der Begriff Speichermedium wird auch als Synonym für einen konkreten Datenträger verwendet.
Random-access memory is a form of computer data storage. A random-access device allows stored data to be accessed directly in any random order. In contrast, other data storage media such as hard disks, CDs, DVDs and magnetic tape, as well as early primary memory types such as drum memory, read and write data only in a predetermined order, consecutively, because of mechanical design limitations. Therefore the time to access a given data location varies significantly depending on its physical location.
Describes how much memory can be overclocked (maxium RAM overclocking).
3466 MHz
Memory type
i
Memory type
DDR-SDRAM („Double Data Rate Synchronous Dynamic Random Access Memory“) ist ein Typ von Random Access Memory (RAM), den es aktuell in drei Kategorien gibt. DDR-SDRAM mit 184 Kontakten, DDR2-SDRAM mit 240 Kontakten und DDR3-SDRAM ebenfalls mit 240 Kontakten. Verwendet werden sie hauptsächlich für Speichermodule des DIMM- bzw. SO-DIMM-Standards als Arbeitsspeicher in PCs und Laptops.
In addition to bandwidth and capacity variants, modules can 1. Optionally implement ECC, which is an extra data byte lane used for correcting minor errors and detecting major errors for better reliability. Modules with ECC are identified by an additional ECC in their designation. 2. Be "registered", which improves signal integrity (and hence potentially clock speed and physical slot capacity) by electrically buffering the signals at a cost of an extra clock of increased latency. Those modules are identified by an additional R in their designation, whereas non-registered (a.k.a. "unbuffered") RAM may be identified by an additional U in the designation. 3. Be Fully buffered modules, which are designated by F or FB and do not have the same notch position as other classes. Fully buffered modules cannot be used with motherboards that are made for registered modules, and the different notch position physically prevents their insertion.
unbuffered
Memory form factor
i
Memory form factor
A DIMM or dual in-line memory module, comprises a series of dynamic random access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share.
The main difference between SIMMs and DIMMs is that DIMMs have separate electrical contacts on each side of the module, while the contacts on SIMMs on both sides are redundant. Another difference is that standard SIMMs have a 32-bit data path, while standard DIMMs have a 64-bit data path.
Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s.
RAID (redundant array of independent disks, originally redundant array of inexpensive disks) is a storage technology that combines multiple disk drive components into a logical unit. Data is distributed across the drives in one of several ways called "RAID levels", depending on what level of redundancy and performance (via parallel communication) is required.
(block-level striping without parity or mirroring) has no (or zero) redundancy. It provides improved performance and additional storage but no fault tolerance.
(mirroring without parity or striping), data are written identically to two drives, thereby producing a "mirrored set"; the read request is serviced by either of the two drives containing the requested data, whichever one involves least seek time plus rotational latency.
(block-level striping with distributed parity) distributes parity along with the data and requires all drives but one to be present to operate; the array is not destroyed by a single drive failure.
Ein RAID-10-Verbund ist ein RAID 0 über mehrere RAID 1. Es werden dabei die Eigenschaften der beiden RAIDs kombiniert: Sicherheit und gesteigerte Schreib-/Lesegeschwindigkeit. Ein RAID-10-Verbund benötigt mindestens vier Festplatten.
The expansion card (also expansion board, adapter card or accessory card) in computing is a printed circuit board that can be inserted into an electrical connector, or expansion slot on a computer motherboard, backplane or riser card to add functionality to a computer system via the expansion bus.
PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCIe, is a computer expansion card standard designed to replace the older PCI, PCI-X, and AGP bus standards. PCIe has numerous improvements over the aforementioned bus standards, including higher maximum system bus throughput, lower I/O pin count and smaller physical footprint, better performance-scaling for bus devices, a more detailed error detection and reporting mechanism, and native hot-plug functionality. More recent revisions of the PCIe standard support hardware I/O virtualization.
PCI Express („Peripheral Component Interconnect Express“, abgekürzt: PCIe oder PCI-E) ist ein Erweiterungsstandard zur Verbindung von Peripheriegeräten mit dem Chipsatz eines Hauptprozessors. PCIe ist der Nachfolger von PCI, PCI-X und AGP und bietet im Vergleich zu seinen Vorgängern eine höhere Datenübertragungsrate pro Pin. Während ihrer Entwicklung wurde die Schnittstelle „3GIO“ genannt, was für „3rd Generation Input/Output“ steht.
In der 3D-Computergrafik werden verschiedene Verfahren zur Lastverteilung der Rechenarbeit auf mehrere Grafikchips oder Grafikkarten eingesetzt. Der Sammelbegriff für diese unterschiedlichen Techniken lautet Multi-GPU. Obwohl jeder Hersteller ähnliche Betriebsmodi anbietet, ist der Name der jeweiligen Technik eine spezielle Marketing-Wortschöpfung.
In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).
All network connectivity bluetooth, infrared ports, WLAN, UMTS etc. Standards are listed here as well.
Wi-Fi
i
Wi-Fi
A wireless local area network (WLAN) links two or more devices using some wireless distribution method (typically spread-spectrum or OFDM radio), and usually providing a connection through an access point to the wider Internet.
Im Jahr 2013 soll der neue Standard 802.11ac verabschiedet werden. Hauptvorteil gegenüber 802.11n ist die schnellere Datenübertragung mit einer Bruttodatenrate bis zu 6900MBit/s. Netto schaffen gute Geräte aber immerhin das dreifache der 3-Stream-MiMO-Geräte. Die Datenübertragung geschieht ausschliesslich im 5-GHz-Band und fordert eine grössere Kanalbreite von 80 MHz, optional eine Kanalbreite von 160 MHz.
IEEE 802.11g-2003 or 802.11g is an amendment to the IEEE 802.11 specification that extended throughput to up to 54 Mbit/s using the same 2.4 GHz band as 802.11b.
IEEE 802.11n-2009 is an amendment to the IEEE 802.11-2007 wireless networking standard to improve network throughput over the two previous standards—802.11a and 802.11g—with a significant increase in the maximum net data rate from 54 Mbit/s to 600 Mbit/s (slightly higher gross bit rate including for example error-correction codes, and slightly lower maximum throughput) with the use of four spatial streams at a channel width of 40 MHz.802.11n standardized support for multiple-input multiple-output and frame aggregation, and security improvements, among other features.
The device can be connected to another device via Bluetooth.
Yes
Audio
Chip
Realtek ALC1150
Audio channel
i
Audio channel
The descriptions of audio sound specifications distinguish between the number of discrete channels encoded in the original signal and the number of channels reproduced for playback.
7.1 Channel
Audio (3. 5 mm) connectors
i
Audio (3. 5 mm) connectors
Es sind 3.5mm Audioanschlüsse vorhanden. (Mindestens Audio Output).
5 x
Optical TOSLINK
i
Optical TOSLINK
S/PDIF (Sony/Philips Digital Interconnect Format) is a type of digital audio interconnect cable used in consumer audio equipment to output audio over reasonably short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.

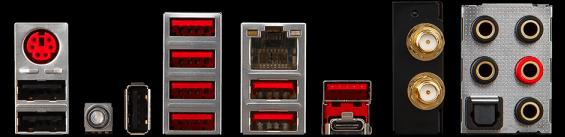

The universal serial bus (USB) is a serial bus system for the connection of a computer to external devices. USB3.0 can reach up to 5 Gbit/s in Superspeed modus.
Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed. The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.
