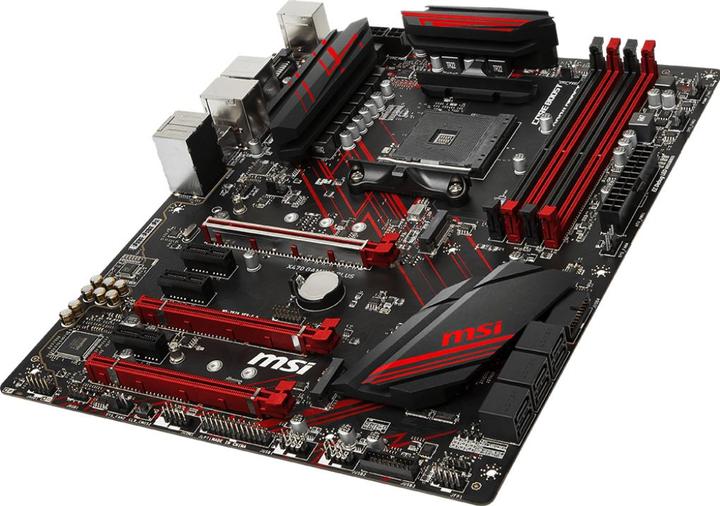

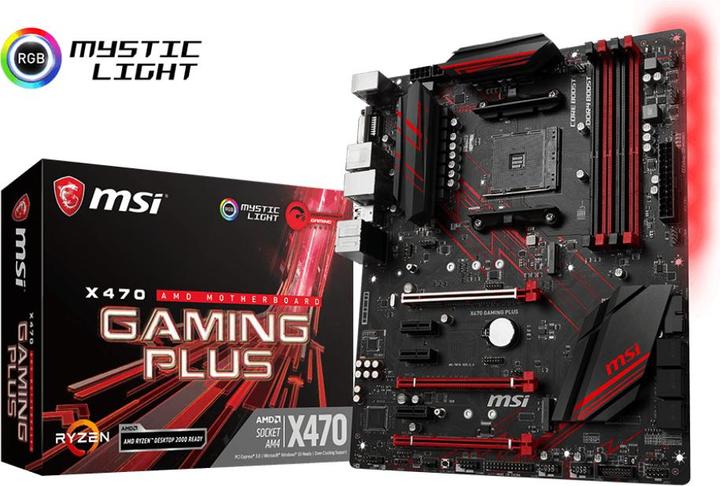

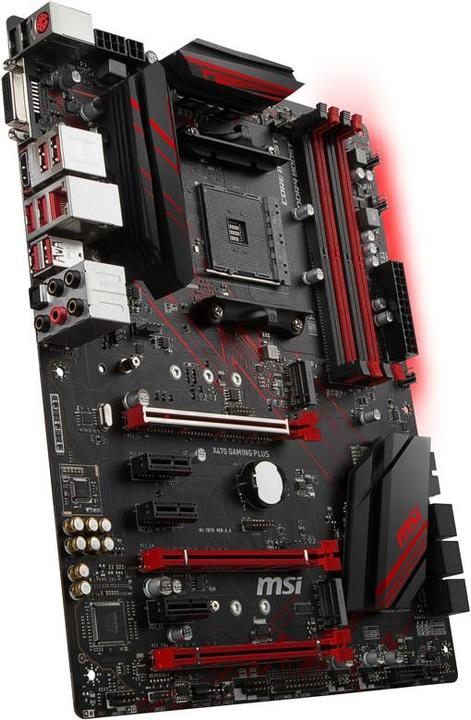

MSI X470 Gaming Plus (AM4, AMD X470, ATX) Actual product image
CHF 154.–

MSI X470 Gaming Plus (AM4, AMD X470, ATX)

Description

Socket AM4, 4x DDR4 up to 64GB max, Gigabit Ethernet, AMD X470 chipset, 6x SATA III, 2x M.2, 3x PCI-Express x16.

Specifications

Key specifications

PCI express version (max.)3
Multi-GPU technologyAMD CrossfireX, NVIDIA SLI

General information

Manufacturer MSI
Product type Motherboards
i

Motherboards

In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo.

More information...

Item number8387803
Manufacturer no.7B79-002R
Sales rank in Product type Motherboards68 of 634
External links Manufacturer's site (en)

Motherboard properties

Form factor
ATX
i

ATX

ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995 to improve on previous de facto standards like the AT form factor.

More information...

CPU socket
i

CPU socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

More information...

AM4
Chipset
AMD X470

Processor compatibility

Processor family
AMD Ryzen

Memory

Number of memory modules
4 x
Max. memory
64 GB
Memory chip
DDR4-2400
,
DDR4-2133
Max. RAM OC
3466 MHz
Memory type
DDR4-RAM
Channel architecture
Memory form factor
DIMM 288

Mass storage controller 1

S-ATA III
i

S-ATA III

Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s.

More information...

6 x
M.2
2 x
RAID configuration
10
i

10

A RAID 10 group is a RAID 0 over several RAID 1, combining the characteristics of both RAIDs: security and increased read/write speed.
A RAID 10 network requires at least four hard disks.

More information...

,
0+1

Expansion slots

PCI express version (max.)
3
PCI Express x16
i

PCI Express x16

PCI Express ("Peripheral Component Interconnect Express", abbreviated: PCIe or PCI-E) is an extension standard for connecting peripheral devices to the chipset of a main processor. PCIe is the successor of PCI, PCI-X and AGP and offers a higher data transfer rate per pin compared to its predecessors.
During its development the interface was called "3GIO", which stands for "3rd Generation Input/Output".

More information...

3 x
PCI Express x1
i

PCI Express x1

PCI Express, officially abbreviated as PCI-E or PCIe, is a computer expansion card interface format introduced by Intel in 2004. PCI Express was designed to replace the general-purpose PCI expansion bus, the high-end PCI-X bus and the AGP graphics card interface. Unlike previous PC expansion interfaces, rather than being a bus it is structured around point-to-point serial links called lanes.

More information...

3 x

Expansion slot speed

PCI-E 3.0 x16 (@x16)
1 x
PCI-E 3.0 x16 (@x8)
2 x

Graphics properties

i

Graphics properties

Beschreibt die Grafik Eigenschaften des Gerätes.

Multi-GPU technology
AMD CrossfireX
i

AMD CrossfireX

AMD CrossFireX™ technology is the ultimate multi-GPU performance gaming platform. Unlocking game-dominating power, AMD CrossFireX™ harnesses the power of two or more discrete graphics cards working in parallel to dramatically improve gaming performance. With AMD CrossFireX™-certified AMD Radeon™ HD graphics cards ready for practically every budget and the flexibility to combine two, three or four GPUs, AMD CrossFireX™ is the perfect multi-GPU solution for those who demand the best.
Extreme Performance

By combining the intelligent software algorithms of the AMD Catalyst™ suite with dedicated scaling logic in each AMD graphics processor, a gaming rig equipped with AMD CrossFireX™ technology can deliver up to four times the performance of a system with a single graphics card.

More information...

,
NVIDIA SLI
i

NVIDIA SLI

Scalable Link Interface, SLI for short, is a multi-GPU technology from Nvidia, which enables the interconnection of two or more graphics chips to increase rendering performance (SLI frame rendering) or the use of up to four screens (SLI Multi View).

More information...

Graphic connectors

DVI-D
1 x
HDMI type A receptacle
i

HDMI type A receptacle

The High-Definition Multimedia Interface (HDMI) is a compact audio/video connector interface for transmitting uncompressed digital streams. It represents a digital alternative to consumer analog standards such as Radio Frequency (RF) coaxial cable, composite video, S-Video, SCART, component video, D-Terminal, and VGA.

1 x

Network

RJ45/LAN port
i

RJ45/LAN port

Network connection allows connection to an internal or external network.

More information...

1 x
Max. port speed
i

Max. port speed

Describes the maximum data transfer rate. Is not necessarily supported by all ports.

More information...

1000 Mbit/s
i

1000 Mbit/s

In computer networking, Gigabit Ethernet (GbE or 1 GigE) is a term describing various technologies for transmitting Ethernet frames at a rate of a gigabit per second (1,000,000,000 bits per second).

More information...

Ethernet controller brand
Realtek
i

Realtek

Realtek Semiconductor Corp. is a fabless company involved in the development of ICs for PCs.

More information...

Ethernet controller
Realtek 8111H

Audio

Chip
Realtek ALC892
Audio channel
i

Audio channel

The descriptions of audio sound specifications distinguish between the number of discrete channels encoded in the original signal and the number of channels reproduced for playback.

7.1 Channel
Audio (3. 5 mm) connectors
5 x
Optical TOSLINK
1 x

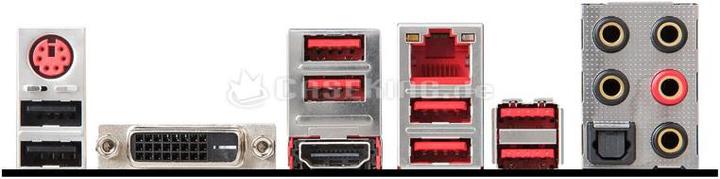

External interfaces

PS/2 Combo
1 x
USB 2.0 type A
i

USB 2.0 type A

Universal Serial Bus (USB) is a serial bus standard to interface devices. USB was designed to allow many peripherals to be connected using a single standardized interface socket and to improve the plug-and-play capabilities by allowing devices to be connected and disconnected without rebooting the computer (hot swapping). Other convenient features include providing power to low-consumption devices without the need for an external power supply and allowing many devices to be used without requiring manufacturer specific, individual device drivers to be installed.
The Mini-B, Micro-A, Micro-B , and Micro-AB connectors are used for smaller devices such as PDAs, mobile phones or digital cameras. The Standard-A plug is approximately 4 by 12 mm, the Standard-B approximately 7 by 8 mm, and the Micro-A and Micro-B plugs approximately 2 by 7 mm.

More information...

2 x
USB 3.1
6 x

Power supply

i

Power supply

All power supply related details.

Power connectors
24-pin ATX
i

24-pin ATX

More information...

,
8-pin ATX 12V
i

8-pin ATX 12V

More information...

,
4-pin ATX 12V
i

4-pin ATX 12V

More information...

Delivery contents

S-ATA cable
2 x
Manual
i

Manual

A user guide or user's guide, also commonly known as a manual, is a technical communication document intended to give assistance to people using a particular system.[1] It is usually written by a technical writer, although user guides are written by programmers, product or project managers, or other technical staff, particularly in smaller companies.

User guides are most commonly associated with electronic goods, computer hardware and software.

More information...

Yes
M.2 x4 bracket
Yes

Product dimensions

Length
305 mm
Width
244 mm

Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Correction suggestion

Comment

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Returns and warranty

Dead on arrival (DOA) 14 Days Bring-in
Warranty 36 month Bring-in
30-day right of return
i

30-day right of return

Unfortunately, we cannot accept a product if it is damaged, incomplete or missing its original packaging.

Returns and warranty

Please use our simplified returns and warranty process to return a product or register a warranty case. Returns and warranty

Please use our simplified process, which shows the correct warranty period and takes into account any warranty extensions you have purchased. This ensures that your return or case can be processed as quickly and easily as possible.

Warranty services

Warranty extension

Warranty extension

Extension of the manufacturer's warranty.

to 4 years CHF 16.50

More information about warranty services

Availability

Mail delivery

approx. 1 – 3 days
1 piece(s) ordered from the supplier.

Collection

All locations

approx. 2 – 4 days
1 piece(s) ordered from the supplier.

If ordered immediately. Information subject to change.

Questions about this product

The 2 most helpful customer questions

User klirrfactor

Hi Zusammen
Hat da jemand mehr Infos bezüglich dem Ethernet Anschluss?
Über die Suchmaschinensuche konnte ich zwar die eine oder andere negative Erfahrung in anderen Ländern auch lesen, aber mir ist immer noch nicht klar ob es sich dabei um ein DOA Fall handelt oder wo das Ethernetproblem wirklich sein kann - also physisches Problem oder Treiberproblem?

07.10.2018
1 answer
User bstlng321

Warum funktioniert die LAN Karte nicht?!

Gestern Abend funktionierte es nicht.. der Netzwerk Adapter wird nicht einmal hinzugefügt unter Windows. Dann heute Morgen funktionierte es ohne Probleme und jetzt am Abend funktioniert wieder nichts. Was soll das?!

Ps. Treiber und alles aktuell!

27.05.2018
3 answers
User bstlng321
Accepted answer

Update: Neues Mainboard angefordert. Genau dasselbe Problem. Alle Troubleshootings gemacht, alle Treiber usw. aktualisiert. Funktioniert nur wenn man den PC eine halbe Stunde liegen lässt (abgeschaltet) und dann erneut startet. Nach einem neustart ist wieder alles kaputt. Keine Lösungen.

31.05.2018

What's your question to the Community?

The Community terms and conditions apply.
If you have any questions about your order, please contact the Customer service.

Product ratings

Overall rating

Avg. 2.7 of 5 stars


Your rating

To what extent does the product meet your expectations?


The 3 most useful ratings

User Anonymous
X470 Gaming Plus (AM4, AMD X470, ATX)

Tip Top ausser Ethernet-Anschluss..

Ich kann mich den anderen Kommentaren nur Anschliessen. Das Mainboard ist für den Preis ok. Gute und gekühlte VRM's, auch für OC, nettes BIOS.. Alles andere ist ja bei den meisten gleich.

Einzig der Netzwerkstecker funktioniert einfach nicht. Ich wollte das zuerst nicht glauben. Ist aber einfach so. Wer so oder so zusätzlich eine W-Lan Karte einbaut ist mit dem Board echt gut bedient. Wer dies nicht vorhat greifft wirklich besser zu einer Alternativemore


+
+
+
-

27.09.2018
0 Comments
Report abuse

You must log in to report an abuse.

User uysal57
X470 Gaming Plus (AM4, AMD X470, ATX)

Gutes Mainboard mit einem dummen RJ45-Steckplatz. Dennoch ein sehr gutes Produkt.

Nun ich besitze das Mainboard mit einer Ryzen 5 2600 seit mehr als 3 Monaten und es läuft bei mir einwandfrei. Ich kann die Problem der anderen Käufer hier leider nicht bestätigen. NUR die Netzwerklinke für das RJ45 Kabel ist "komisch". Anders gesagt, klinkt sich das Kabel nicht ein, sondern ist wie eingepresst. Schwierig zu beschreiben. Jedoch fällt der Kabel auch nicht raus oder macht Probleme. Daher sehe ich kein Problem. Für diesen Preis, diese Ausstattung und Leistung ist dieses Mainboard unschlagbar.more


+
+
+
+
-

16.07.2018
0 Comments
Report abuse

You must log in to report an abuse.

User bstlng321
X470 Gaming Plus (AM4, AMD X470, ATX)

Kaufen -> falls Ethernetcontroller nicht erkannt wird sofort zurück geben und nie mehr zurück blicken! -> sofort Alternative suchen

Netzwerkadapter funktioniert nur wenn er gerade Lust dazu hat - und das ist nicht oft. (Ansonsten eigentlich gut)

Edit: Ein sehr guter Ersatz ist das ASUS TUF X470-PLUS GAMING. Dieses funktioniert ohne Probleme obwohl es sogar denselben Ethernetcontroller hat wenn ich mich nicht irre.more

31.05.2018
