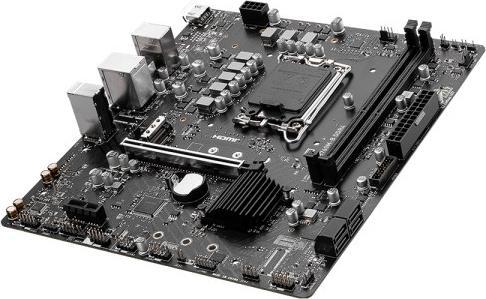

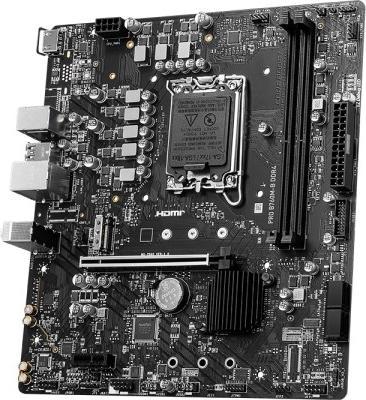

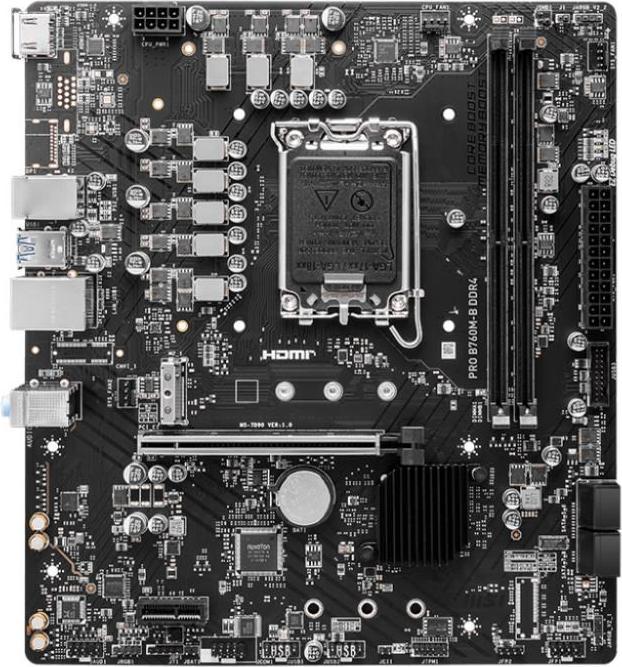

MSI Płyta główna PRO B760M-B DDR4
LGA 1700, Intel B760, mATXProduct details
The MSI PRO B760M-B DDR4 motherboard is a powerful and versatile platform designed for the latest Intel processors in the LGA 1700 socket series. With support for DDR4 SDRAM and a maximum memory clock rate of up to 4800 MHz, this motherboard provides an excellent foundation for demanding applications and gaming. Its compact micro ATX size allows for easy integration into various cases, while the extensive range of connectivity options, including Gigabit Ethernet and HDMI 2.1, ensures flexible connectivity. The motherboard is equipped with a Realtek ALC897 audio chip, delivering an impressive sound experience, and supports RAID configurations for enhanced data security and performance. With two DIMM memory slots and the capability to output up to 7.1 channels of audio, the MSI PRO B760M-B is an excellent choice for users who value performance and versatility.
- Supports Intel Pentium Gold and Intel Celeron processors
- Two DIMM memory slots for up to 4800 MHz DDR4 SDRAM
- Integrated Realtek ALC897 audio chip for 7.1 channels of audio
- RAID support for improved data security
- Versatile connectivity options, including USB 3.2 Gen 1 and HDMI 2.1.
Mainboard features | Front panel audio connector, RGB header |
Processor family | Celeron, Pentium Gold |
Number of memory modules (RAM) | 2x |
Memory type | DDR4-RAM |
Internal connections | M.2 (1x), mSATA (4x) |
Item number | 55106008 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer No. | PRO B760M-B DDR4 |
Release date | 3.3.2025 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI |
Processor family | Celeron, Pentium Gold |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 2x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-4800 |
Max. RAM OC | 4800 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4400 MHz, 4800 MHz |
Transfer rate | 8000 MT/s |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

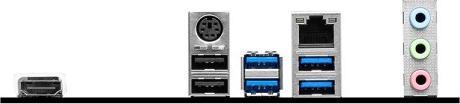

Video connections | HDMI (1x), VGA (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10, 5 |
Internal connections | M.2 (1x), mSATA (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 24-pin EATX |
Manufacturer commitment | SBTi |
Scope of delivery | RGB LED Y-cable |
Length | 243.84 mm |
Width | 220 mm |
