−13%

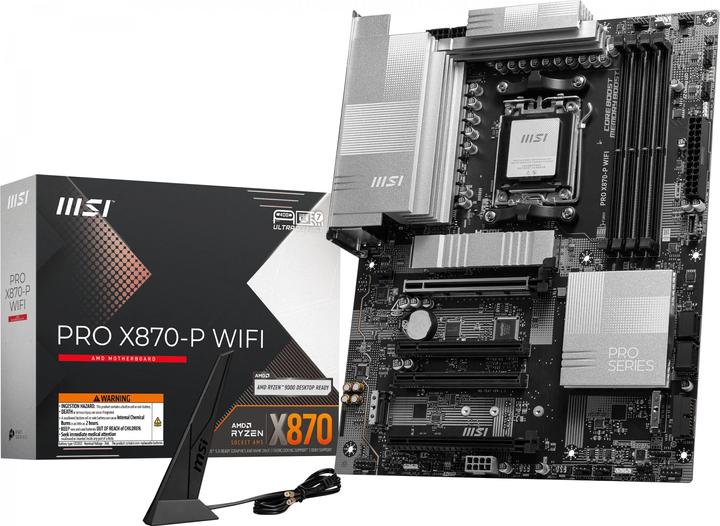

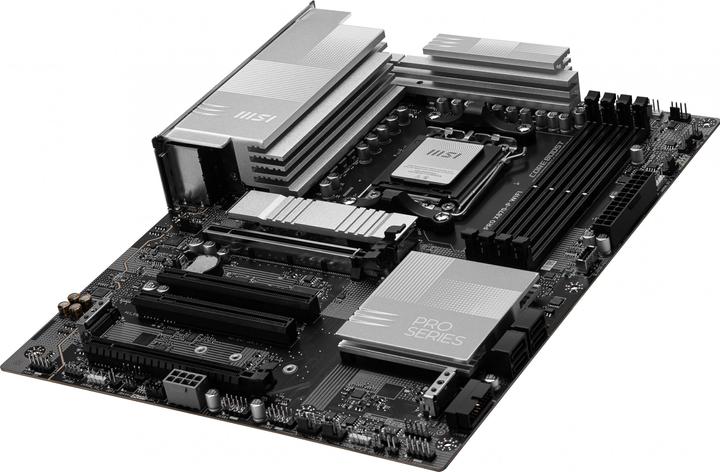

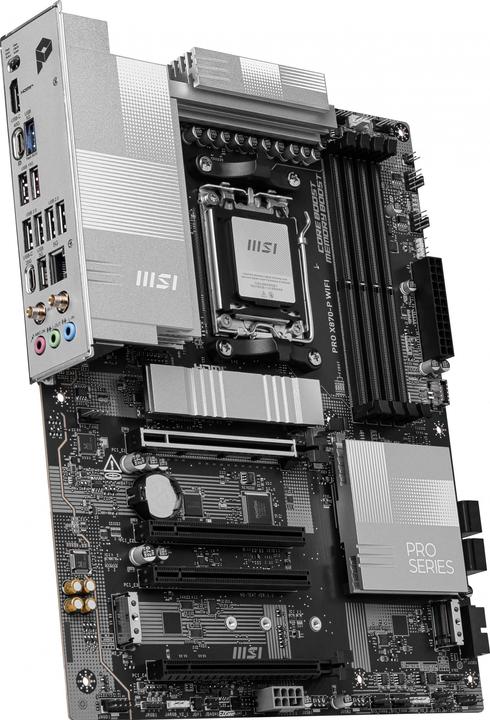

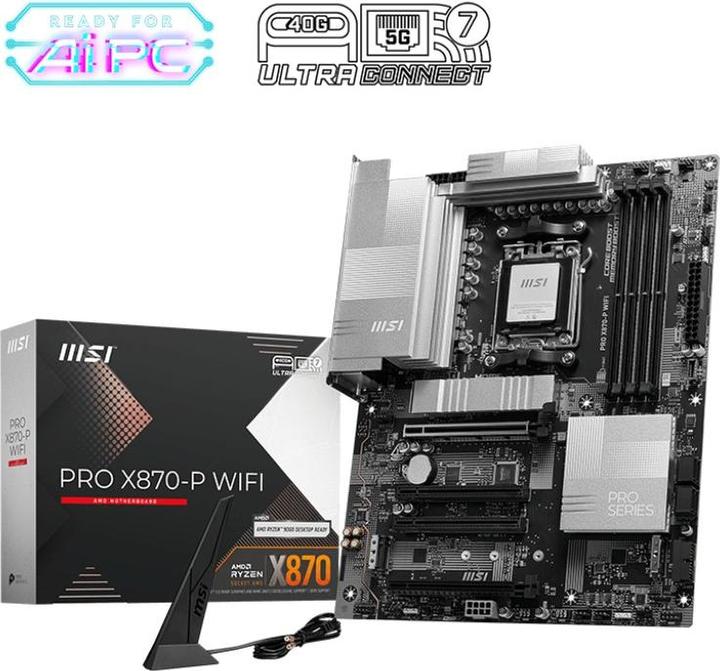

MSI PRO X870-P WIFI

AM5, AMD X870, ATX
was CHF270.–
3Ratings
BrandMore from MSI
Delivered between Thu, 9.4. and Mon, 13.4.
Only 1 piece in stock at supplier
free shipping

Product details

The PRO X870-P WIFI offers a sleek design with a harmonious silver colour scheme that matches both white and black PC cases. It is equipped with many MSI exclusive functions, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II and Supplemental PCIe Power, ready for AMD Ryzen 9000 series processors.

Key specifications

Mainboard features
Clear CMOS Button, Trusted Platform Module
Wireless transmission
Bluetooth, Wi-Fi
Number of memory modules (RAM)
4x
Memory type
DDR5 RAM
Internal connection options
M.2 (3x), S-ATA III (4x)

General information

Item number
49486535
Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7E47-001R
Release date
11.9.2024

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD X870
Mainboard features
Clear CMOS Button, Trusted Platform Module
Operating system compatibility
Windows
BIOS type
Ami
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be

Memory

Memory form factor
U-DIMM
Number of pins
288x
Number of memory modules (RAM)
4x
Max. memory (RAM)
256 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
8200 MHz
Supported memory speed
4800 MHz, 5600 MHz, 6400 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Max. port speed
5 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Microphone

Data storage

RAID configuration
0, 1

Internal interfaces

Internal connection options
M.2 (3x), S-ATA III (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (4x)
PCI express version (max.)
5
Number of fan connector
1

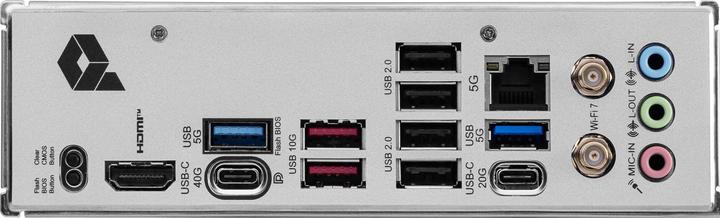

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (1x), USB-C 3.2 Gen 1 (1x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
2912.85 kg
Climate contribution
CHF 11.75

Scope of delivery

Scope of delivery
1 x 1 to 2 EZ Conn (V1) cable, 2 x Serial ATA cable, 3 x EZ M.2 clip 2, EZ M.2 Clip 2 remover, Wi-Fi antenna

Product dimensions

Length
305 mm
Width
244 mm
Weight
1900 g

Package dimensions

Length
34.30 cm
Width
27.70 cm
Height
8.70 cm
Weight
1.90 kg
