MSI PRO B760-P WIFI

LGA 1700, Intel B760, ATX
14Ratings
BrandMore from MSI
tonight with flash delivery
to check if flash delivery is available to you.
free shipping

Product details

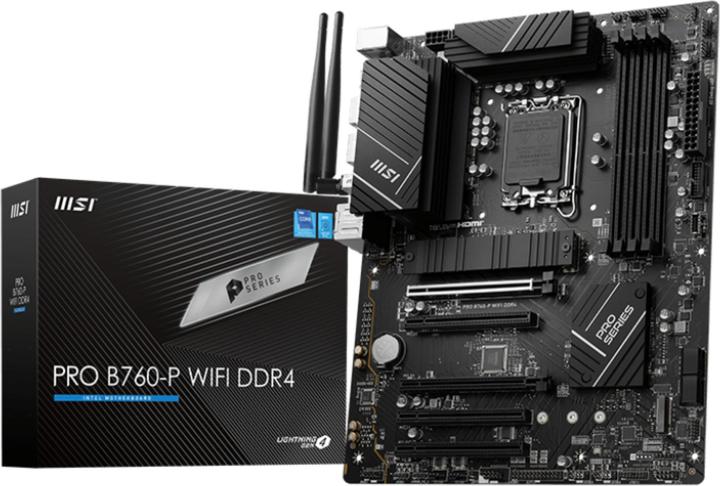

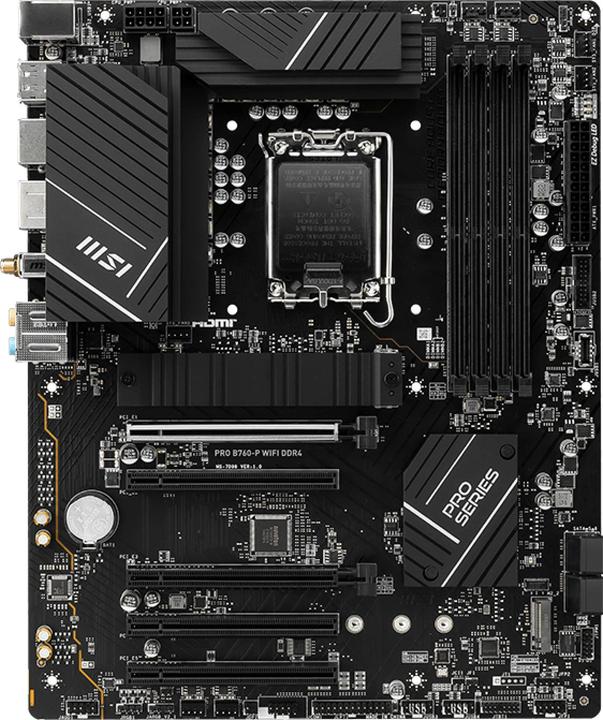

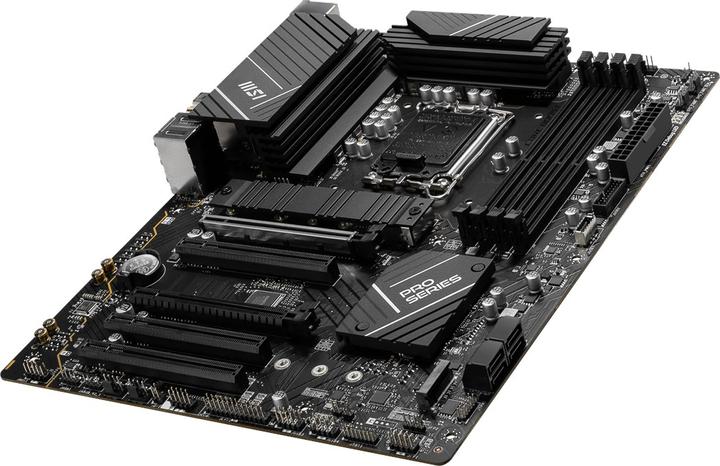

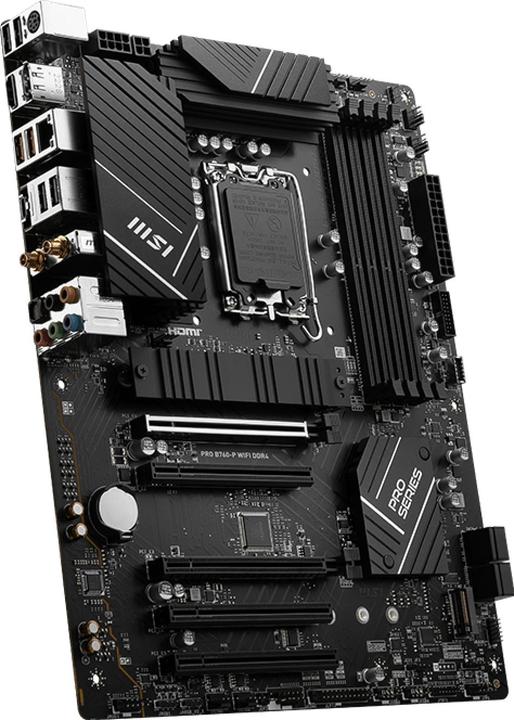

The MSI PRO B760-P WIFI DDR4 motherboard is based on the Intel B760 chipset and supports Intel processors for the LGA 1700 socket from the 13th and 12th generations. It features four DDR4 DIMM slots operating in dual-channel mode for up to 128 GB of memory.

Key specifications

Processor family
Celeron, Pentium Gold
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Front panel audio connector
Item number
23675181

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7D98-001R
Release date
12.12.2022
Sales rank in Category Motherboards
135 of 936
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Pentium Gold

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4 RAM
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 4800 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Gigabit Ethernet
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x), Optical TOSLINK (1x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (3x), PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
1

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (1x)

Power supply

Power connectors
24-pin ATX, 4-pin Molex

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
304.80 mm
Width
243.80 mm
Height
304.80 mm
Weight
1500 g

Package dimensions

Length
35.30 cm
Width
28.50 cm
Height
7.20 cm
Weight
1.49 kg
