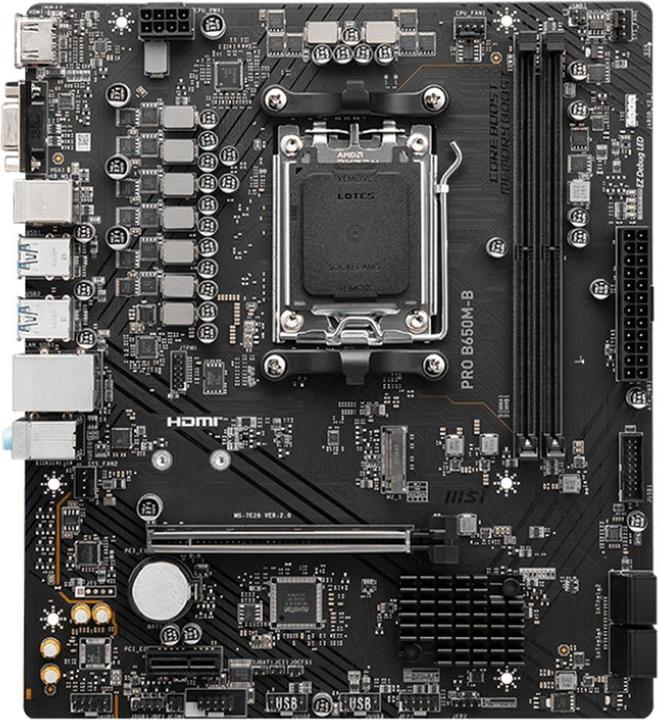

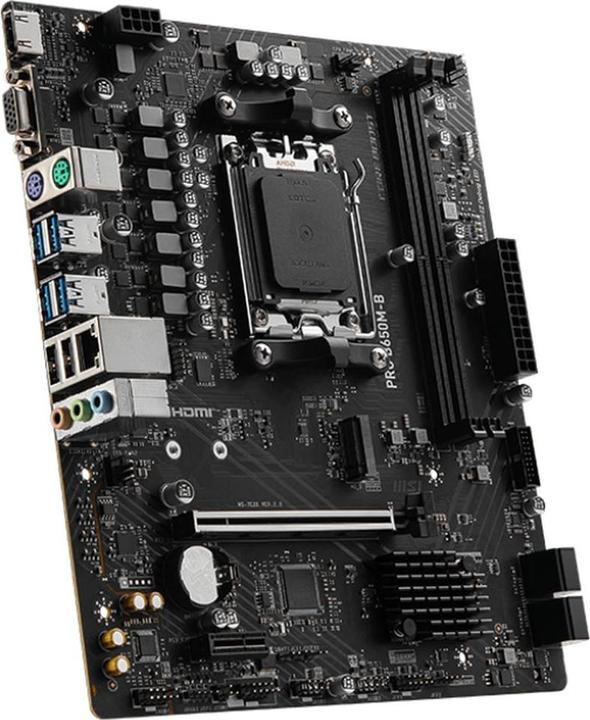

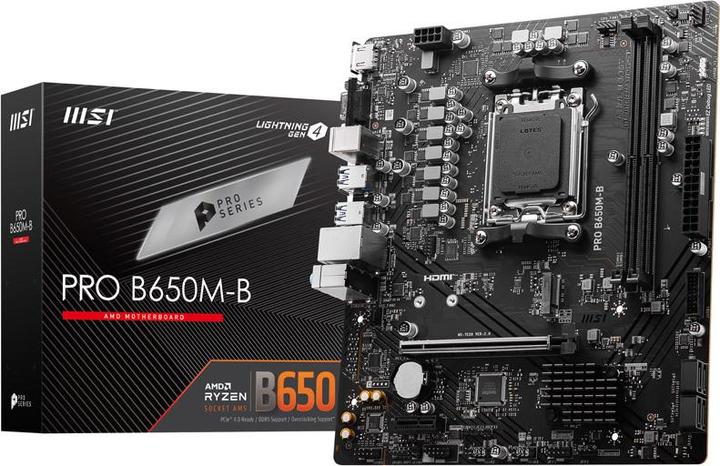

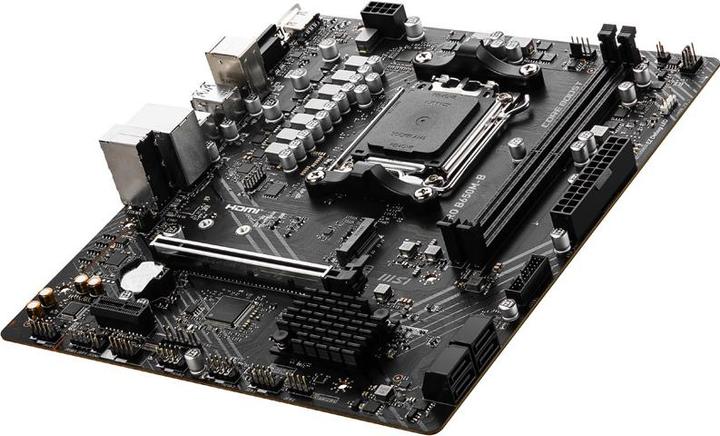

MSI PRO B650M-B

AM5, AMD B650, mATX
Ratings
BrandMore from MSI
Currently out of stock
Free shipping starting at 50.–

Product details

The MSI PRO B650M-B motherboard is based on the AMD B650 chipset and supports AMD processors for the AM5 socket. It features two DDR5 slots for up to 96 gigabytes of RAM. Additional features of the PRO B650M-B include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. Furthermore, the MSI B650M-P offers 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, an M.2 slot, and a variety of USB interfaces.

Key specifications

Mainboard features
Front panel audio connector
Processor family
Ryzen 9 7th Gen
Number of memory modules (RAM)
2x
Memory type
DDR5 RAM
Internal connection options
S-ATA III (4x)

General information

Item number
40818774
Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7E28-005R
Release date
20.2.2024

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD B650
Mainboard features
Front panel audio connector
Operating system compatibility
Windows
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2x
Max. memory (RAM)
128 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
6800 MHz
Supported memory speed
5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz
Memory type
DDR5 RAM

Graphics properties

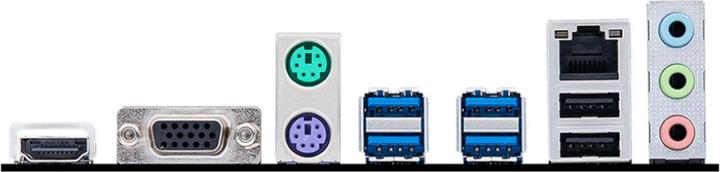

Video connections
D-Sub (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125-BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Headphone output (1x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x)
PCI express version (max.)
3
Number of fan connector
3

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (1x)

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Scope of delivery

Scope of delivery
1 x Serial ATA cable

Product dimensions

Length
243.84 mm
Width
215 mm
Height
26 mm
Weight
970 g

Package dimensions

Length
26 cm
Width
26 cm
Height
6 cm
Weight
850 g
