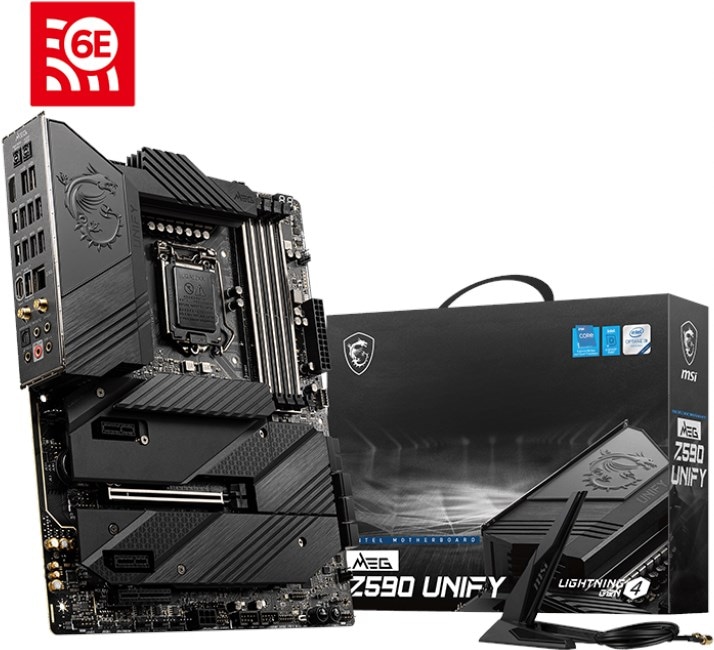

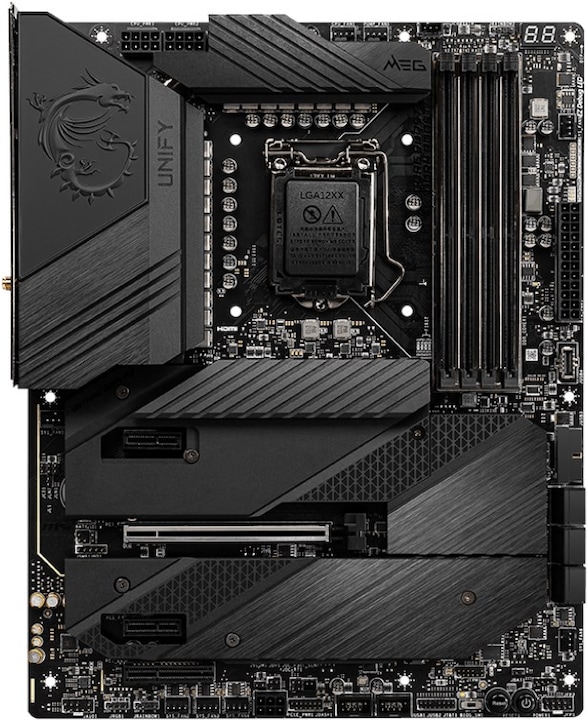

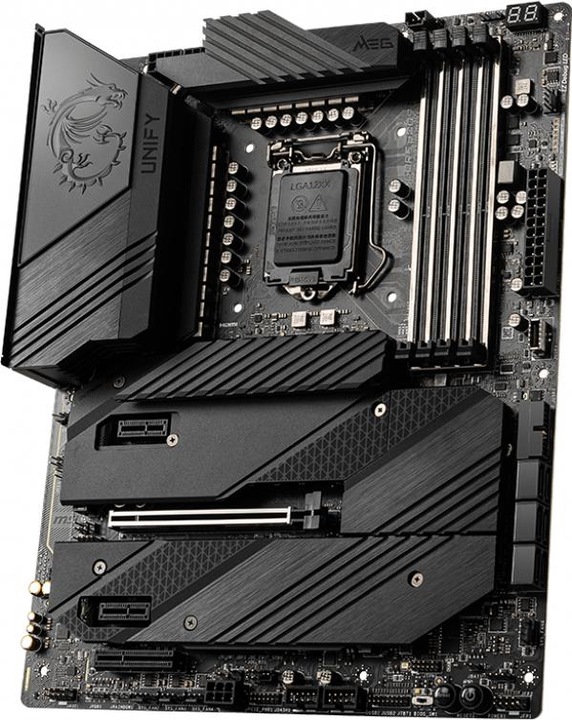

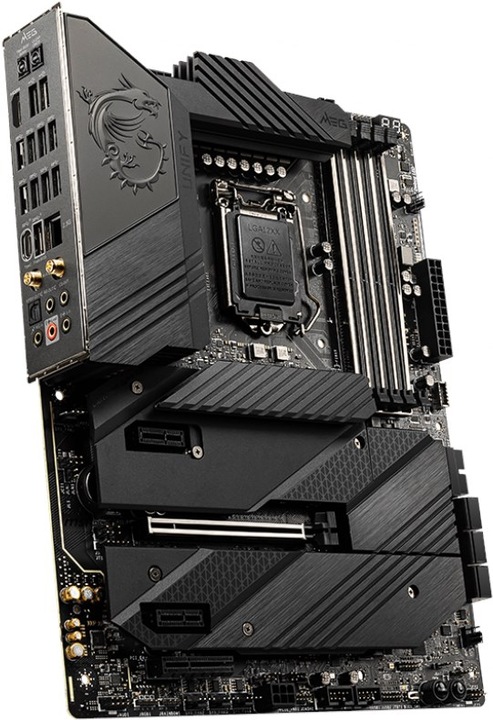

MSI MEG Z590 UNIFY Motherboard Intel Z590 LGA 1200

LGA 1200, Intel Z590, ATX
Currently out of stock

Product details

The MSI MEG Z590 UNIFY motherboard is a powerful and versatile platform designed for the 10th and 11th generation Intel Core processors. With the LGA 1200 socket and Intel Z590 chipset, it provides an excellent foundation for demanding applications and gaming. The ATX format allows for easy integration into various cases while ensuring optimal cooling and expandability. The motherboard supports up to 128 GB of DDR4 RAM and offers numerous connectivity options, including multiple USB ports, SATA interfaces, and M.2 slots for fast storage. The integrated 2.5 Gigabit LAN connection, along with Wi-Fi 6 and Bluetooth, ensures a fast and reliable network connection. With HD Audio and support for multi-GPU technologies, the MEG Z590 UNIFY is ideal for users seeking high performance and flexibility in their system.

  • Supports up to 128 GB of DDR4 RAM with 4 DIMM slots

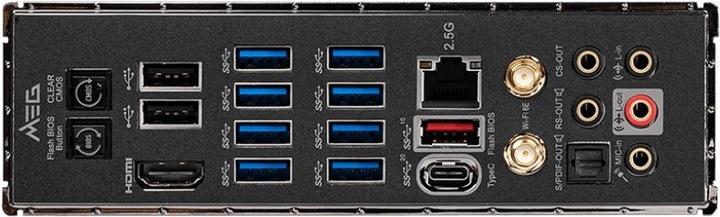

  • Integrated 2.5 Gigabit Ethernet and Wi-Fi 6 for fast network connections
  • Variety of USB ports, including USB-C Gen 2x2
  • Compatible with Intel Core i3, i5, i7, i9, as well as Celeron and Pentium processors
  • HD Audio with 8-channel support for an immersive sound experience.

Key specifications

Processor family
CeleronCore i3Core i5
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (6x)
Wireless transmission
BluetoothWi-Fi
Mainboard features
Clear CMOS Button
Item number
17316847

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
MEG Z590 UNIFY
Release date
9.7.2021

Motherboard properties

Form factor
ATX
Socket
LGA 1200
Chipset
Intel Z590
Mainboard features
Clear CMOS Button
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
BluetoothWi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
CeleronCore i3Core i5

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Supported memory speed
2133 MHz2400 MHz2666 MHz2933 MHz3000 MHz3200 MHz4300 MHz4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x)
Video connection version
HDMI 2.0b
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I225-V
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC4080
Audio channel
7.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (6x)
Expansion slot
PCI Express x1 (1x)
Number of fan connector
8

Power supply

Power connectors
24-pin ATX

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
4 x Serial ATA cable

Product dimensions

Length
244 mm
Width
305 mm
Height
244 mm
Weight
1200 g

Package dimensions

Length
37 cm
Width
29 cm
Height
9 cm
Weight
2.82 kg
