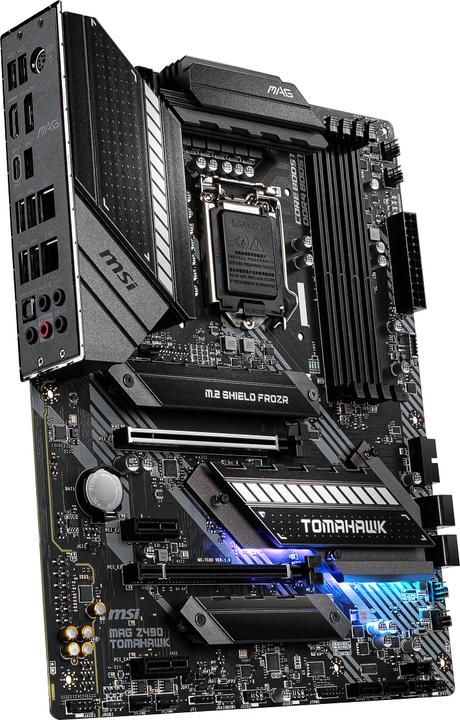

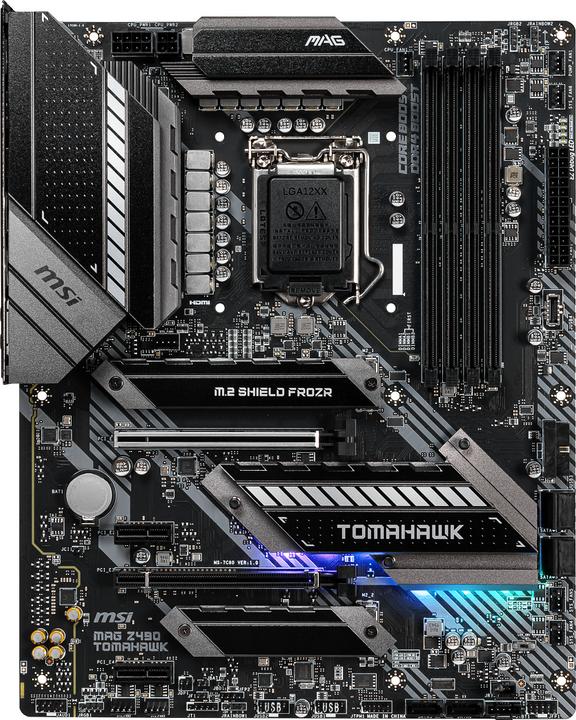

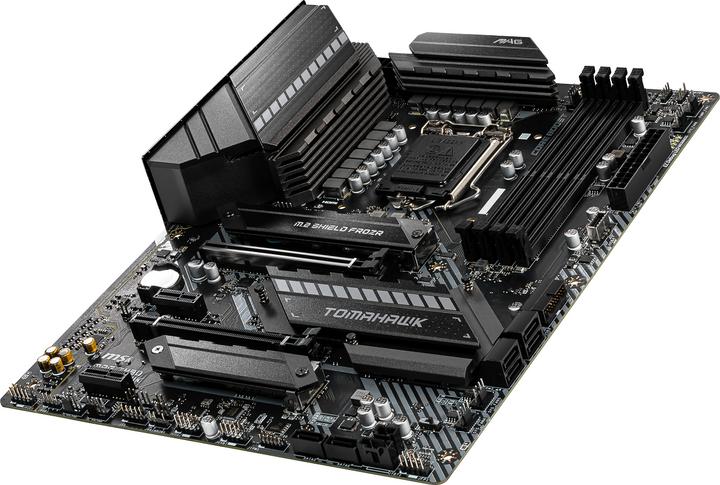

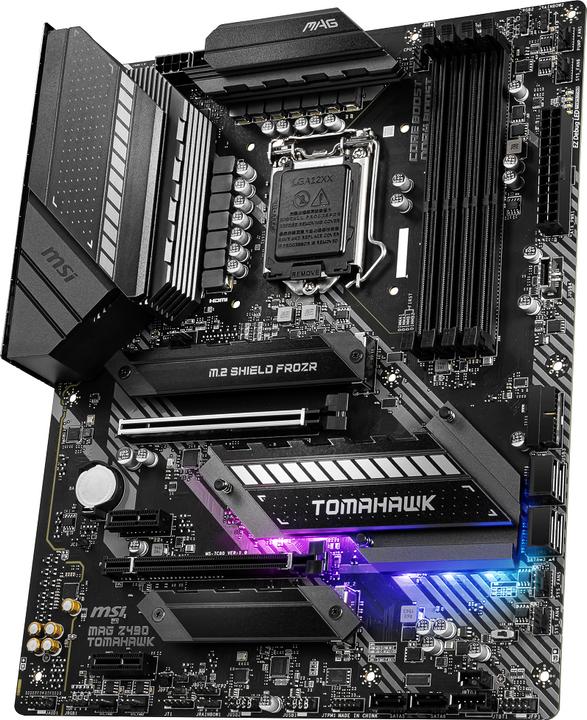

MSI MAG Z490 Tomahawk

LGA 1200, Intel Z490, ATX
42Ratings
BrandMore from MSI
Currently out of stock

Product details

The high MSI quality standard applies to the entry-level segment just as it does to enthusiast products. The design of the MAG motherboards is kept simple and robust. It provides a unique balance of high quality, reliability, performance, and design.

Key specifications

Processor family
Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 SATA (2x), S-ATA III (6x)
Mainboard features
Front panel audio connector
Item number
13092747

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7C80-004R
Release date
20.5.2020
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
LGA 1200
Chipset
Intel Z490
Mainboard features
Front panel audio connector
Operating system compatibility
Windows 10

Processor

Processor family
Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-2933
Max. RAM OC
4800 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4000 MHz, 4400 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

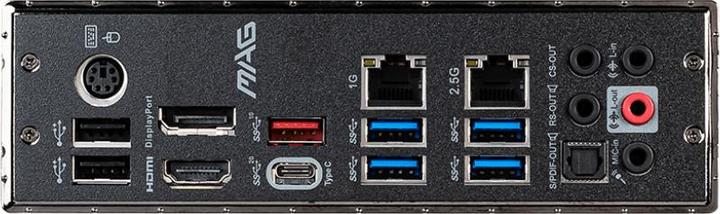

Video connections
DisplayPort (1x), HDMI (1x)
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I219-V, Realtek RTL8125-CG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC1200
Audio channel
7.1 Channel
Audio Connections
Microphone

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 SATA (2x), S-ATA III (6x)
Expansion slot
PCI Express x16 (2x)

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (1x)

Power supply

Power connectors
24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
2440 mm
Width
305 mm
Height
244 mm

Package dimensions

Length
34.20 cm
Width
27.30 cm
Height
8.80 cm
Weight
1.86 kg
