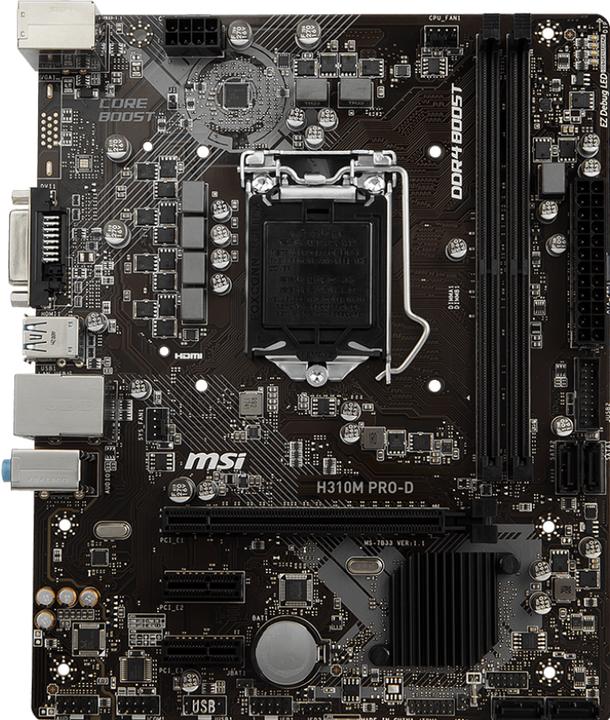

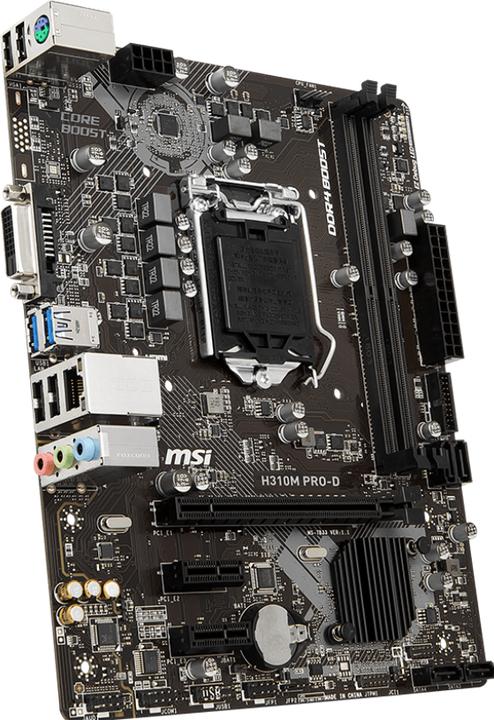

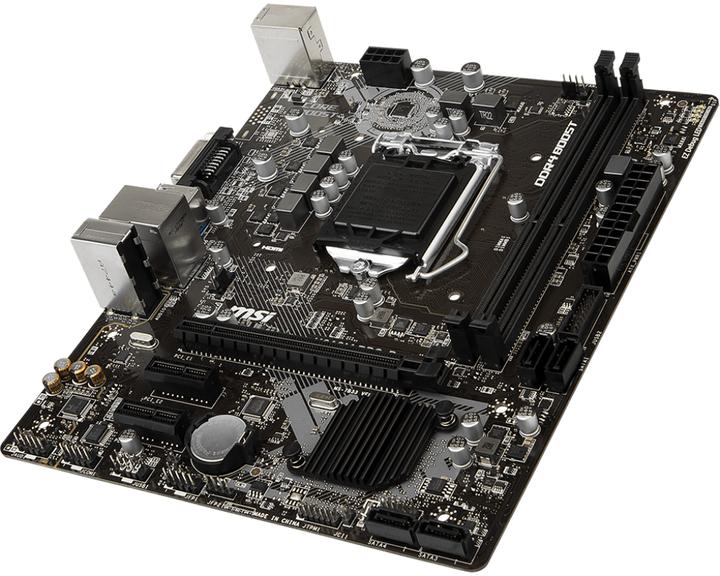

The MSI H310M PRO-D is a powerful Micro ATX motherboard designed for use with 8th generation Intel processors. It supports a variety of processors, including Intel® Celeron®, Core™ i3, i5, and i7, providing a reliable platform for demanding applications and gaming. With support for DDR4 SDRAM and speeds of up to 2666 MHz, it allows for efficient memory usage. The motherboard is equipped with multiple SATA III ports, enabling flexible storage expansion with SSDs and hard drives. The integrated Gigabit Ethernet interface ensures fast network connections, while the carefully designed cooling solution guarantees stable performance. The MSI H310M PRO-D is thus an excellent choice for content creators and professional users who value quality and performance.
Processor family | Celeron, Core i3 8th Gen, Core i5 8th Gen, Core i7 8th Gen, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | S-ATA III (4x) |
Mainboard features | Front panel audio connector |
Item number | 8618512 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7B33-003R |
Release date | 19.3.2018 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1151 |
Chipset | Intel H310 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3 8th Gen, Core i5 8th Gen, Core i7 8th Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2666 |
Max. RAM OC | 2666 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

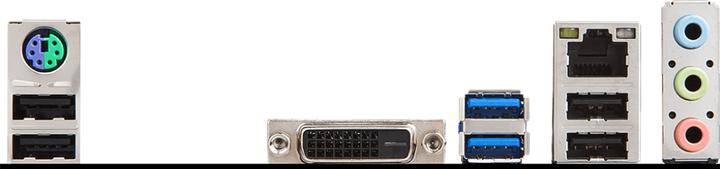

Video connections | DVI-D (Dual Link) (1x) |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x1 (2x) |
Number of fan connector | 2 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 226 mm |
Width | 185 mm |
Height | 185 mm |
