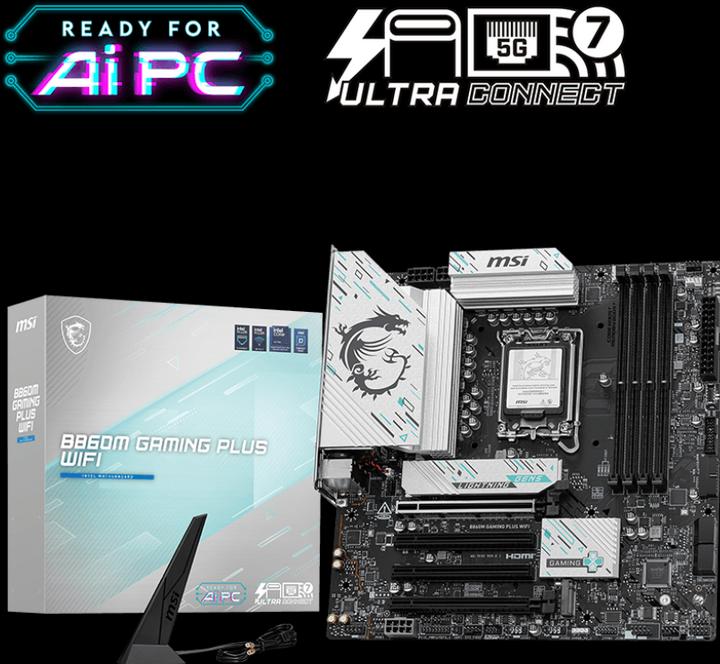

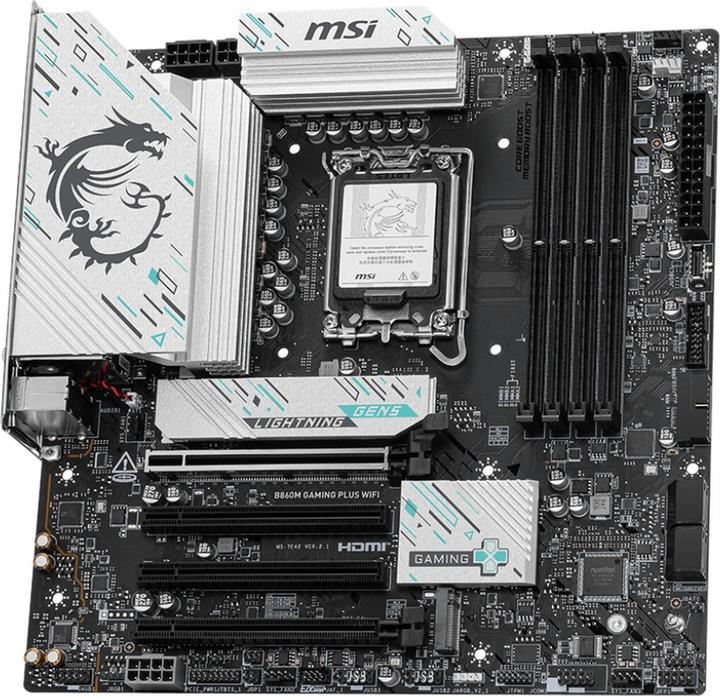

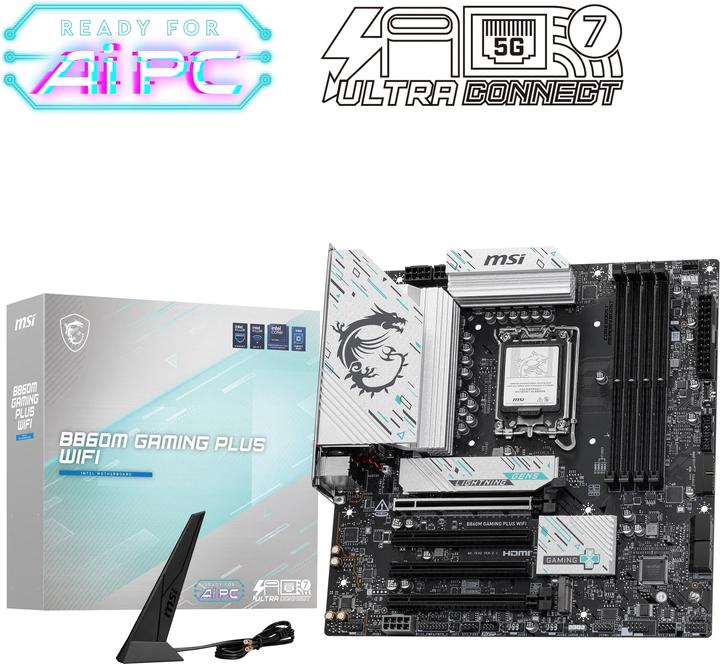

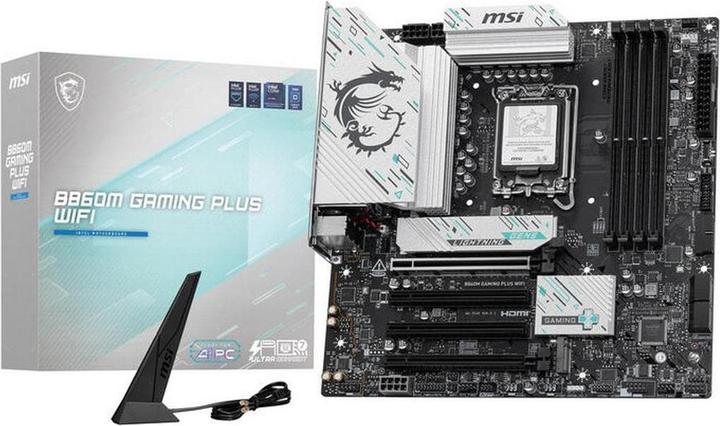

MSI B860M GAMING PLUS WIFI LGA1851 MB
Socket S1, Intel B860, mATXOnly 2 items in stock at third-party supplier
Product details
The MSI B860M Gaming Plus WiFi is a powerful motherboard designed for demanding gamers and power users. It offers all the necessary performance and features for the latest Intel Core processors. Enjoy fast and reliable connectivity with Intel Killer E5000B 5Gbps LAN and Intel Killer BE1750K Wi-Fi 7. The B860M Gaming Plus WiFi ensures a seamless gaming experience with support for Lightning Gen 5 and the latest DDR5 memory. The EZ M.2 Shield Frozr keeps your M.2 drives cool even under heavy loads. Experience incredible audio quality with Audio Boost technology.
Features:
Thunderbolt 4 Port: Thunderbolt 4 brings Thunderbolt to USB-C with real speeds of 40 Gb/s, 8K display support, device daisy chaining, and USB 4.0 compatibility.
5G Networking Solution: Premium 5G LAN for a better online experience.
Wi-Fi 7: The latest wireless solution with a new 320 MHz channel, achieving maximum transfer speeds of 5.8 Gbps.
Lightning Gen 5: The latest PCIe 5.0 solution providing up to 128 GB/s bandwidth for maximum transfer speeds.
Latest DDR5 Memory: Significant improvement in DDR performance with the latest DDR5 memory and MSI Memory Boost technology.
Three M.2 Slots: The motherboard features three M.2 slots, one of which is a PCIe 5.0 solution, enhanced with M.2 Shield Frozr.
EZ M.2 Shield Frozr: New tool-less design for easier installation or removal of M.2 drives.
EZ PCIe Clip: Allows for easy removal of the graphics card by pressing the latch with a finger, even in tight case areas.
Pre-installed I/O Shield: Better EMI shielding and easier installation.
Audio Boost: Treat your ears to studio-quality audio transmission that provides the most immersive sound experience.
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | RGB header |
Item number | 53472966 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E42-003R |
Release date | 3.12.2024 |
Form factor | Micro ATX (mATX) |
Socket | Socket S1 |
Chipset | Intel B860 |
Mainboard features | RGB header |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Supported memory speed | 4800 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | HDMI Type A |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Killer NIC |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 1 |

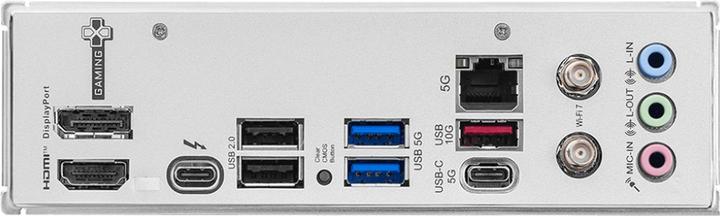

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.1 Gen 1 (2x), USB-C 3.1 Gen 1 (1x) |
Country of origin | China, Taiwan |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Length | 243.80 mm |
Width | 243.80 mm |
Height | 243.80 mm |
Weight | 1450 g |
