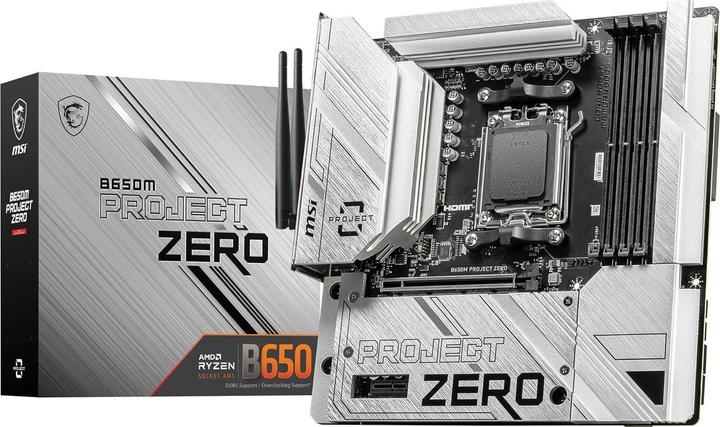

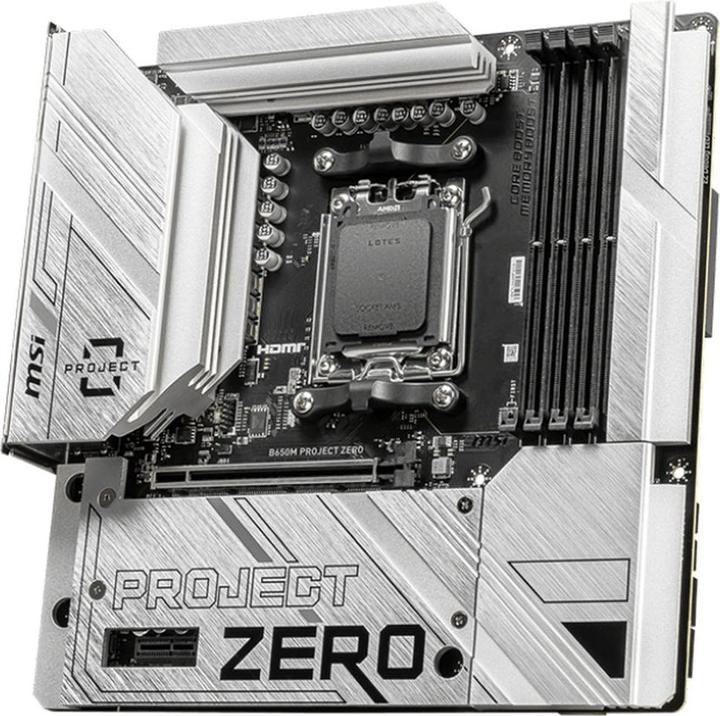

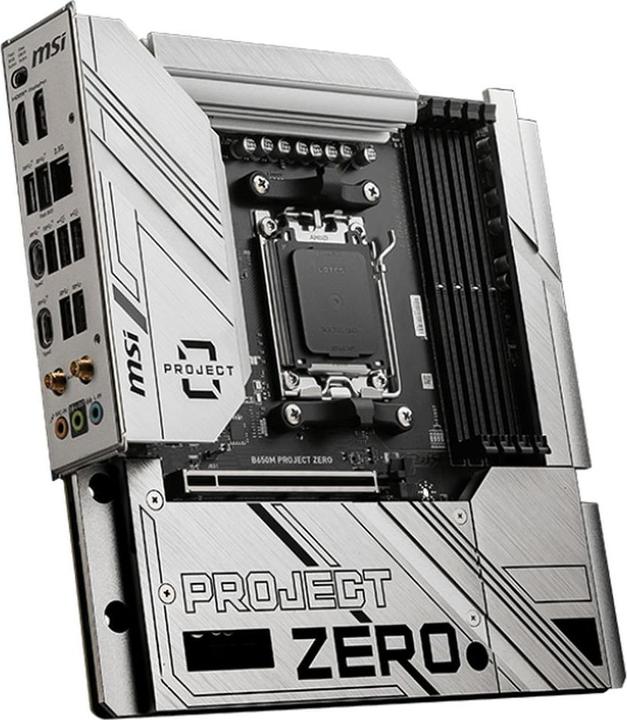

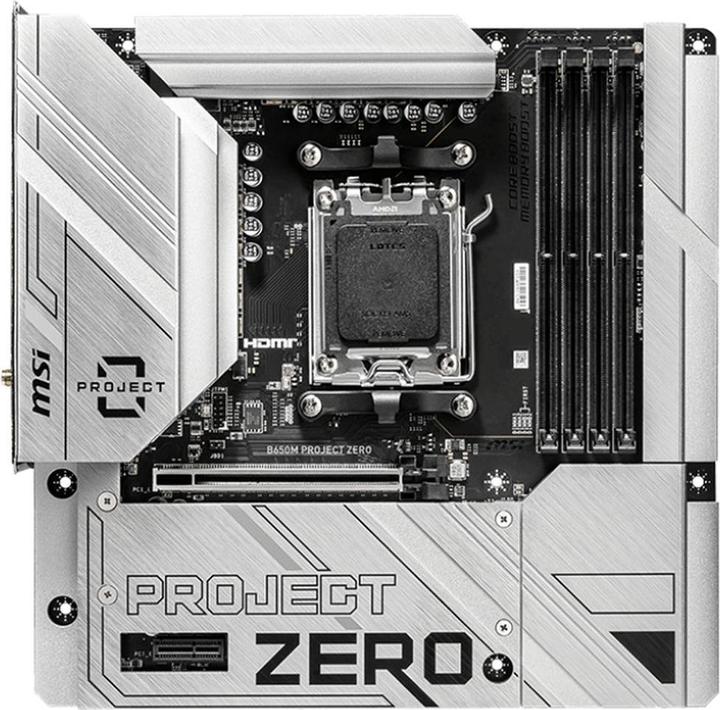

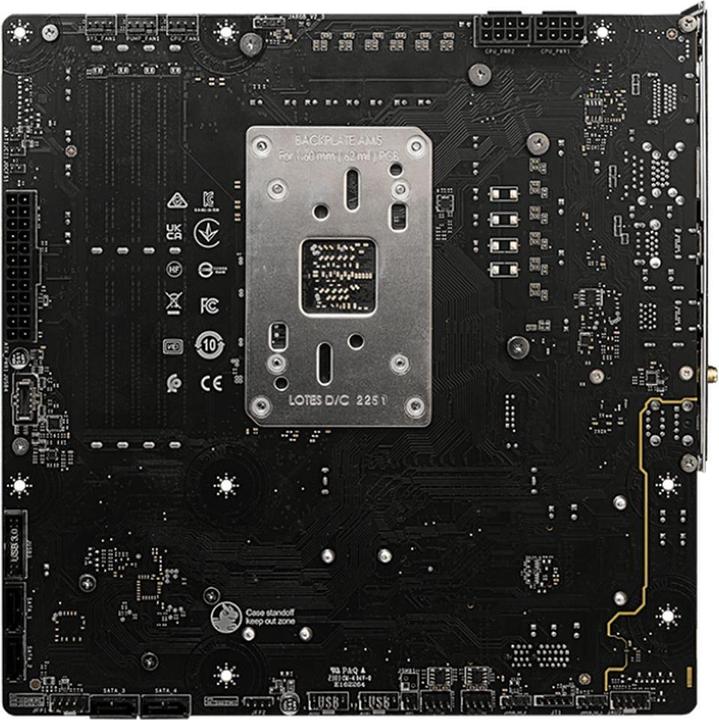

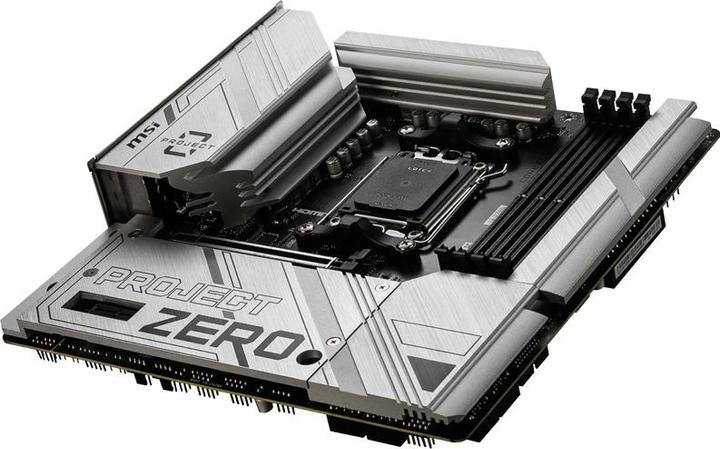

MSI B650M PROJECT ZERO (B650,AM5,mATX,DDR5)
AM5, AMD B650, mATXProduct details
The MSI B650M Project Zero is an advanced motherboard specifically designed for AMD processors, supporting the AM5 socket. It offers impressive support for DDR5 SDRAM with a maximum capacity of 128 GB and dual-channel memory slots. The motherboard is designed in a micro ATX form factor and is based on the AMD B650 chipset, making it an ideal choice for compact and powerful PC builds. With a variety of storage drive interfaces, including M.2 and PCI Express, as well as support for HDDs and SSDs, it provides flexible storage options. Additionally, it features comprehensive connectivity with multiple USB ports, 2.5 Gigabit Ethernet, and Wi-Fi 6E for fast network connections.
Highlights:
- Supports the latest AMD Ryzen 7000/8000 Series processors
- Integrated Wi-Fi 6E and Bluetooth 5.3 for enhanced wireless connectivity
- Versatile storage options with 4 SATA-600 ports and 2 M.2 slots.
Processor family | Ryzen 3 8th Gen, Ryzen 5 8th Gen, Ryzen 7 8th Gen, Ryzen 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, MSI PROJECT ZERO, Trusted Platform Module |
Item number | 40930596 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E09-003R |
Release date | 23.5.2024 |
Sales rank in Category Motherboards | 179 of 981 |
External links |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button, MSI PROJECT ZERO, Trusted Platform Module |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 3 8th Gen, Ryzen 5 8th Gen, Ryzen 7 8th Gen, Ryzen 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7600 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

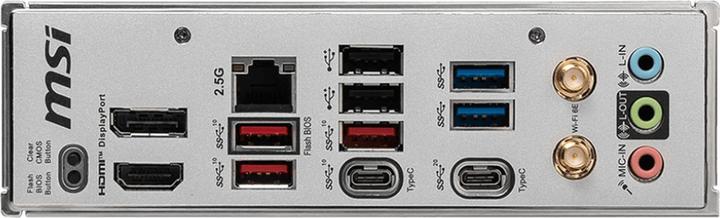

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 10, 5 |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 2 (3x) |
Country of origin | Taiwan |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA cable |
Length | 243.84 mm |
Width | 243.84 mm |
Weight | 500 g |
Length | 28 cm |
Width | 27 cm |
Height | 8 cm |
Weight | 1.92 kg |
