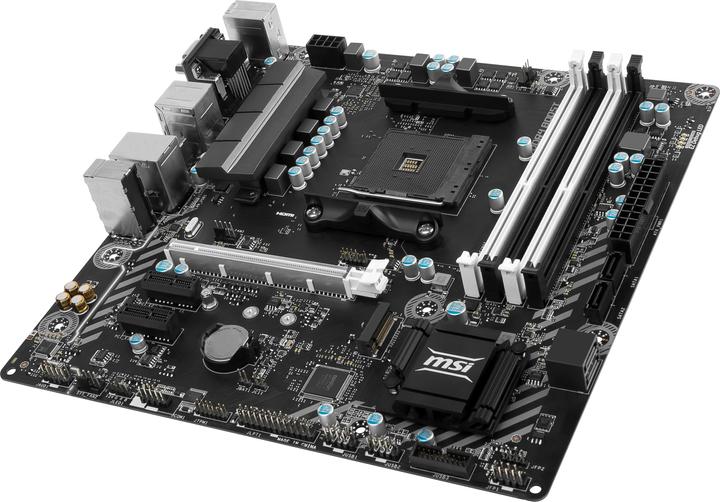

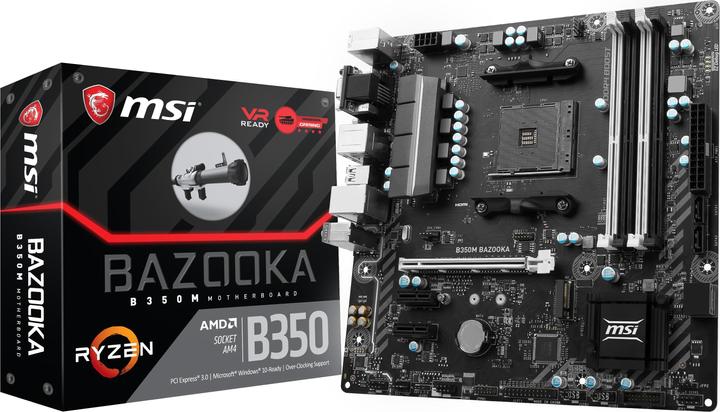

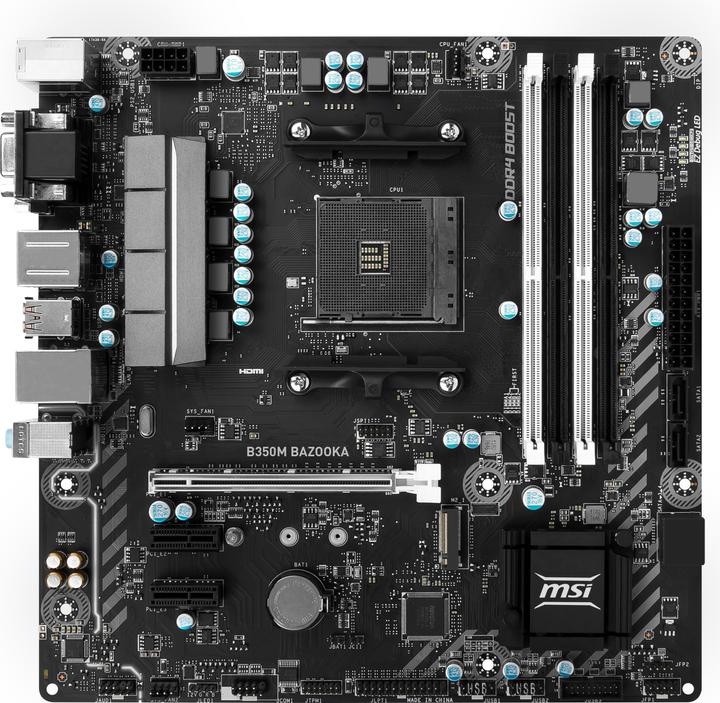

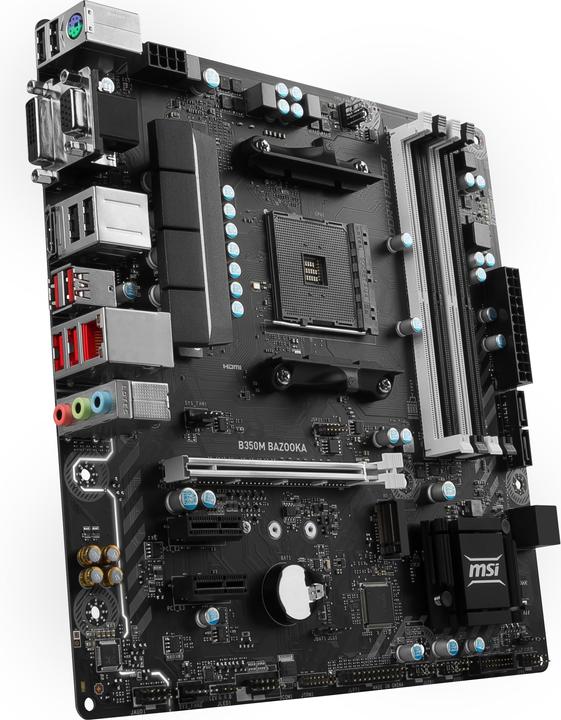

MSI B350M BAZOOKA MATX AM4 (AM4, AMD B350, mATX) Actual product image
CHF 86.50

MSI B350M BAZOOKA MATX AM4 (AM4, AMD B350, mATX)

Specifications

Click 'show more' to display specifications.

General information

Manufacturer MSI
Product type Motherboards
i

Motherboards

In personal computers, a motherboard is the central printed circuit board (PCB) in many modern computers and holds many of the crucial components of the system, providing connectors for other peripherals. The motherboard is sometimes alternatively known as the mainboard, system board, or, on Apple computers, the logic board. It is also sometimes casually shortened to mobo.

More information...

Item number10120325
Manufacturer no.7A38-001R
Release date10.04.2017

Motherboard properties

Form factor
mATX
i

mATX

microATX, also known as µATX (sometimes transliterated as mATX or uATX on Internet forums) is a standard for motherboards that was introduced in December 1997. The maximum size of a microATX motherboard is 244 mm × 244 mm (9.6 in × 9.6 in), but some microATX boards can be as small as 171.45 mm × 171.45 mm (6.75 in × 6.75 in). The standard ATX size is 25% longer, at 305 mm × 244 mm (12 in × 9.6 in).

More information...

CPU socket
i

CPU socket

A CPU socket or CPU slot is a mechanical component that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the CPU to be replaced without soldering.
Common sockets have retention clips that apply a constant force, which must be overcome when a device is inserted. For chips with a large number of pins, either zero-insertion force (ZIF) sockets or land grid array (LGA) sockets are used instead. These designs apply a compression force once either a handle (for ZIF type) or a surface plate (LGA type) is put into place. This provides superior mechanical retention while avoiding the risk of bending pins when inserting the chip into the socket.

More information...

AM4
Chipset
AMD B350
UEFI BIOS
Yes

Memory

Max. memory
64 GB
Memory chip
DDR4-3200
Memory type
DDR4-RAM

Mass storage controller 1

S-ATA III
i

S-ATA III

Serial ATA (SATA) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA 3 can transfer up to 6 Gbit/s.

More information...

4 x

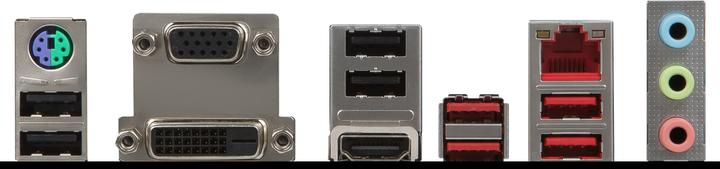

Graphic connectors

DVI-D
1 x
VGA
i

VGA

A VGA connector as it is commonly known (other names include RGB connector, D-sub 15, mini sub D15 and mini D15) is a three-row 15 pin DE-15. There are four versions: original and DDC2 pinouts, the far older and less flexible DE-9 connector, and a Mini-VGA used for laptops.
The common 15-pin VGA connector found on most video cards, computer monitors, and other devices, is almost universally called "HD-15". HD stands for "high-density", which distinguishes it from connectors having the same form factor but only 2 rows of pins. However, this connector is often incorrectly referred to as a DB-15 or HDB-15.[citation needed]
"VGA connectors" and their associated cabling are almost always used solely to carry analog component RGBHV (red - green - blue - horizontal sync - vertical sync) video signals along with DDC2 digital clock and data.
Where size is a constraint (such as laptops) a mini-VGA port can sometimes be found in place of the full-sized VGA connector.

1 x
HDMI type A receptacle
i

HDMI type A receptacle

The High-Definition Multimedia Interface (HDMI) is a compact audio/video connector interface for transmitting uncompressed digital streams. It represents a digital alternative to consumer analog standards such as Radio Frequency (RF) coaxial cable, composite video, S-Video, SCART, component video, D-Terminal, and VGA.

1 x

Network

RJ45/LAN port
i

RJ45/LAN port

Network connection allows connection to an internal or external network.

More information...

1 x

Product dimensions

Length
244 mm
Width
244 mm

Please click directly on the incorrect data to access the registration form.

Alternatively, you can register a generic error report (wrong picture, unsuitable accessories, etc.)

Cancel

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Correction suggestion

Comment

Report incorrect data here. The specifications may also include unverified machine translations. Thank you for reporting translation errors to translations@digitecgalaxus.ch.

Returns and warranty

Dead on arrival (DOA) 14 Days Bring-in
Warranty 36 month Bring-in

30-day right of return

Unfortunately, we cannot accept a product if it is damaged, incomplete or missing its original packaging.
