MSI B350I PRO AC - Motherboard - Mini-ITX - Socket AM4 - AMD B350 - USB 3.1 Gen 1, USB 3.1 Gen 2 - B

AM4, AMD B350, Mini-ITX
Ratings
BrandMore from MSI
Test reportsVery good based on 1 test
Currently out of stock

Product details

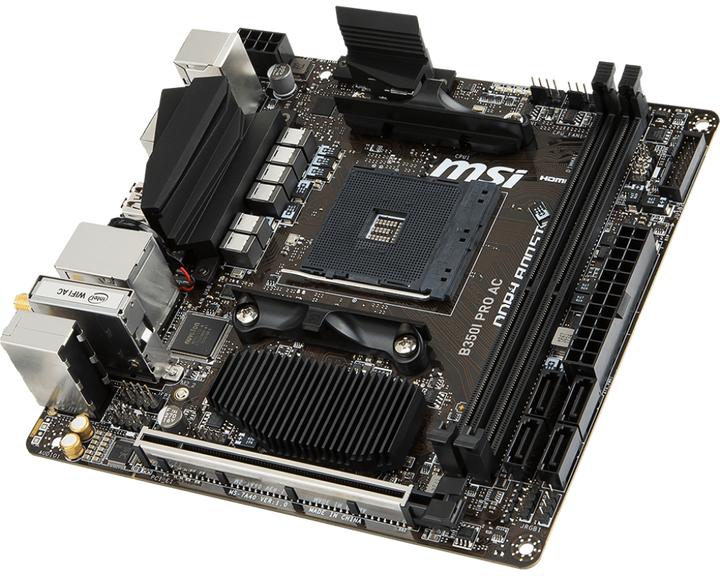

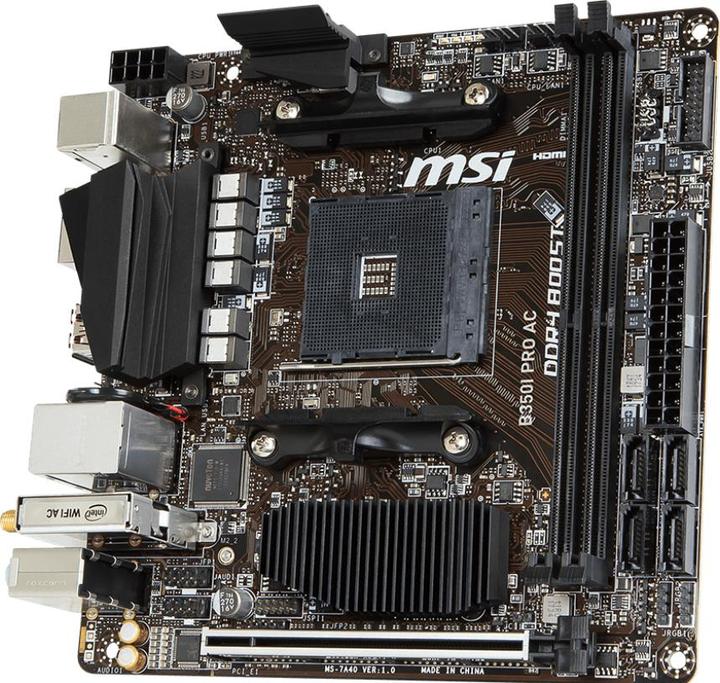

The MSI B350I PRO AC motherboard is a powerful and compact solution for PC building projects designed for the AMD processor family. With the AM4 processor socket, it supports a wide range of AMD processors, including the Ryzen 2000 and 3000 series, as well as AMD A and Athlon™ X4. The Mini-ITX format allows for space-saving integration into compact cases, while support for up to 32 GB of DDR4 RAM ensures high performance in multitasking and demanding applications. The motherboard also offers advanced networking features with 10 Gigabit Ethernet and Wi-Fi standards compliant with Wi-Fi 5 (802.11ac), providing a fast and reliable connection. With additional features such as a Clear CMOS button and a 7.1-channel audio output, the MSI B350I PRO AC is a versatile choice for modern PC users.

  • Supports AMD Ryzen 2000 and 3000 Series processors
  • Maximum RAM capacity of 32 GB DDR4 SDRAM
  • Integrated 10 Gigabit Ethernet and Wi-Fi 5 (802.11ac)
  • Mini-ITX form factor for compact builds
  • RAID support for levels 0, 1, and 10.

Key specifications

Processor family
AMD 2000 Series
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button
Item number
46454168

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7A40-001R
Release date
11.6.2024

Motherboard properties

Form factor
Mini-ITX
Socket
AM4
Chipset
AMD B350
Mainboard features
Clear CMOS Button
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 5 / 802.11ac

Processor

Processor family
AMD 2000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
32 GB
Memory chip
DDR4 RAM
Supported memory speed
1866 MHz, 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz
Memory type
DDR4-RAM

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek 8111H
Max. port speed
10 Gbit/s

Audio

Audio channel
7.1 Channel

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Expansion slot
PCI Express x16 (Gen 3) (1x)

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 1 (1x)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
170 mm
Width
170 mm
