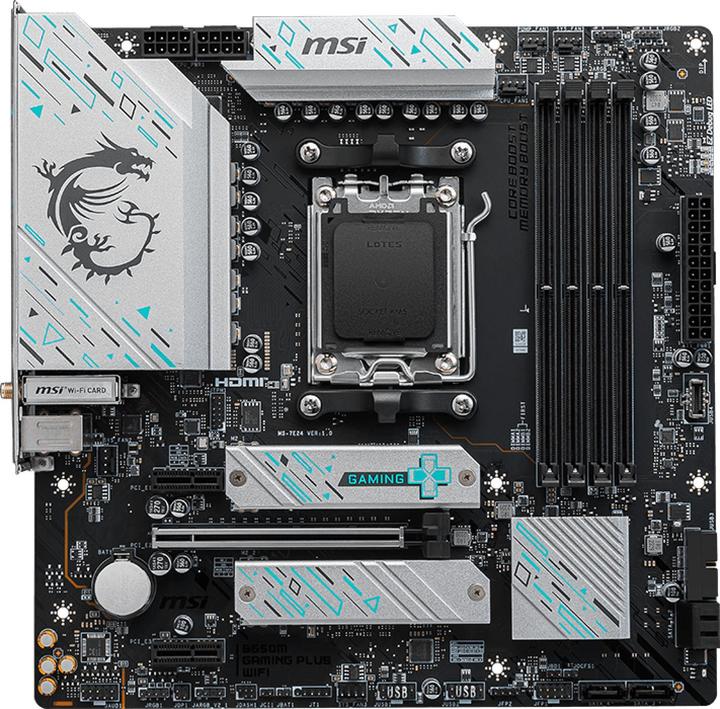

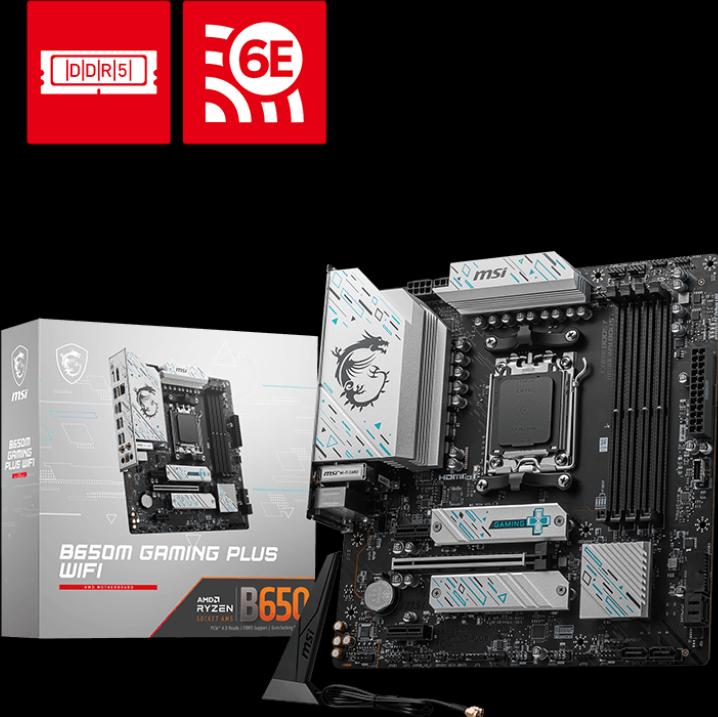

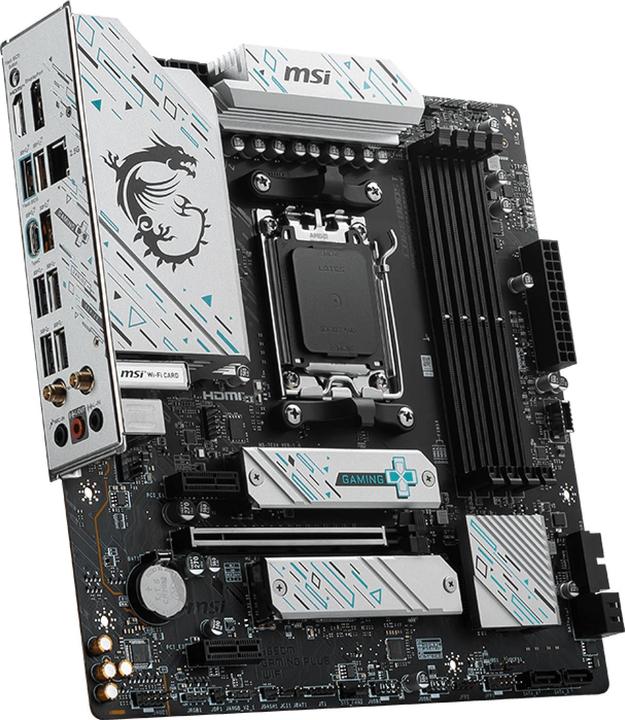

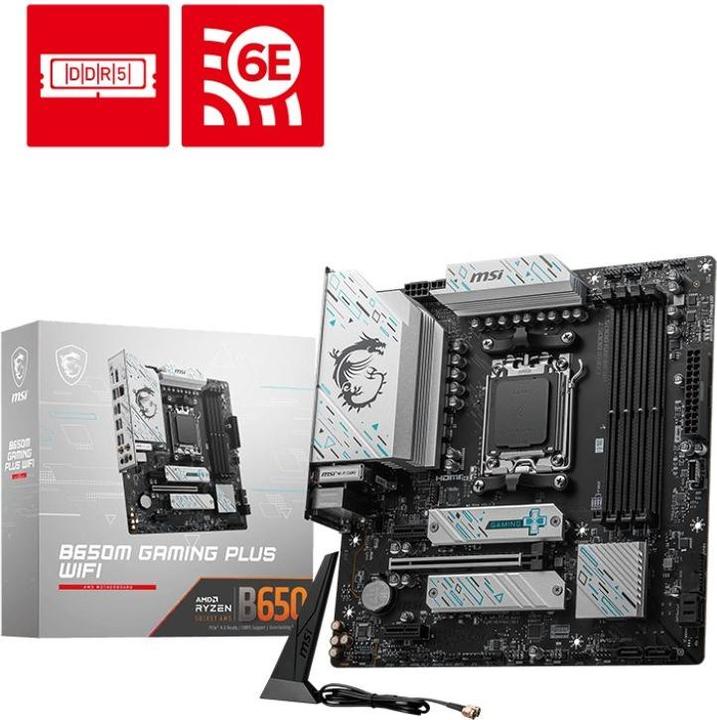

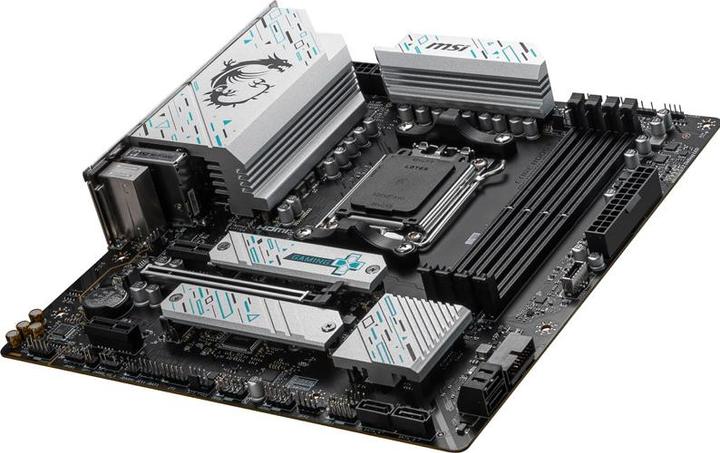

The MSI B650M Gaming Plus WiFi is based on the AMD B650 chipset and supports AMD processors for the AM5 socket. It features four DDR5 slots for up to 256 GB of RAM. Additional specifications include one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. Furthermore, the MSI B650M Gaming Plus WiFi offers 8-channel audio, a 2.5 Gigabit LAN interface, WiFi 6E, Bluetooth, four SATA3 ports, two M.2 slots, and a variety of USB interfaces.
Processor family | Ryzen 3 8th Gen, Ryzen 5 8th Gen, Ryzen 7 8th Gen, Ryzen 7th Gen, Ryzen 9 8th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, Temperature sensor connections |
Item number | 42366110 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E24-001R |
Release date | 20.2.2024 |
Sales rank in Category Motherboards | 45 of 1041 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Front panel audio connector, Temperature sensor connections |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 3 8th Gen, Ryzen 5 8th Gen, Ryzen 7 8th Gen, Ryzen 7th Gen, Ryzen 9 8th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 |
Max. RAM OC | 7200 MHz |
Supported memory speed | 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

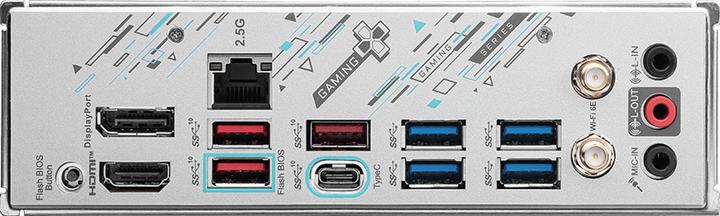

Video connections | DisplayPort, HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (3x), USB-C 3.2 Gen 2x2 (1x) |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA |
Length | 243.84 mm |
Width | 243.84 mm |
Height | 74 mm |
Weight | 1585 g |
Length | 29 cm |
Width | 27 cm |
Height | 7 cm |
Weight | 1.57 kg |
