Moxa MGATE 5114-T - 1-port Modbus IEC101 to IEC104 gateway, -40 to 75C operating temperature
Product details
Introduction

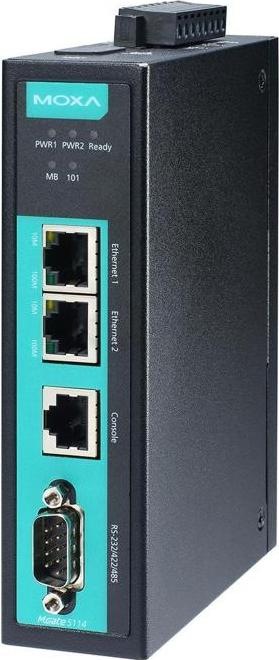

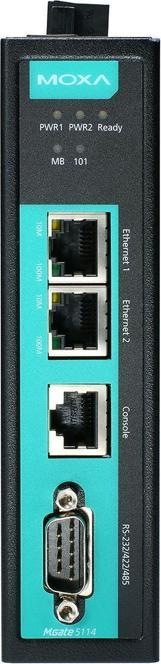

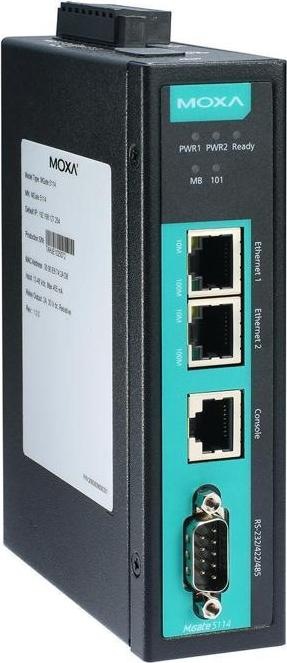

The MGate 5114 is an industrial Ethernet gateway featuring 2 Ethernet ports and 1 serial RS-232/422/485 port for Modbus RTU/ASCII/TCP, IEC 60870-5-101, and IEC 60870-5-104 network communication. By integrating common power supply protocols, the MGate 5114 provides the necessary flexibility to meet the various conditions encountered by field devices using different communication protocols to connect with a SCADA system for power management. To integrate Modbus or IEC 60870-5-101 devices into an IEC 60870-5-104 network, use the MGate 5114 as a Modbus Master/Client or IEC 60870-5-101 Master to collect data and exchange it with IEC 60870-5-104 systems.
Easy Configuration via Web Console
The MGate 5114 series comes with a pictorial quick start guide that simplifies configuration. With Quick Setup, you can easily access the protocol conversion modes and complete the configuration in just a few steps.
Modbus RTU/ASCII/TCP Protocol Traffic Monitor
The MGate 5114 series gateways support Modbus RTU/ASCII/TCP, IEC 60870-5-101, and IEC 60870-5-104 Protocol Traffic Monitor for easy troubleshooting, especially during the installation phase. It is worth noting that the traffic protocols can be displayed using the popular troubleshooting tool. This feature allows for easy analysis of traffic to identify the cause of a problem.
Maintenance Features
MGate 5114 gateways support a system logging function that records events in the MGate; users can easily check the log data remotely via the web console. The gateways also support status monitoring and fault protection features. The status monitoring function alerts a PSCADA system when a device is disconnected or unresponsive.
