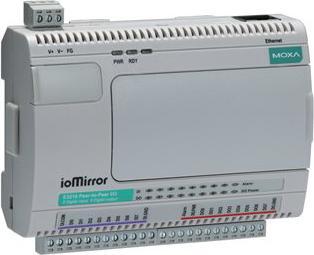

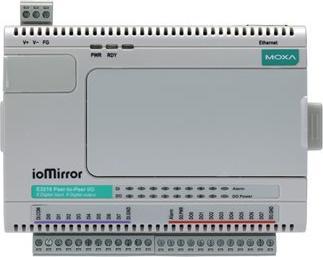

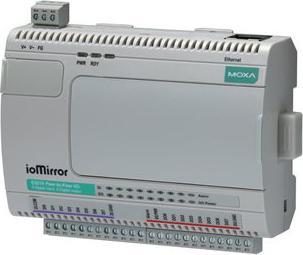

Moxa ioMirror E3210

The ioMirror E3200 series, designed as a cable replacement solution for connecting remote digital input signals with output signals over an IP network, offers 8 digital input channels, 8 digital output channels, and a 10/100M Ethernet interface. Up to 8 pairs of digital input and output signals can be exchanged over Ethernet with another device in the ioMirror E3200 series or sent to a local PLC or DCS control system. Through a local network, the ioMirror can achieve low signal latency (typically less than 20 ms). With the ioMirror, remote sensors can be connected to local controllers or display boards via copper, fiber optic, or wireless Ethernet infrastructures, transmitting signals over virtually unlimited distances without noise issues.

The ioMirror E3200 series can split an input signal into two digital output channels at two different IP addresses. Eight tank level signals can be monitored simultaneously on 16 different display boards.

The ioMirror E3200 series features a 24 VDC alarm output channel that can activate a connected buzzer or LED display when the connection fails. Additionally, both ioMirror modules can send messages to the ioEventLog software to ensure that at least one of the alerts reaches the ioEventLog software.

Included: MOXA ioMirror E3210.
