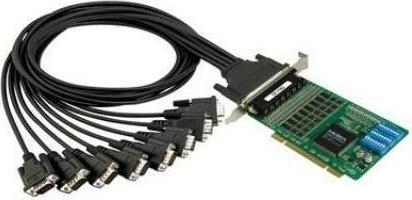

Moxa CP-118U - 8-port RS-232422485 Universal PCI serial board, 0 to 55C operating temperature

8-port RS-232/422/485 Universal PCI serial board, 0 to 55°C operating temperature

Serial Interface

Comm. Controller: MU860 (16C550C compatible)
Bus: 32-bit Universal PCI
Connector: DB62 female
FIFO: 128 bytes
Max. No. of Boards per PC: 8
No. of Ports: 8
Serial Standards: RS-232, RS-422, RS-485
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Serial Software Features

Windows Drivers: DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers: Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

Power Parameters

Input Current: 20 mA @ 5 VDC

Physical Characteristics

Dimensions: 82 x 135 mm (3.22 x 5.31 in)

LED Interface

LED Indicators: Built-in Tx, Rx LEDs for each port

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

Declaration

Green Product: RoHS, CRoHS, WEEE

MTBF

Time: 1,073,385 hrs
Standards: Telcordia SR332.
