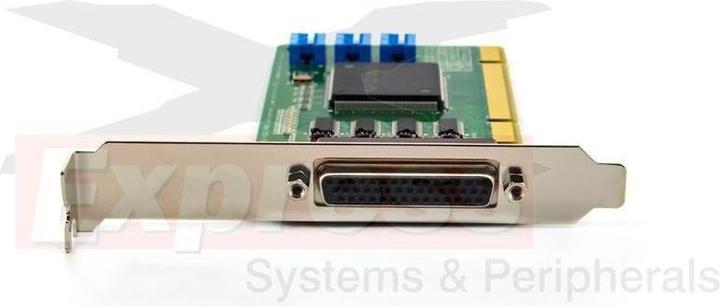

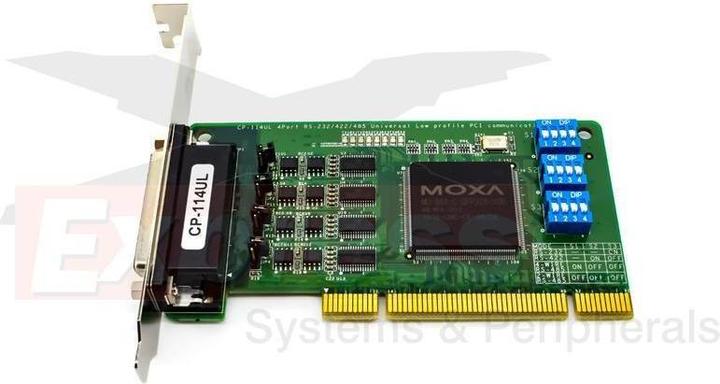

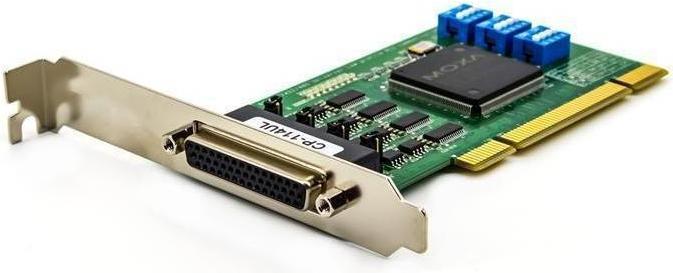

Moxa CP-114UL-DB9M - 4-port RS-232422485 low-profile Universal PCI serial board, 0 to 55C operating t

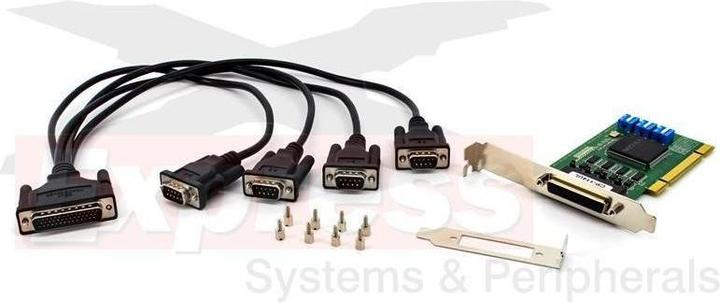

Moxa 4 Port UPCI RS232/422/485 Serial Card with DB9M Cable (including Low- and Full-Profile Brackets)

Description
The Moxa CP-114UL/UL-I series of multiport serial cards are designed for system integrators in industrial automation for PC-based data acquisition applications over long distances and multiple points. The chip's automatic data direction control for precise RS-485 communication requires accurate timing to activate and deactivate the line driver. The Moxa Turbo Serial Engine™ chip that powers the CP-114UL/UL-I cards is equipped with On-Chip ADDC®, making RS-485 as easy to use as RS-232. In RS-485 mode, the serial interface can connect up to 31 RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, optical isolation with 2 KV is available to prevent device damage.

Drivers for Windows, Linux, and Unix
Moxa continues to support a variety of operating systems, and the CP-114UL/UL-I cards are no exception. Reliable Windows COM and Linux/Unix TTY drivers are provided for all Moxa cards, and other operating systems such as WEPOS are also supported for embedded integration.

Features

• Over 700 Kbps data throughput for maximum performance
• 128-byte FIFO and On-Chip H/W, S/W flow control
• Universal PCI compatible with 3.3/5 V PCI and PCI-X
• Serial communication speed up to 921.6 Kbps
• Drivers for Windows (2000, XP/2003/Vista/2008 x86/x64, 9X/ME/NT), Linux 2.4, Linux 2.6 (x86/x64)
• Easy maintenance with on-board LED display
• On-board protection against 15 KV ESD and 2 KV optical isolation
• Wide temperature model available for environments from -40 to 85°C.
