Monacor Potentiometer

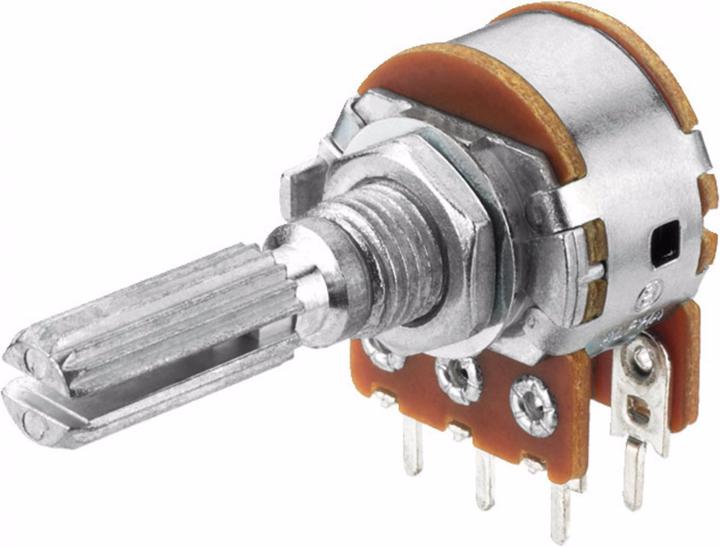

The Monacor potentiometer is a high-quality stereo potentiometer with a resistance of 50 kΩ, making it ideal for various applications in audio technology. It features a linear characteristic that allows for precise control of the volume level. The slotted 6-mm shaft is designed for use with 18-tooth push-on knobs, ensuring easy handling and adjustment. The potentiometer is equipped with nut mounting and has printed circuit board solder connections, allowing for reliable connection and mounting on circuit boards. With a rotation angle of 300° ± 5°, it offers a wide range of adjustment suitable for a variety of applications.

• Test voltage of 500 V for increased safety
• Insulation resistance of less than 100 MΩ at DC 500 V
• Tracking of ±3 dB for consistent performance
• Power rating of 0.2 W for versatile applications.
