Monacor ELA mono class D mixer amplifier 30 W, MP3, USB/SD, FM, DAB+, BT

Amplifier
1Ratings
BrandMore from Monacor
Delivered between Wed, 22.4. and Thu, 30.4.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

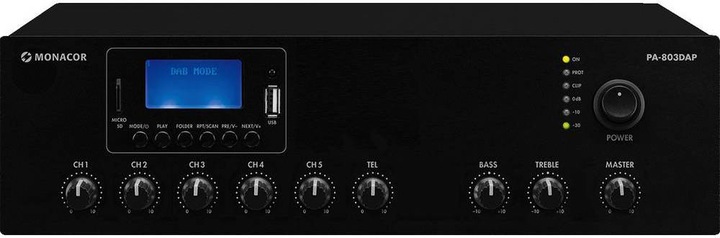

PA-803DAP ELA Mono Class-D Mixer Amplifier: The PA-803DAP is a Class-D mono mixer amplifier with 30 W. The device features a built-in MP3 player, an FM/DAB+ tuner, and Bluetooth for personalized audio playback. Its high efficiency helps keep energy costs low. The device operates silently and offers high connectivity. In addition to a USB/SD storage device interface, the amplifier also includes an LED display and an IR remote control. Other features include priority selection for announcements via the XLR 48V phantom power, an emergency input, and a music-on-hold (MOH) output.

Key specifications

Amplifier Equipment
Bluetooth
Tuner
DAB+, FM

General information

Item number
20029557
Manufacturer
Monacor
Category
Stereo amplifiers
Manufacturer no.
PA-803DAP
Release date
16.3.2022

Colour

Colour
Black
Exact colour description
Black

Amplifier properties

Audio channel
1.0 Channel
Amplifier type
Amplifier
Nominal power
30 W
Music power (RMS)
1x 30 W
Number of speaker groups
1
Amplifier Equipment
Bluetooth
Tuner
DAB+, FM
Network features
Internet radio

Connections

Data ports
Card reader (1x)
Audio inputs
6.3 mm jack (2x), Stereo Cinch Line/Phono Combo (2x), XLR (1x)
Audio outputs
Loudspeaker (1x)

Voluntary climate contribution

CO₂ emissions
494.59 kg
Climate contribution
CHF 11.76

Scope of delivery

Scope of delivery
1x PA-803DAP, Bluetooth antenna, Instruction manual, IR remote control

Product dimensions

Width
320 mm
Height
95 mm
Depth
245 mm
Weight
3740 g

Package dimensions

Length
39 cm
Width
31 cm
Height
18 cm
Weight
4.31 kg

30-day right of return
24 Months Warranty (Bring-in)
