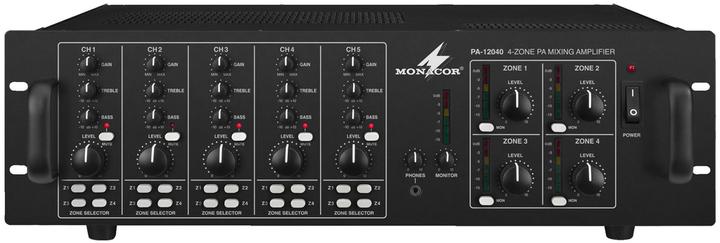

Monacor ELA amplifier PA-12040 120 W 4-channel 4-

4-channel mono mixing amplifiers with professional features for general multi-room PA applications.

• 4 x 120 W (PA-12040)
• 4 x 40 W (PA-4040)
• 100 V and 4/8 Ω operation
• Perfect utilization of the capacity and reliable protection of the connected speakers due to an integrated limiter
• 3 inputs microphone/line via comb. jacks
• 2 inputs line stereo via RCA jacks
• Each input channel with gain control, 2-way tone control, channel mute switch, and zone routing switch
• Microphone inputs with +46 V phantom power, can be switched on additionally as desired
• Priority function for channel 1, switchable
• Independent paging input, can be routed to all zones
• 4 zone outputs, can be controlled individually
• Zone and monitor line outputs for additional amplifiers or recorders
• Connection for monitor speakers
• Level control via VU meters for zone and monitor
• Adjustable headphone output
• Fan cooling
• 230 V mains operation.
