Minew Technologies BEACON E2 - MINEW E2 - Max Beacon, BT 4.0, iBeacon

Minew E2 - Max Beacon, BT 4.0, iBeacon

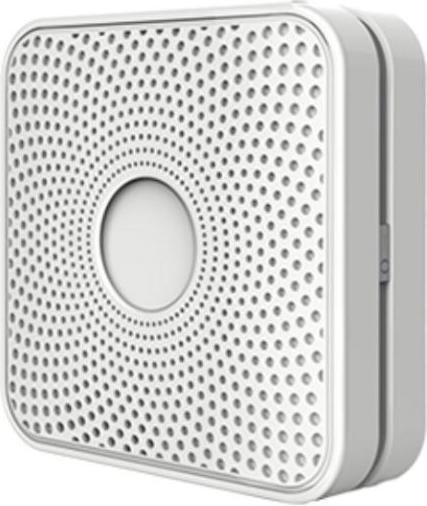

The E2 is a popular and modern iBeacon featuring an ARM core chipset nRF51822 and Bluetooth Low Energy (BLE) 4.0 technology. It is widely used in commercial advertising and boasts an impressive transmission range of up to 300 meters.

Features

• Programmed MiniBeacon with standard firmware

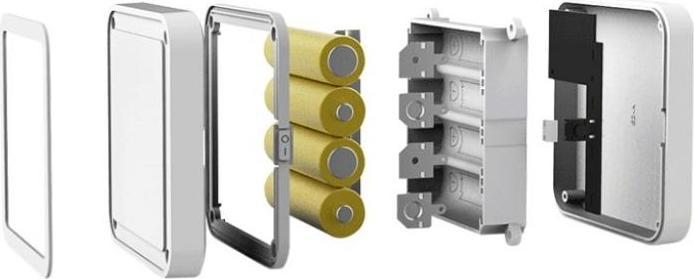

• 10 years battery lifetime with 4 replaceable Li-FeS2 batteries
• Maximum transmission distance of 300 meters
• Extended temperature range: -30 to 70 °C
• IP67 waterproof, suitable for outdoor applications
• 8-character password and AES hardware encryption for enhanced security
• Compatibility: Supports iOS 7.0+, Android 4.3+, Apple iBeacon standard, and Bluetooth 4.0 (BLE) devices
• Real-time battery level notification
• Supports Over-The-Air (OTA) updates, with a reserved J-Link port on the board for programming
• Configurable parameters: UUID, major, minor, device name, password, etc., with a special configuration app
• 8 adjustable transmission power levels, ranging from 0 to 7
• Transmission power range: -30 dBm to +4 dBm
• Soft reboot capability via command without tools
• Connection modes: transmission mode, non-connectable, configuration mode, connectable
• Mounting: 3M brand adhesive for direct wall mounting
• Case color: white, customizable options available
• Battery model: 4 replaceable Li-FeS2 batteries (not included), 2 pieces x 1.5 V (2S2P)
• Operating voltage: 1.8 - 3.6 V
• Maximum transmission circuit current: 10.5 mA
• Maximum transmission range: 300 meters
• Antenna: 50 ohm, on-board PCB antenna
• Accessories: double adhesive/screws, 4 screws, and 4 plastic holders
• Net weight: 109 g (with battery)
• Size: 72 x 72 x 18 mm.
