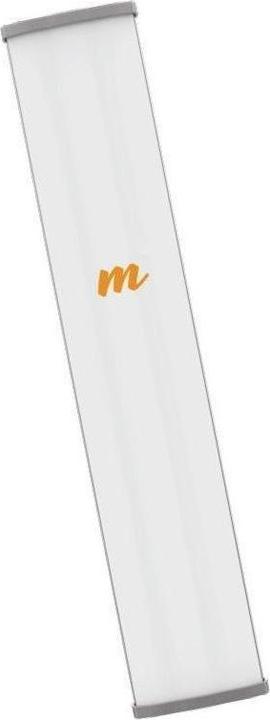

Mimosa 100-00084(N5-45X4) - N5-45x4 sector slant antenna 45°, 22dBi, 4x N female

Product Description
The Mimosa N5-45 antennas provide the full gain and ground coverage of a sector antenna with the remarkable front-to-back and sidelobe performance of a horn. These 45-degree sector antennas for 4.9-6.4 GHz have been specifically designed for a variety of multipoint applications. They deliver the complete beamforming gain and ground coverage of a sector, with the sidelobe suppression of a horn.

No Sidelobes
With state-of-the-art RF design, the N5-45 antennas are custom-engineered to provide high gain and a 42° half-power beamwidth without sidelobes.

Industry's Highest Front-to-Back Ratio
With a front-to-back ratio of 43 dB, the N5-45 antennas utilize metallized end caps and a precision-engineered extrusion of the backplate to enhance noise suppression.

Beamformed High Gain

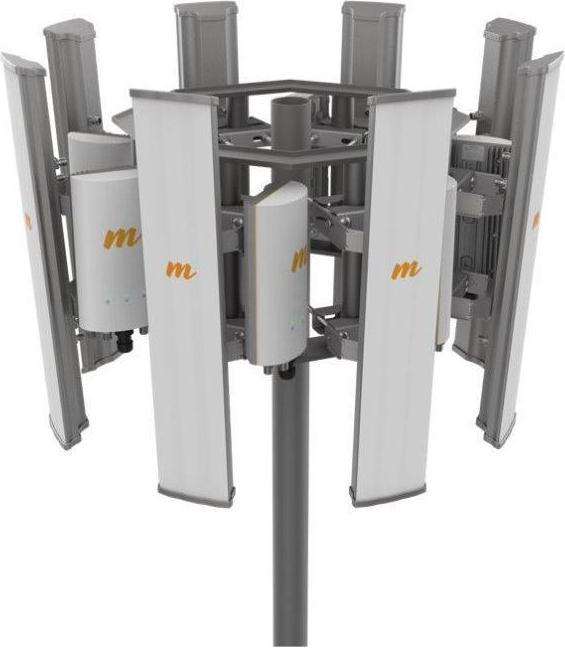

The N5-45x4, exclusively paired with Mimosa's 4x4 MIMO A5c Access Point, achieves +3 dB beamforming gain in both downlink and uplink.

Package Includes

• Device

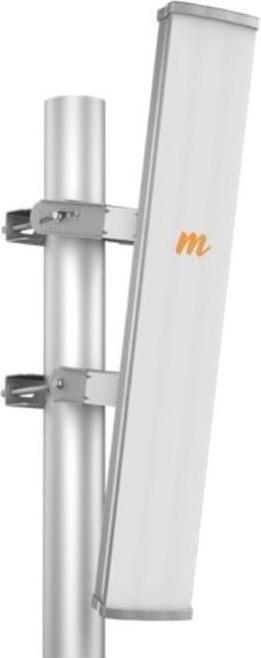

• Mounting bracket
• (4) 1m Pigtail N-male - N-male

Technical Parameters
Wireless Features

• MIMO, SISO: 4 x 4 (tilted - 45° rotated)
• Polarization: VH (tilted)
• Cross-Pol Isolation [dB]: 30
• Radio Frequency: 5 GHz
• Elevation Beamwidth (-6dB) [°]: 9
• Azimuth Beamwidth (-6dB) [°]: 42
• Antenna Type: Sector
• Antenna Gain [dBi]: 22

Connections and Interfaces

• RF Connectors: (4) N-female

Physical Properties

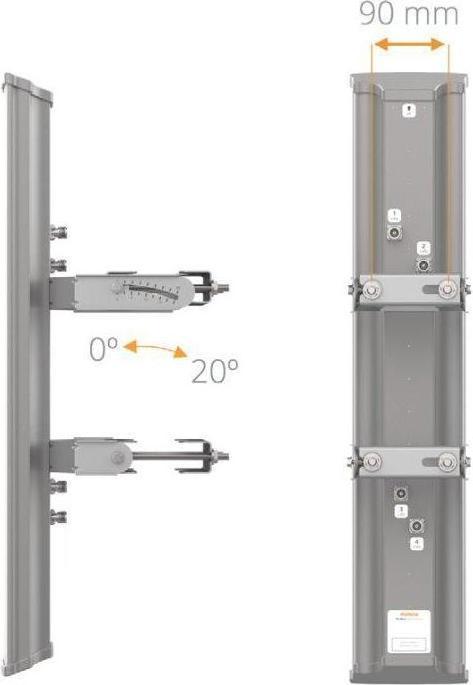

• Designed for Mast Diameter [mm]: 38 to 90
• Wind Load [km/h]: 200
• Protection Class: IP55
• Intended Use: Outdoor
• Operating Temperature [°C]: -40 to 55
• Weight [kg]: 4.1
• Width [mm]: 143
• Height [mm]: 734
• Depth [mm]: 76.
