Milesight IoT IoT Smart Current Transformer, CT305-868M LoRaWAN/500A

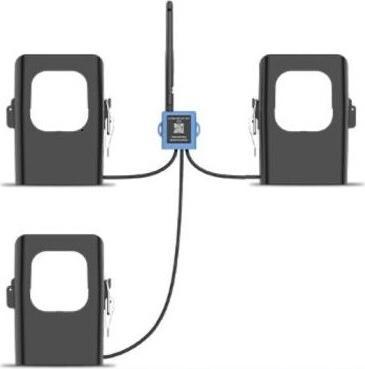

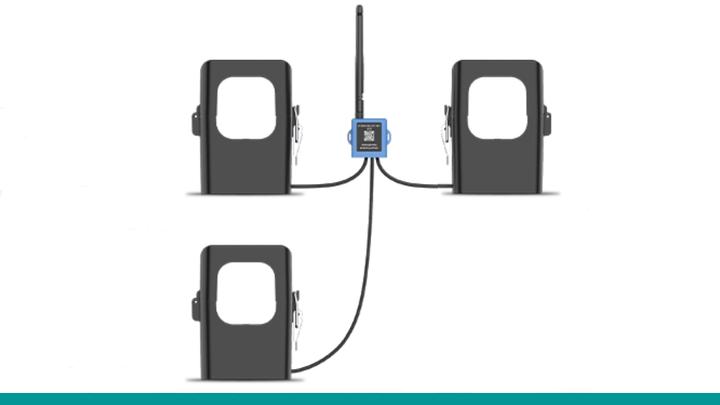

The IoT Smart Current Transformer CT305-868M from Milesight is an advanced device specifically designed for monitoring electrical currents in smart home applications. With a maximum input power of 500A, this device offers high measurement accuracy and a sampling frequency of up to 3.3 kHz, enabling precise capture of RMS and accumulated current data. The transformer is self-powered and requires no batteries or external cables, significantly simplifying installation and maintenance. Additionally, it supports simultaneous measurement of three phases and is compatible with standard LoRaWAN® gateways and network servers. The IP30 protection class ensures that the device operates reliably in a variety of environments, while the integrated LED display indicates operational status and alarms. The ability to connect external temperature sensors enhances the device's functionality and allows for comprehensive monitoring of cable temperature.

• Induced power supply for autonomous use
• Real-time monitoring with a sampling rate of up to 1s
• Supports external temperature sensors for cable temperature measurement
• High measurement accuracy with a tolerance of ± 1%
• IP30 protection class for reliable operation in various environments.
