MikroTik CRS317-1G-16S+RM

MikroTik CRS317-1G-16S+RM - Cloud Router Switch, 800 MHz CPU, 1 GB RAM

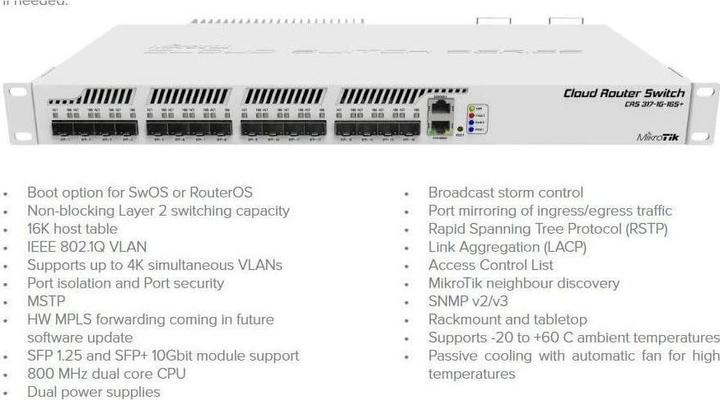

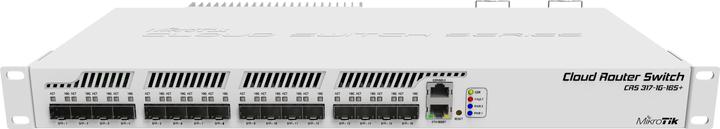

The new Cloud Router Switch 317-1G-16S+RM is a rack-mounted, managed switch with Layer 3 capabilities. It features 16 SFP+ ports for high-performance 10 GbE connectivity and a 1 GbE copper port for management. The CRS317-1G-16S+RM is equipped with a next-generation switch chip that provides wirespeed performance for all 16 10 GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) offer enhanced protection and true professional performance for your demanding network.

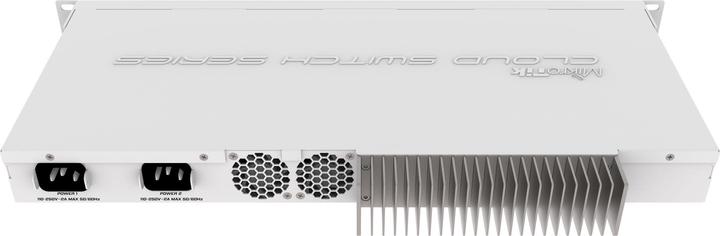

The device comes with two redundant power supplies and a passive cooling case, making it completely silent. In hot environments, two redundant fans automatically keep the system cool when needed.

It provides all the basic features of a managed switch and more: it allows for port-to-port forwarding management, application of MAC filters, VLAN configuration, traffic mirroring, application of bandwidth limitations, and even customization of some MAC and IP header fields. The SFP+ cages support both 1.25 Gb SFP and 10 Gb SFP+ modules.

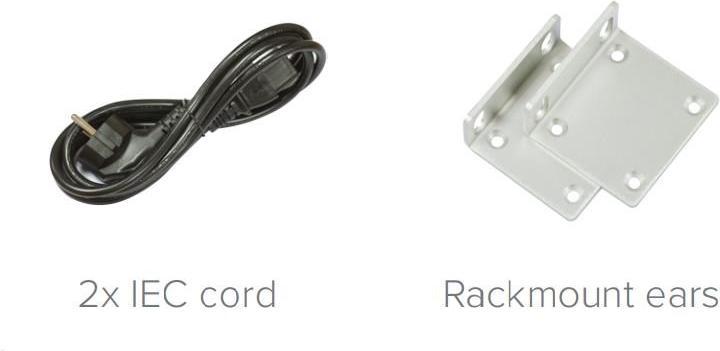

Included in the package:
Cloud Router Switch 317-1G-16S+RM

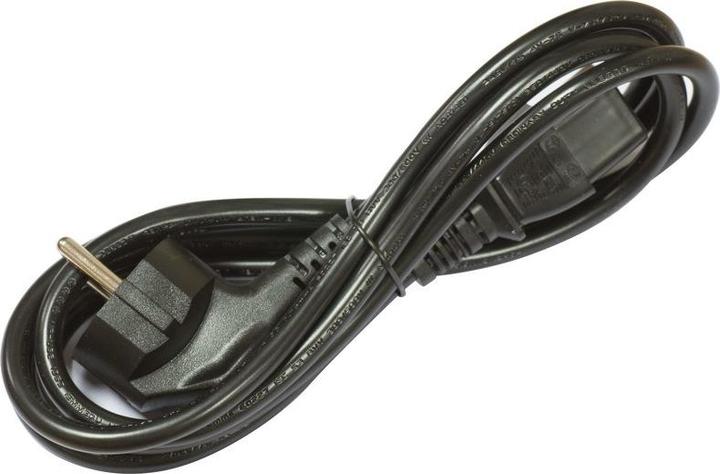

2x IEC cables

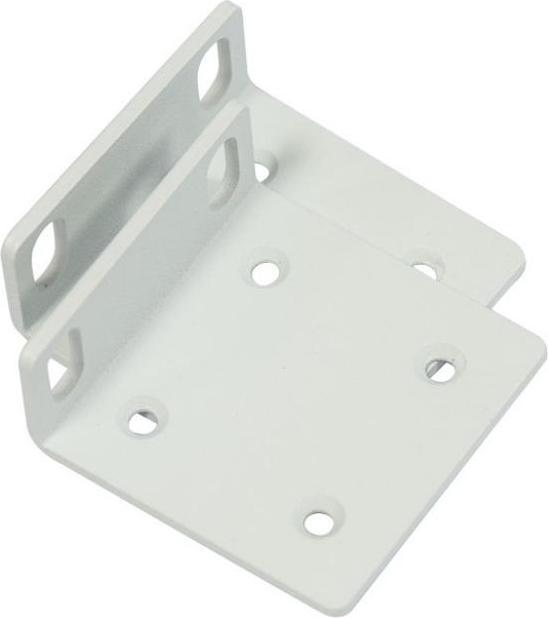

Rackmount ears

Product code: CRS317-1G-16S+RM
CPU: 98DX8216B0 800 MHz
RAM size: 1 GB
Storage type: Flash
Storage size: 16 MB
SFP+: 16 (supports both 1.25 Gb SFP and 10 Gb SFP+ modules; modules not included), DDMI support
Dimensions: 443 x 224 x 44 mm
License level: 6
Operating system: RouterOS or SwitchOS
Number of AC inputs: 2
AC input voltage range: 110 - 240 V
Redundant power supply: Yes
Max. power consumption: 42 W
Active cooling case: Yes
CPU temperature monitoring: Yes
Operating temperature: -40°C to 70°C
LEDs: 38
Serial port: RJ45.
