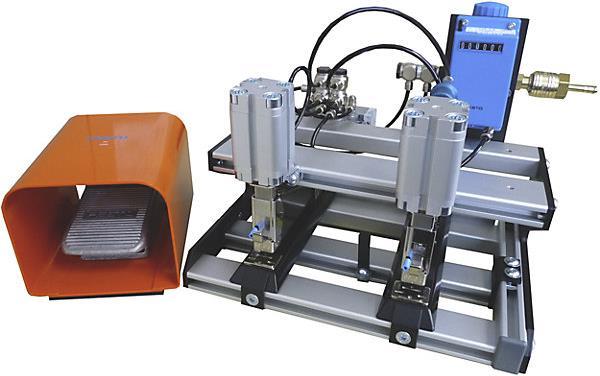

Mezger Table stapler, pneumatic

Table stapler, pneumatic, suitable for stapling both open and closed items, with foot release. Designed for a large number of stapling operations, it allows for continuous operation with flexible adjustment possibilities. It includes a maintenance unit and pressure reducer.

Table staplers are ideal for stapling thin solid board, such as cardboard headers or tabs, onto plastic bags, paper bags, or for blister packaging. This model comes standard with two insert staplers (front loaders), each with a loading capacity of 210 staples. The stapling distance ranges from a minimum of 45 mm to a maximum of 200 mm. From the second pneumatic stapling unit onwards, each additional stapler can be individually stopped using a slide valve. An optional counter can also be installed.

Dimensions are approximately 285 x 220 x 270 mm, with an operating pressure of 4 - 6 bar. Additional stapling units, special widths, and counters are available upon request.
