Metz Connect Diode module
Delivered between Thu, 2.10. and Sat, 18.10.
free shipping
Product details

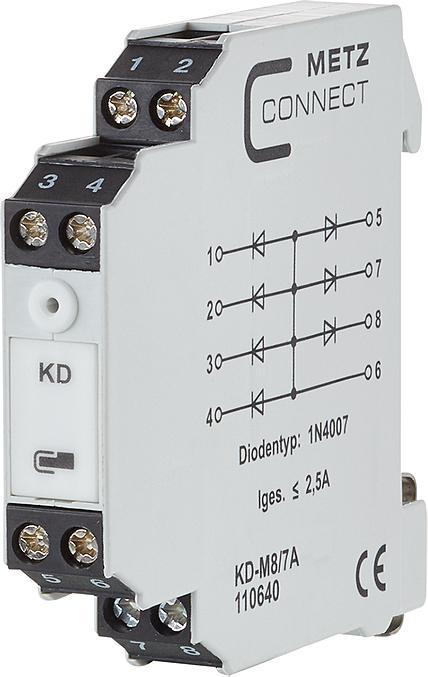

Metz Connect diode module KD-M8/7A Manufacturer :Metz Connect Designation :Diode module Type :KD-M8/7A Total number of diodes :7 Max. current (Imax) per diode :1.8 A Max. operating voltage (Umax :250 V) Operating voltage (Umax) :250 V Common anode :yes Common cathode :no Electrical connection type :Screw connection Mounting type :DIN rail Metz Connect diode module KD-M8/7A: further details The diode module is equipped with 7 diodes and the anodes of the diodes are all connected together. The module is used in the field of fault indication technology (lamp testing), common anode, connection with screw terminals, EAN: 4250184122814.
Forward voltage | 250 V |
Forward current | 1.80 A |
Items per sales unit | 1 x |
Item number | 36761615 |
Manufacturer | Metz Connect |
Category | Diode |
Manufacturer no. | 110640 |
Release date | 28.6.2023 |
Forward voltage | 250 V |
Forward current | 1.80 A |
Number of LEDs | 7 x |
Items per sales unit | 1 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Specifications may include unverified machine translations.
