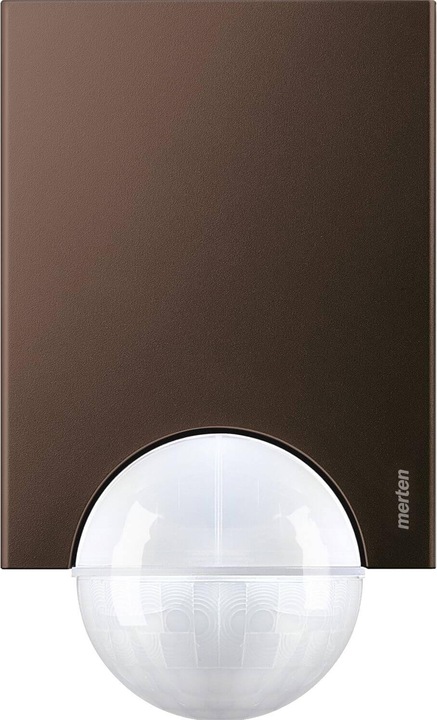

Merten Motion detector 632515 KNX ARGUS 220 dark brasil

KNX Argus 220. KNX motion detector for outdoor use. 220° area monitoring for large house fronts and sections. With integrated bus coupler. The physical address is programmed with a magnet. 360° short-range detection (approximately 4 m radius). Large wiring space and plug-in system. Loop formation is possible. LED function indicator for quick alignment at the installation site. The control elements are protected under an easily accessible cover plate. Flexibly adjustable sensor head. Individual lens areas can be excluded. Mounting on walls and ceilings is possible without additional accessories. Can be mounted on indoor/outdoor corners and standpipes with mounting brackets. KNX software functions: Five motion blocks: Up to four functions can be triggered per block. Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, security pause, deactivation function. Sensitivity, brightness, and stair light time can be adjusted via ETS or the potentiometer. Self-adjusting stair light time. Detection angle: 220°. Range: max. 16 m. Number of steps: 7. Number of zones: 112 with 448 switching segments. Light sensor: continuously adjustable from approximately 3 - 1000 Lux (infinite Lux: motion detection is independent of the position of the sensor head). Time: externally adjustable from 1 s to approximately 8 min in 6 steps or via ETS from approximately 3 s to about 152 hours. Sensitivity: continuously adjustable. Possible settings for the sensor head: Wall mounting: 9° up, 24° down, 12° left/right, ±12° axial. Ceiling mounting: 4° up, 29° down, 25° left/right, ±8.5° axial. Protection class: IP 55. Contents: With cover plate and segments to limit the detection area, screws, and dowels. Color: dark Brazilian.
