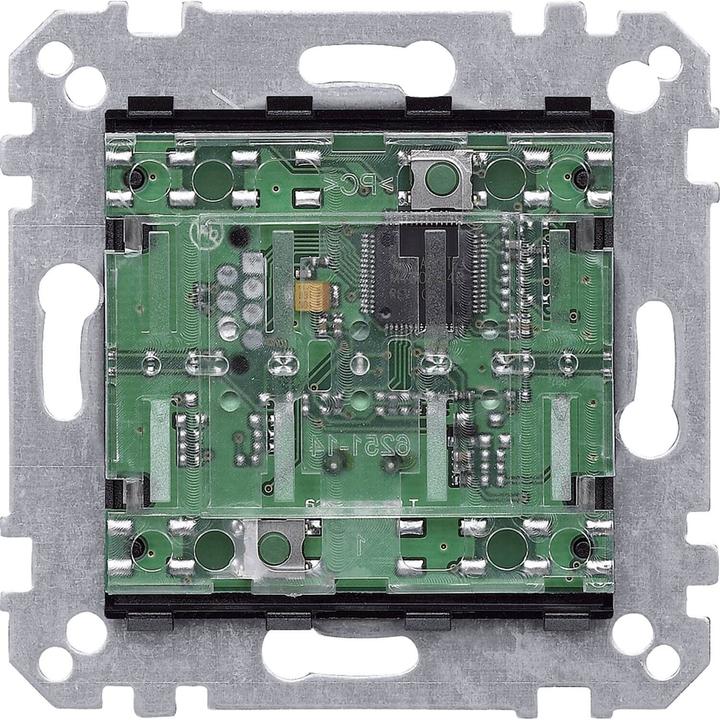

Merten KNX push button module 1gang

Merten Push Button Module 1f. 625199

Manufacturer: Merten
Designation: Push Button Module 1f
Type: 625199
Bus System KNX: yes
Bus System KNX-RF: no
Bus System RF Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional RF: no
Mounting Type: Flush unmounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Activation Points: 2
Number of Buttons: 2
With LED Display: yes
With Labeling Field: no
With Display: no
Material: Plastic/Electronics
Material Quality: other
Surface Finish: matte
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Min. Depth of Device Box: 46 mm

Merten Push Button Module 1f. 625199: additional details
For System M. Push button module without rocker. With programmable status display. The device is connected to the bus line via a bus connection terminal. With integrated bus coupler.

Software Functions KNX: The buttons can be parameterized either as a button pair (two-surface) or as individual buttons (one-surface). One-surface functions include ON or OFF switching, dimming, and scenes. Two-surface functions include ON switching, OFF switching, dimming, scenes, and blinds. In KNX, to be completed with rocker for push button module 1-fold System M 6191xx, 6251xx rocker for push button module 1-fold with imprint 1/0 System M 6254xx, 6193xx rocker for push button module 1-fold with imprint arrows Up/Down System M 6255xx, 6194xx.

EAN: 4042811026509.
