MeanWell Switching Power Supplies PSPA-1000 Series Enclosed Single Output Power: 1000W Parallel Function

Ratings
BrandMore from MeanWell
Delivered between Mon, 29.12. and Tue, 30.12.
Only 2 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Output voltage2

Product details

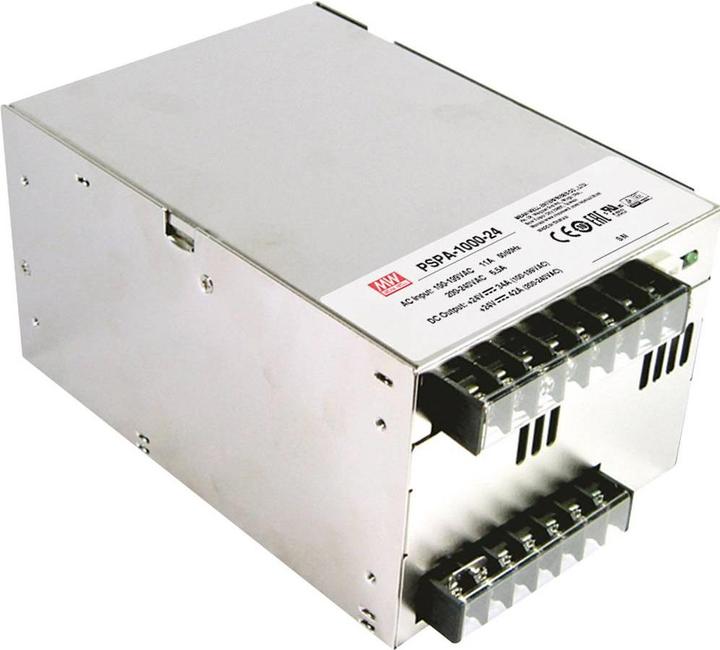

Mean Well Switching Power Supplies PSPA-1000 Series Enclosed Single Output Power: 1000W Parallel Function. Closed case with fan and screw terminals. Universal input and parallel function. Current sharing up to 4000W (3+1). Protected against short circuit, overload, overvoltage, and overtemperature. Built-in PFC circuit. On/off switching of output voltage via remote signal. Sensor connection for correct voltage at the load.

Features: Closed design with fan and screw terminals. Universal input and parallel function. Current sharing up to 4000W (3+1). Protected against short circuit, overload, overvoltage, and overtemperature. Built-in PFC circuit. Switching the output voltage on and off via remote signal. Sensor connection for correct voltage at the load.

Technical data: Connection (components): Screw terminal. Number of outputs: 1. Output voltage (max.): 12 V/DC. Output current (max.): 80 A. Operating temperature (max.): +70 °C. Operating temperature (min.): -20 °C. Input voltage (max.): 264 V/AC, 370 V/DC. Input voltage (min.): 90 V/AC, 127 V/DC. Weight: 1930 g. Power: 960 W. MTBF: 2,743,000 h. Power supply unit features: Output voltage adjustable. Power supply type: switched mode. PFC: Yes. Product type: AC/DC power supply module, closed. Product dimensions: width: 120 mm, height: 93 mm, length: 170 mm. Type (manufacturer type): PSPA-1000-12.

Note: These power supply units are intended for installation in end devices.

Key specifications

Voltage transformer type
Vehicle voltage transformer
Width
12 cm
Length
17 cm
Height
9.30 cm
Power output
1000 W
Output voltage
12 V
input voltage
264 V
Item number
21659531

General information

Manufacturer
MeanWell
Category
Power inverters
Manufacturer no.
PSPA-1000-12
Release date
9.8.2022
External links
Manufacturer's site (de)

Voltage Transformer Properties

Voltage transformer type
Vehicle voltage transformer
input voltage
264 V
Output voltage
12 V
Power output
1000 W
Electric current output
80 A

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
17 cm
Width
12 cm
Height
9.30 cm
Weight
1930 g
