Name: Power Adapter Desk Top C14 55.2V 243W
Brand: MeanWell
SKU: 9959365
Price: 112.65 CHF
Availability: InStock

isSSR

lazyLoadRecommender

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

MeanWell

Input voltage = 127 → 370 V dc, 90 → 264 V ac
Rated output voltage = 55.2V dc
Output current range = 0 → 4.4A
Rated output power = 243W
Number of outputs = 1
Controller type = Switching power supplies
Hum and interference voltage = 350mV ss
Network adjustment range = +0.5%.
Load regulation range = +0.5%.
Operating time = 170500h

Approved according to IEC60950-1, UL60950-1EMV emission: Complies with EN55022 (CISPR22) Class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 Class BEMV immunity: Complies with EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, light industrial class, criterion A. Mean-Well ENP-240 Series Desktop Power Supplies The Mean-Well ENP-240 Series Desktop Power Supplies have a standard width of 7 inches for mobile phone use. With a rated power of 240W and a rugged design, this series also delivers the most commonly used voltages in communications applications. ENP-240 desktop power supplies can be operated in a temperature range between -30 °C and +70 °C and are cooled by free air convection. Characteristics and advantages:. Universal AC input and full range. Highly efficient circuit. Overload, overvoltage, overtemperature and short-circuit protection. Power consumption at zero load below 0.15 W. Integrated power factor correction. 125 % peak load capacity. Without fan. Energy Efficiency Level VI. Efficiency between 91% and 94% (depending on model). Conforms to EISA 2007/DoE, NRCan and EU ErP. Product applications:. These desktop power supplies were developed for communication-relevant applications. Suitable areas of application include TV antenna equipment, surveillance systems, electric scooter charging and mobile land radio service systems.

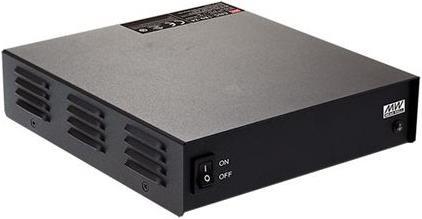

Actual product image MeanWell Power Adapter Desk Top C14 55.2V 243W (243 W)
