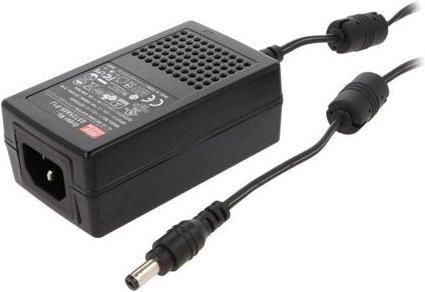

MeanWell Power Adapter Desk Top C14 28V 25W

Input Voltage: 85 to 264 V AC
Output Rated Voltage: 28 V DC
Output Current Range: 0 to 0.89 A
Output Rated Power: 25 W
Input Connection: IEC320-C14
Output Connection Type: DC Plug
Number of Outputs: 1
Regulator Type: Switch Mode Power Supplies
Ripple and Noise Voltage: 240 mV ss
Input Regulation Range: -1 to +1 %
Load Regulation Range: -2 to +2 %
Operating Time: 674.55 kH

The GST25A desktop power supply series from Mean Well complies with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP, and CoC V.5. This series offers a reliable solution for various power supply applications, featuring a 3-pin AC input according to IEC320-C14 and an input range of 85 V AC to 264 V AC. The GST25A series provides an efficiency of up to 89% and an extremely low power consumption in no-load operation of under 0.075 W. It is well-suited for both consumer and industrial power supply solutions.

Features and Benefits:

• Energy Efficiency Class VI
• AC input, 3-phase, IEC320-C14
• Class 1 power supply with earth connection
• Fully enclosed housing, manufactured to comply with flame retardant standards 94V-0
• Equipped with industry-standard protection against short circuit, overload, and overvoltage
• LED status indicator

Typical Applications:

• Industrial equipment
• Telecommunications devices
• Office equipment
• Consumer electronics devices.
