MDT Room temperature controller

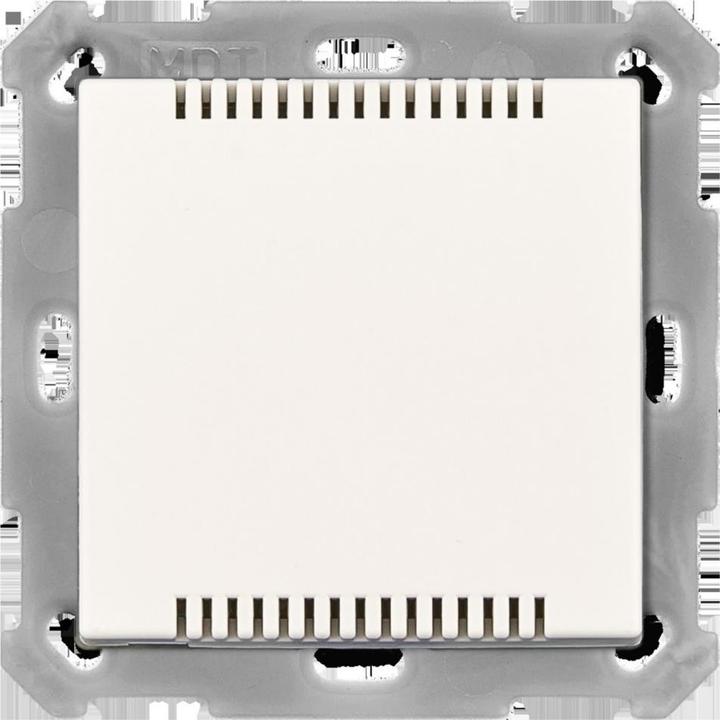

MDT technologies Room Temperature Controller SCN-RT1UP.01

Manufacturer: MDT technologies
Description: Room temperature controller pure white/matt
Type: SCN-RT1UP.01
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: Flush-mounted
On-site Operation: no
Theft/Dismantling Protection: no
LED Display: no
Display: no
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: other
Surface Finish: matt
Color: white
RAL Number (similar): 9010
Transparent: no
External Sensor: no
Manual Setpoint Adjustment: no
Presence Button: no
Parallel Operation Possible: yes
Protection Class (IP): IP20
With Bus Coupling: yes
Minimum Depth of Device Box: 35 mm

MDT technologies Room Temperature Controller SCN-RT1UP.01: additional details
KNX room temperature controller 55, pure white matt. Version with temperature controller. Suitable for 55 mm switch programs such as MDT range 55 or GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. Selectable controller type (2-point, PI, PWM). Storage of setpoints in case of bus voltage failure. Bit/Byte object for setpoint adjustment. Temperature control for indoor spaces, measuring range -10 ... +50 °C. Minimum/maximum temperature value storage, notifications, and frost/heat alarm. Setpoint specification via visualization, e.g., MDT VisuControl. Day/Night/Frost protection operation. Status via HVAC and RHCC objects. Switching of operating mode via Bit/Byte objects. Installation in switch box with supplied mounting ring. Integrated bus coupler.
