MDT KNX Glas

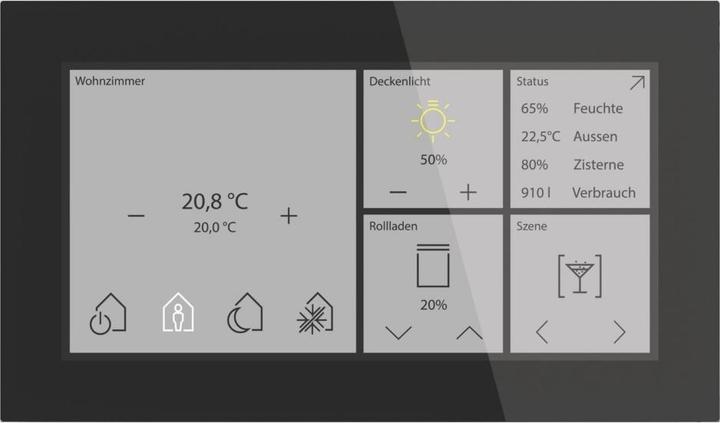

MDT technologies KNX Glass Touch Smart BE-GTS06TS.01S

Manufacturer: MDT technologies
Designation: KNX Glass Touch Smart 6 inch, Black
Type: BE-GTS06TS.01S
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Design: Control and Display Panel
Mounting Type: Flush-mounted
Label Field: no
Display: Color
Touch Function: yes
Additional Interfaces: other
With Bus Coupling: yes
Material: Glass
Material Quality: other
Color: black
Protection Class (IP): IP20

MDT technologies KNX Glass Touch Smart BE-GTS06TS.01S: additional details
KNX Glass Touch Smart 6 inch, KNX Secure, Black. Features a 6 inch color display with a surrounding white orientation light. Supports up to 64 functions and up to 12 status displays in standby. Multifunction button with a capacitive, high-resolution 6 inch TFT color display (1440 x 720 pixels). High-quality design made of glass and brushed aluminum. Intuitive user interface for easy control of room functions. Surrounding white orientation light. Up to 64 functions on individual levels and up to 12 status displays in standby. Room functions: Switching, Dimming, Tunable White, HSV, RGB, RGBW, Sun Protection, HVAC. Jump function for quick page switching. Comfortable room temperature controller with temperature sensor for heating and cooling operation. Logic functions, scene control, innovative group control. Display of status information (1 Bit) and messages (14 Bytes). Protection against unauthorized access through code lock function (1 user). Customizable design according to customer wishes (logo, background image, design colors). Equipped with theft/dismantling protection. Fits into a standard switch box (EU, UK, CH, CN). Auxiliary voltage 24 ... 30 V DC. Integrated bus coupler, KNX Secure. Installation: horizontal or vertical. Dimensions (H x W x D): 92 x 160 x 14 mm.
