MDT Glass button

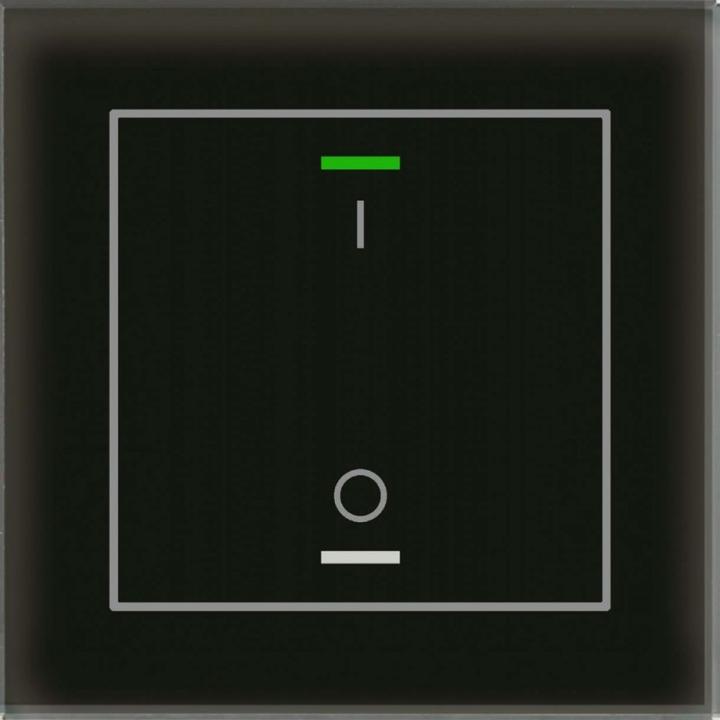

MDT technologies glass push-button II light 1-fold BE-GTL1TS.B1

Manufacturer: MDT technologies
Designation: Glass push-button II light 1-fold RGBW, black
Switch type: BE-GTL1TS.B1
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: Flush-mounted
With anti-theft/disassembly protection: No
With bus coupling: Yes
Number of actuation points: 2
Number of buttons: 1
With LED display: Yes
With labelling field: No
With display: No
Material: Glass
Material quality: Other
Surface protection: Other
Surface finish: Glossy
Colour: Black
Transparent: No
With room thermostat: No
With infrared sensor: No
Protection class (IP): IP20
Min. depth of appliance box: 35 mm

Further details: Glass push-button II light 1-fold, RGBW, with temperature sensor, black, switching. Version I/O symbol with 1 button pair / 2 sensor surfaces. Integrated bus coupling unit. Extensive application. New multiple touch function, sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra-long button press. Temperature sensor for detecting the room temperature. One and two-button operation for switching, dimming, blinds, values. Switch values/scenes with up to 4 values. Short/long button press and 2 objects. Patch function with additional switching channel. Two RGBW status LEDs. LED brightness controllable via day/night or brightness object. 4 logic blocks. Installation in switch box. Dimensions (W x H): 92mm x 92mm. Integrated bus coupling unit. EAN: 4251916110260.
