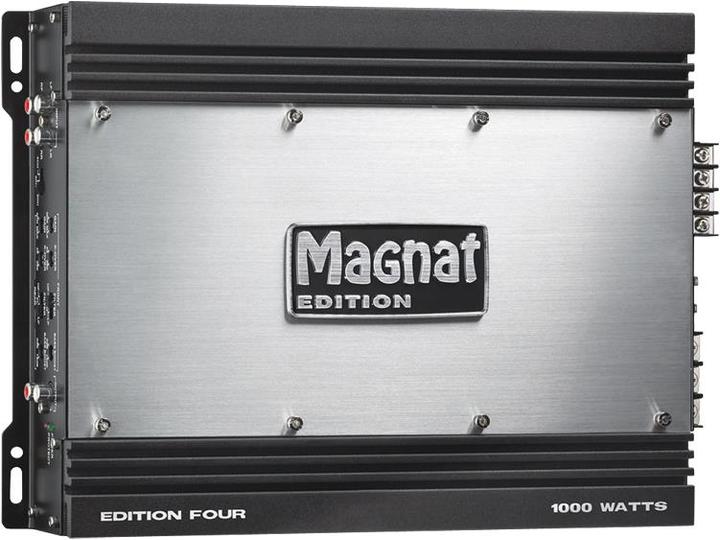

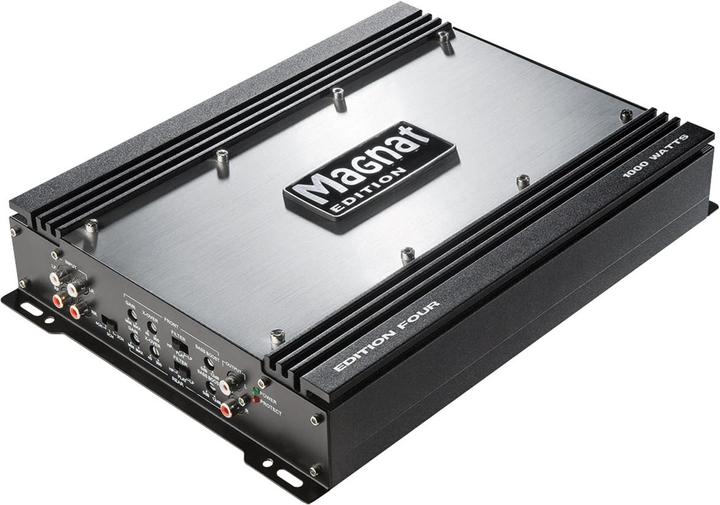

Magnat Edition Four

4-channel amplifier
Currently out of stock
Free shipping starting at 50.–

Product details

Our perfect entry into the world of 4-channel amplifiers is called Edition Four. Stable at 2 ohms, it achieves a maximum output power of 250 watts per channel. A multi-part aluminum heat sink with an enlarged surface structure ensures optimal heat dissipation, while the top features an aluminum plate with a hairline finish. All models in the Edition series are equipped with a reliable MosFet power supply, have low-level outputs, high-quality potentiometers with metal shafts, and a protection circuit against short circuits, DC offset, and overheating. A green and red LED indicate operation and overload, respectively.

Key specifications

Car HiFi Amplifier Features
BridgeableHigh-pass filtersLow pass filter adjustable
Max. Output power 4 Ohm
4 x 140 W
Max. Output power 2 Ohm
2 x 250 W
RMS output power 4 Ohm
4 x 55 W
RMS output power 2 Ohm
4 x 75 W
Documents
Item number
4681218

General information

Manufacturer
Magnat
Category
Car hi-fi amplifiers
Manufacturer no.
EDITION FOUR
Release date
28.5.2015

Amplifier properties

amplifier type
4-channel amplifier

Car Hifi Amplifier Features

Low-pass filter
40 - 300 Hz
Frequency response
5 - 50000 Hz
Car HiFi Amplifier Features
BridgeableHigh-pass filtersLow pass filter adjustable

power

Max. Total output power
4 x 140 W
Max. Output power 4 Ohm
4 x 140 W
Max. Output power 2 Ohm
2 x 250 W
Bridged max. output power 4 Ohm
2 x 500 W
RMS output power 4 Ohm
4 x 55 W
RMS output power 2 Ohm
4 x 75 W
Bridged RMS output power 4 Ohm
2 x 150 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Depth
236 mm
Width
345 mm
Height
57 mm
Weight
3100 g
