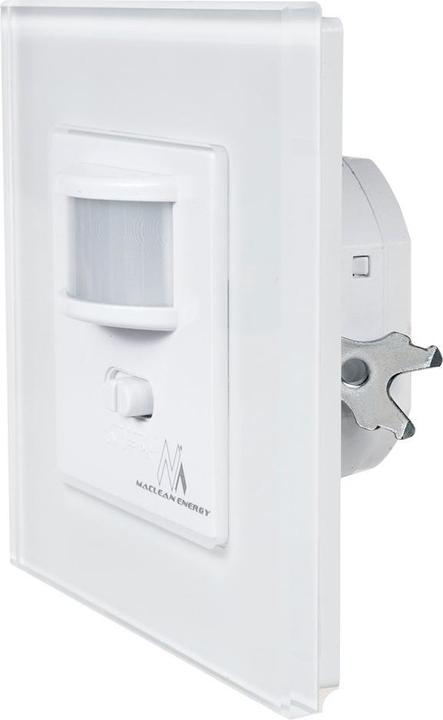

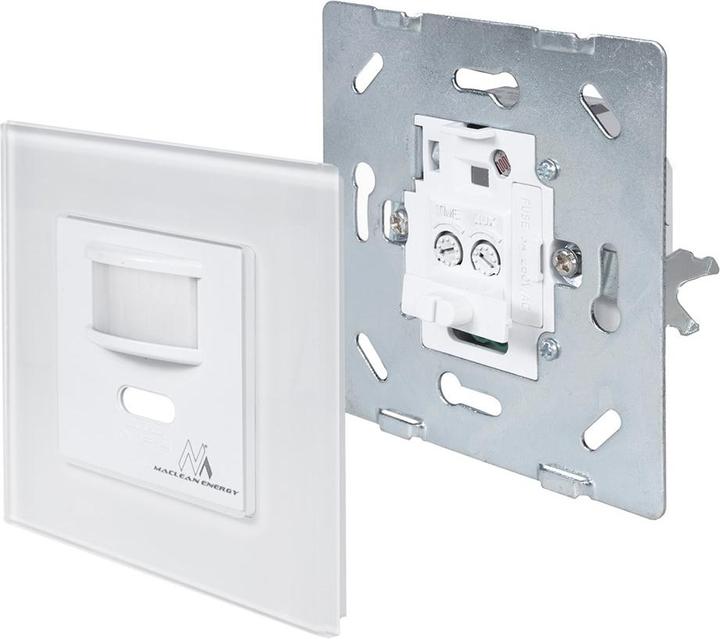

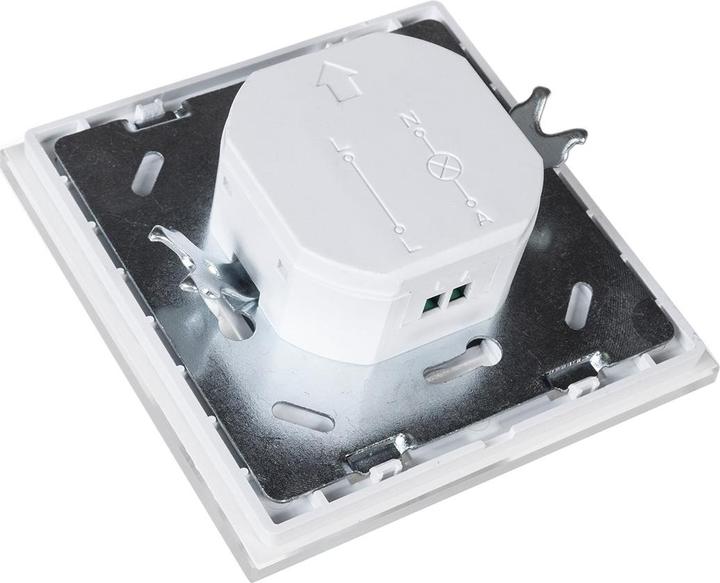

Maclean MCE240 MCE240 Wall Motion Detector for IR with an Electrical Junction Box

This device is highly sensitive and features an integrated SMT circuit. It offers automation, comfort, safety, and energy savings. The wide detection area is covered with detectors. The signal source that activates the device is infrared rays emitted naturally by humans. When the signal source enters the detection field, the device turns on automatically after detecting day and night. It is easy to install and versatile. Additionally, it has performance signaling and detection functions.

The high-quality wall sensor is suitable for installation in a 60 mm box. Thanks to the sensor, you can save on electricity costs, as the lighting is only turned on when needed. The detection angle is 160°. The next-generation infrared sensor offers high stability, an appealing design, a wide operating voltage range, easy installation, and a large detection range. It automatically detects day and light at night. The SMT technology used complies with European standards. The sensor is intended for automatic lighting control in homes, hotels, offices, stairwells, hallways, basements, restrooms, etc.

Specification:

• Power supply: 220–240 V/AC
• Detection range: 160°
• Frequency: 50–60 Hz
• Operating temperature: -20/+40 °C
• Light sensor: <3-2000 LUX
• Humidity: <93 % RH
• Time delay: min. 10 sec. +/- 3 sec., max. 7 min. +/- 2 min
• Installation height: 2.2 m–4 m
• Motion detection speed: 0.6 ~ 1.5 m/s
• Load capacity: 500 W/200 W
• Detection distance: max. 9 m (<24 °C)

Set includes:

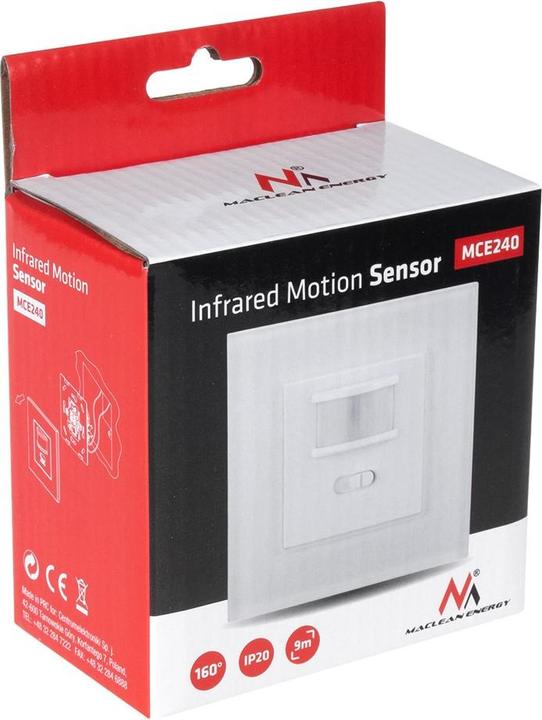

• Wall motion sensor for infrared PIR box, glass frame MCE240 Maclean Energy
• User manual
• Manufacturer's packaging
• Purchase receipt

Operating modes:
ON – Light/device turned on
OFF – Light/device turned off
PIR - Operates with a motion sensor.
