M5Stack Stepper motor driver module 13.2

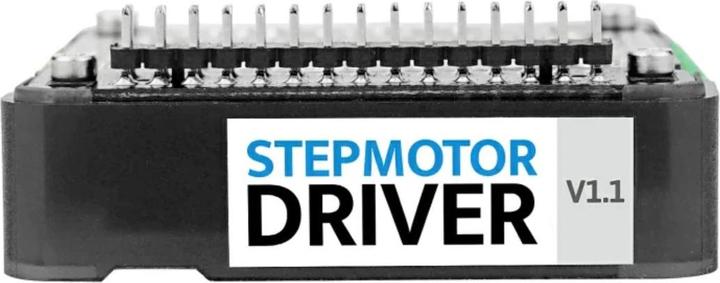

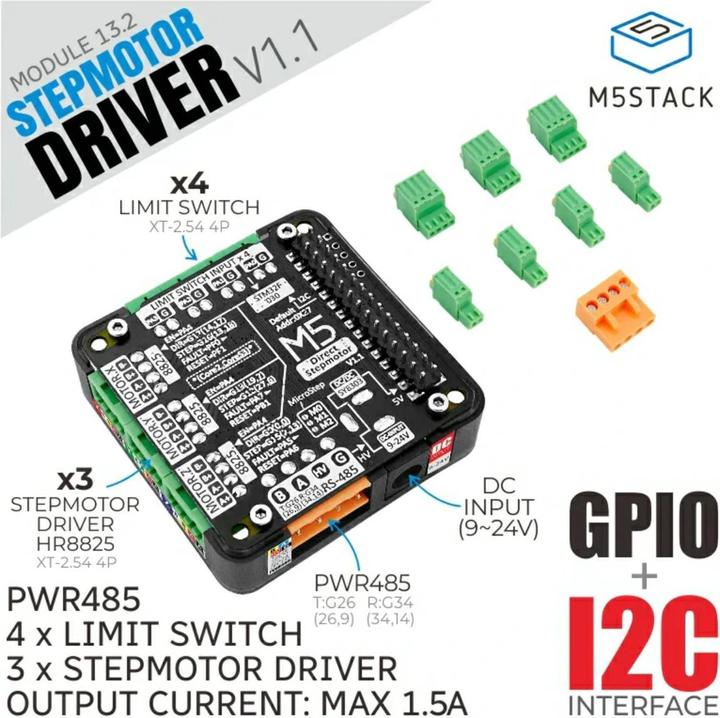

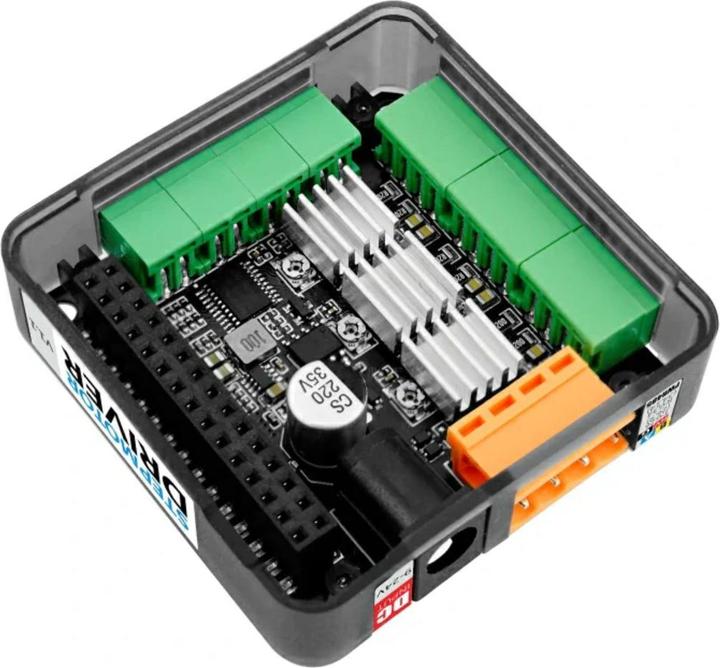

The M5Stack Stepper Motor Driver Module 13.2 V1.1 is a stepper motor driver tailored for the M5 Core. It utilizes an STM32 with HR8825 stepper motor drivers and offers a bipolar 3-way stepper motor control interface. The module allows for independent control or linking of multiple motors. It features an IO expansion chip, input signal terminals, driver chip release control, and up to 1/32 microstepping for stepper motors. With graphical UIFlow programming or Arduino, the stepper motor can be precisely controlled. This module is ideal for applications such as printers and robotic arms that require precise stepper motor movements.

Recommended accessories:
12V DC 4000mA power supply AC/DC adapter with 5.5mm/2.1mm plug

Features:

• Suitable for bipolar stepper motors
• Each channel has a current regulation potentiometer and can drive up to 1.5A
• Supports multiple microstepping modes, up to 1/32 microstepping
• 4 sets of signal input interfaces
• PWR485 communication interface (RS485 + 9-24V power input)

Technical details:

• Manufacturer: M5Stack
• Manufacturer SKU: M039-V11
• IO expansion chip: STM32F030F4P6
• Stepper motor driver chip: HR8825
• Support for segmentation modes: FULL, 1/2, 1/4, 1/8, 1/16, 1/32

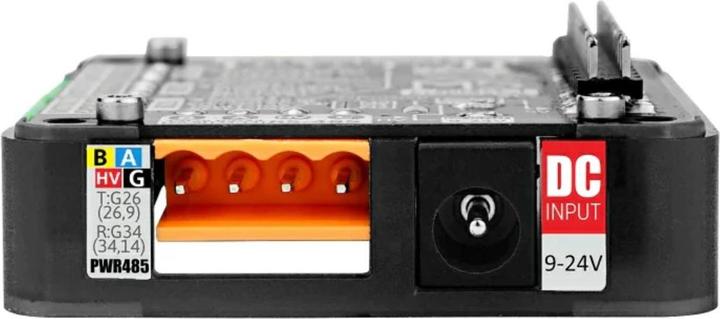

• Power connection: DC-JACK
• Input voltage: 9~24V
• Maximum drive current for a single channel: 1.5A
• Connection type for input signal terminals: 2.54-2P

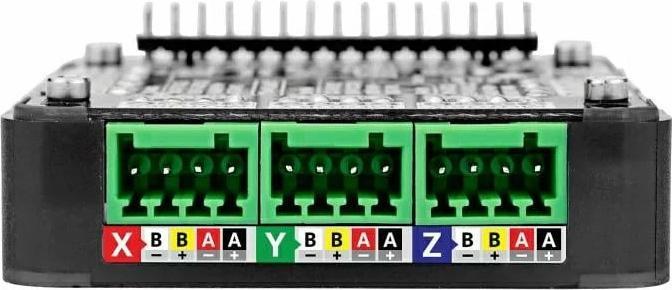

• Connection type for motor terminals: 2.54-4P
• Connection type for RS485 terminal block: 3.96-4P
• Operating temperature: 0~40°C
• Development platform: Arduino, UIFlow
• Dimensions: 54.2 x 54.2 x 13.2mm
• Weight: 40g

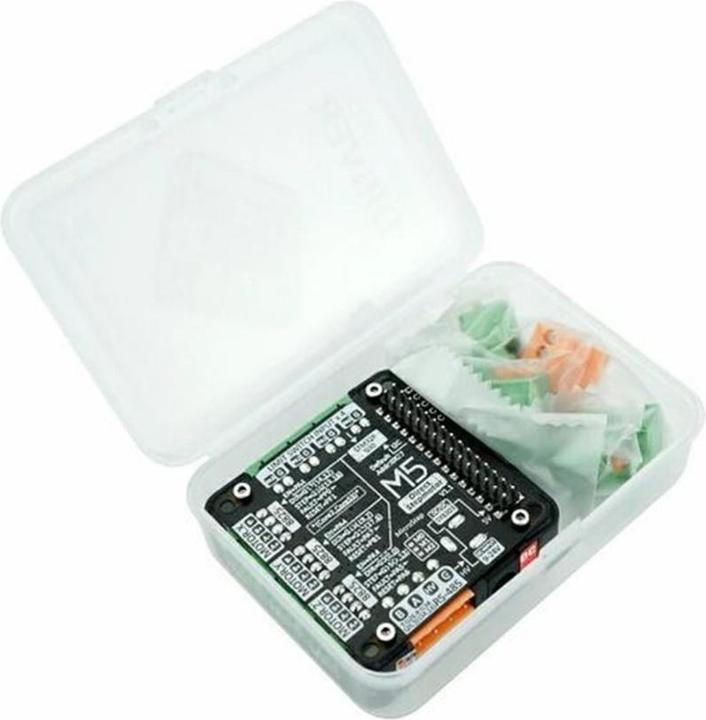

Package includes:

• 1x M5Stack Stepper Motor Driver Module 13.2
• 4x 2.54-2P connectors
• 3x 2.54-4P connectors
• 1x 3.96-4P connector.
