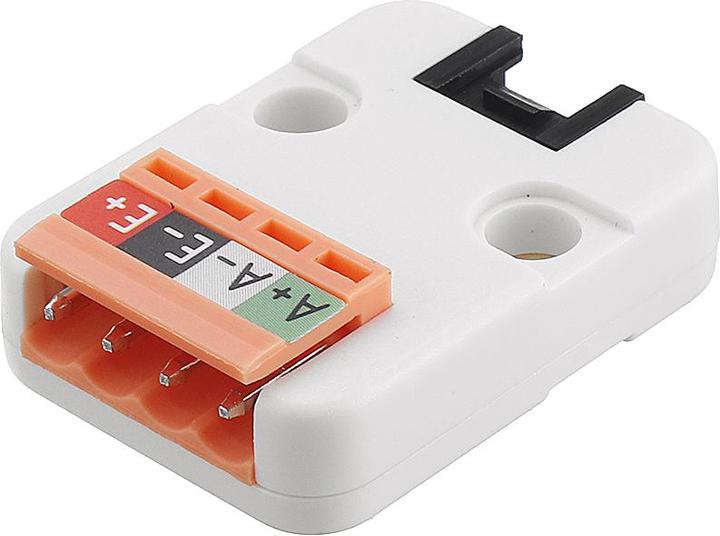

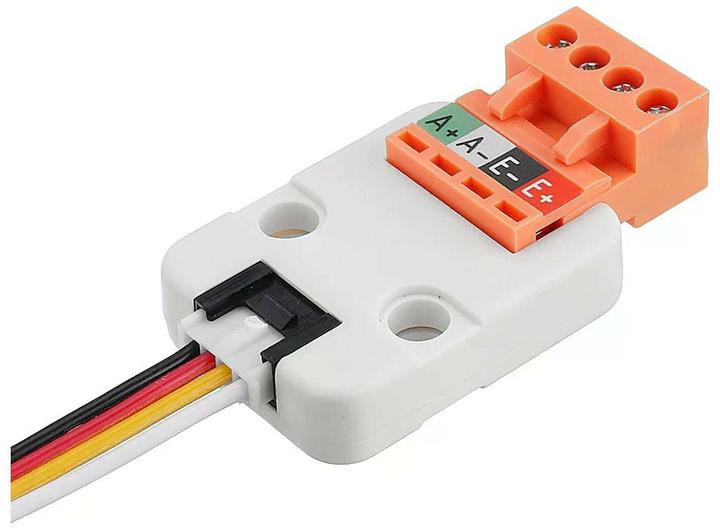

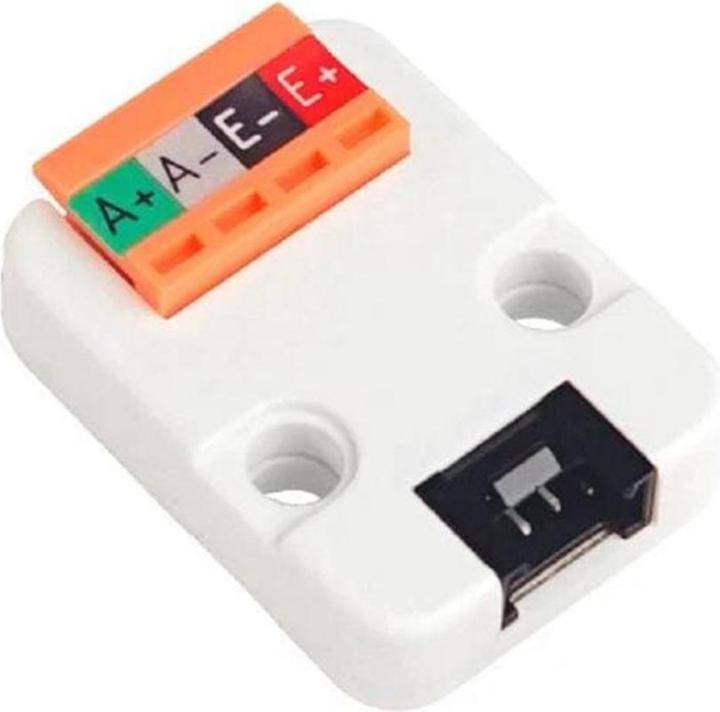

M5Stack Mini Weight Unit Load Cell Amplifier

This Weight Unit features a 24-bit A/D chip HX711 load sensor, specifically designed for electronic scales. The input multiplexer selects either channel A or B as the differential input for the low-noise programmable amplifier circuit. Channel A can be programmed with a gain of 128 or 64, corresponding to a differential input voltage of ±20 mV or ±40 mV when a 5V supply is connected. Channel B has a fixed gain of 32. No programming is required for the internal registers. Connect this Weight Unit to the GROVE PORTA on the M5Core or M5Stick.

Technical Details:
Chip: HX711
Two selectable differential input channels
Selectable gain: 32, 64, or 128
Simple digital control and serial interface
Interface: Grove A

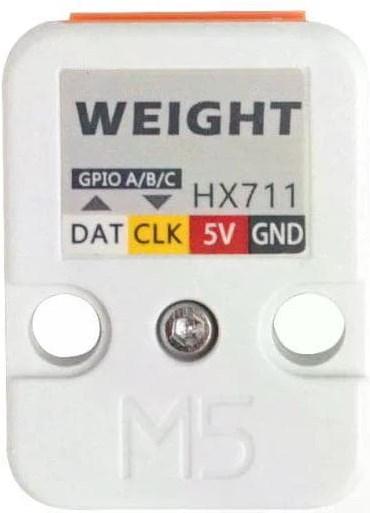

Used Pins: G22, G21 (DATA Pin, CLOCK Pin)
Mounting: Two Lego compatible holes

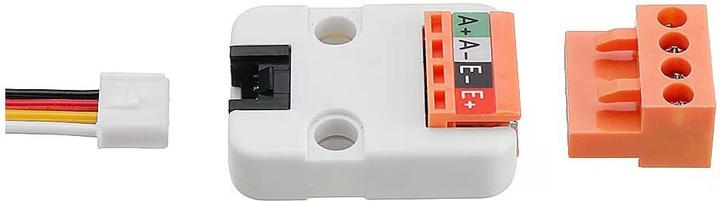

Connector: PH2.0 4 Pin
Dimensions: 32 x 24 x 10.2 mm
Weight: 19.9 g

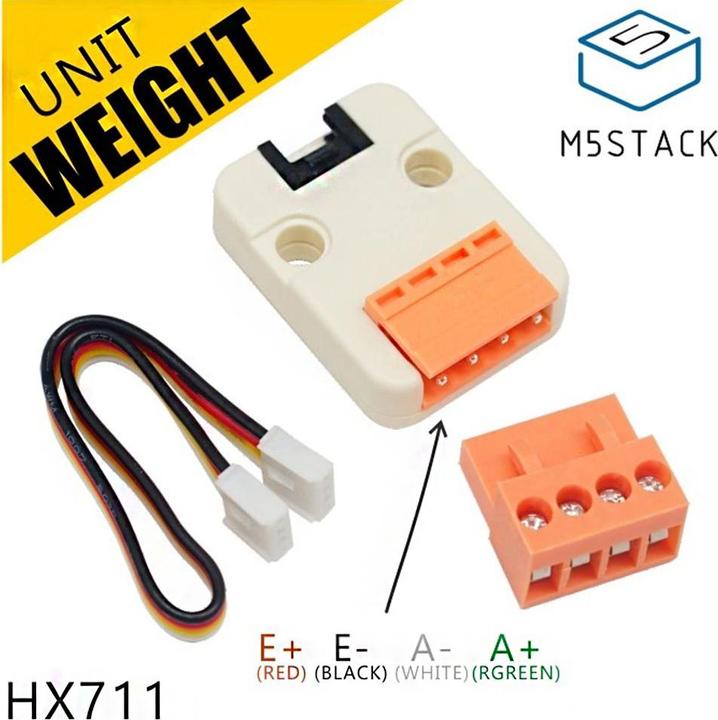

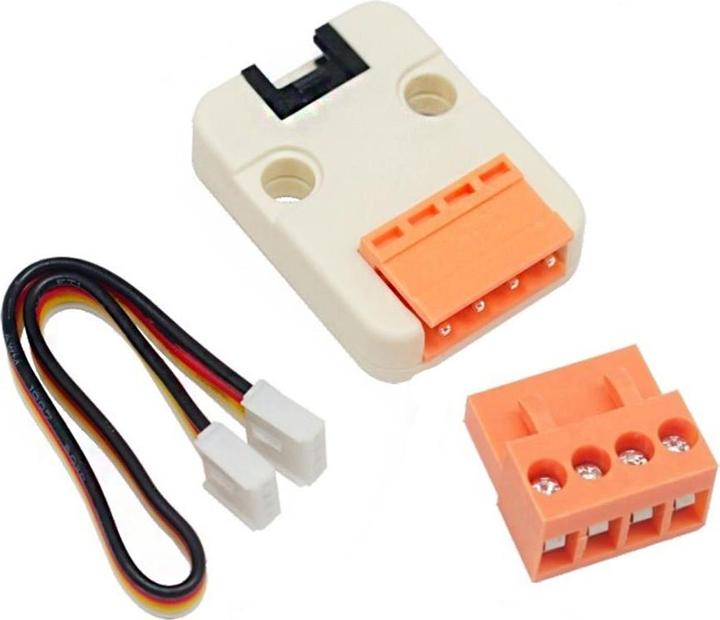

Package Includes:
1x M5Stack Mini Weight Unit HX711 load sensor
1x GROVE cable 20 cm

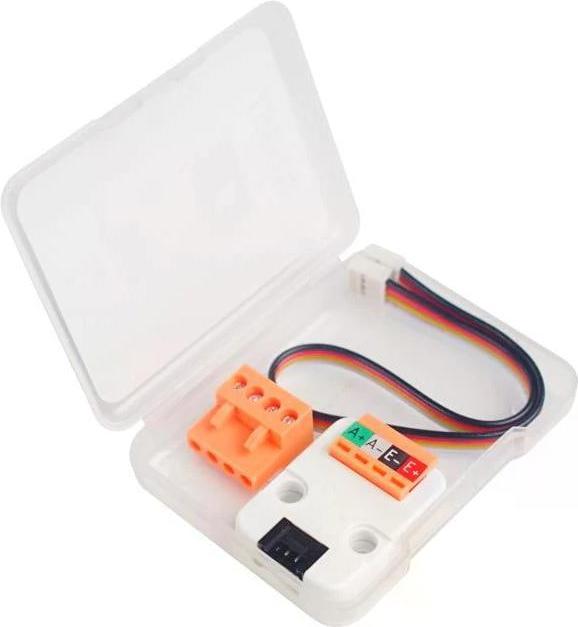

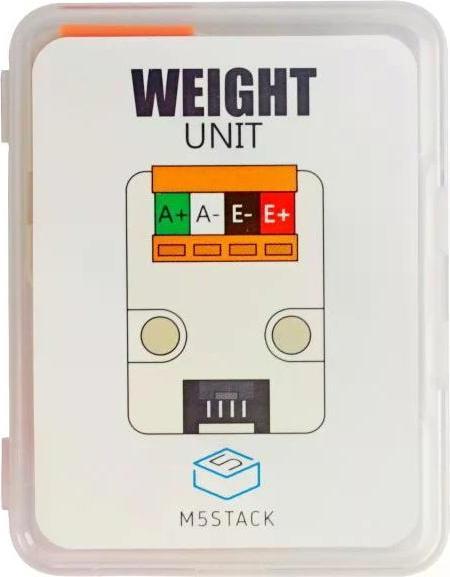

1x Storage box.
