M5Stack M5GO battery base 2 for Core2

Delivered between Fri, 11.7. and Tue, 15.7.
Only 4 pieces in stock at supplier
Free shipping starting at 50.–

Product details

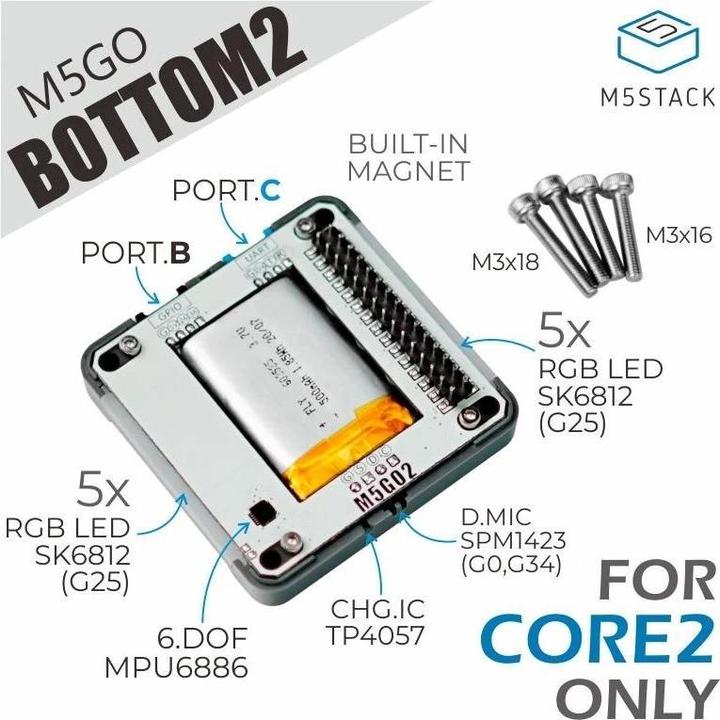

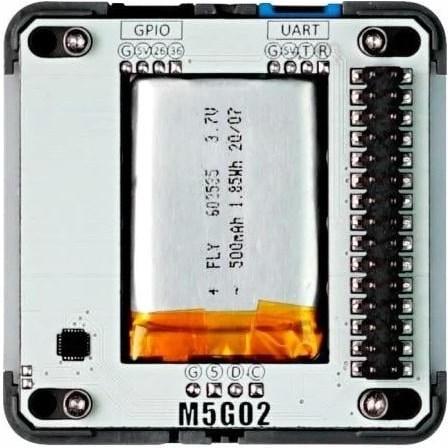

This is a battery extension for the M5Core2. In addition to the 500mAh LiPo battery, this module also features a digital microphone (SPM1423) and five programmable SK6812 RGB LEDs on each side. The two Grove B and Grove C ports are also helpful, allowing you to connect additional units.

Info: Optionally, you can purchase the M5GO/FIRE Charging Base. With the Charging Base, you can easily charge the M5Core2 via a magnetic charging connector.

Features:

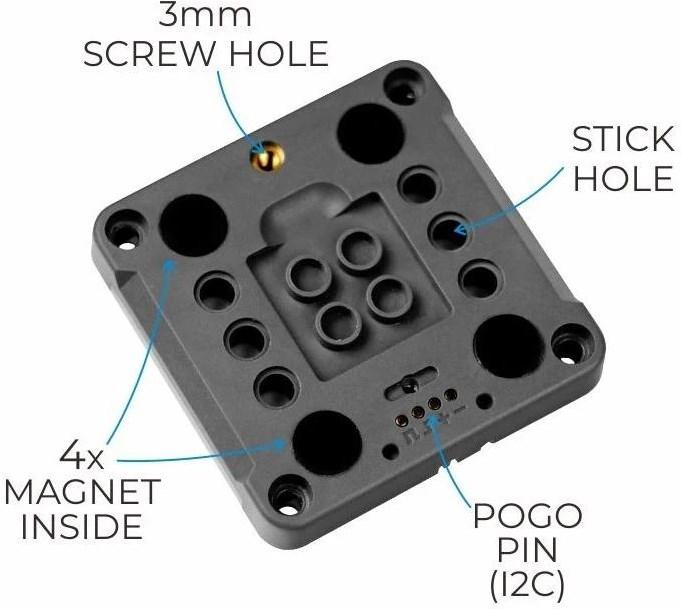

  • POGO pin on the back for charging via the optional Charging Base
  • 500mAh lithium battery
  • Digital microphone
  • Two additional Grove port interfaces (Grove B and Grove C)
  • RGB LED 10x SK6812
  • Compatible with M5Core2

Documentation:

  • M5Stack Wiki
  • Official M5Stack Forum

Technical Details:

  • Manufacturer: M5Stack
  • Manufacturer SKU: A014-C
  • Integrated LiPo battery: 500mAh
  • Microphone: SPM1423
  • LED: SK6812
  • IMU: MPU6886
  • Dimensions: 54 x 54 x 8mm
  • Weight: 46g

Package Contents:

  • 1x M5GO Battery Bottom2
  • 2x 16mm M3 socket head screws
  • 2x 18mm M3 socket head screws.

Key specifications

Item number
23990657

General information

Manufacturer
M5Stack
Category
Development board accessories
Manufacturer no.
A014-C
Release date
30.1.2021

Colour

Colour
Grey
Exact colour description
Grey

Electronics accessory properties

Development board Accessory type
Heatsink development board

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
1 piece

Product dimensions

Length
5.40 cm
Width
5.40 cm
Height
0.80 cm
Weight
31 g
