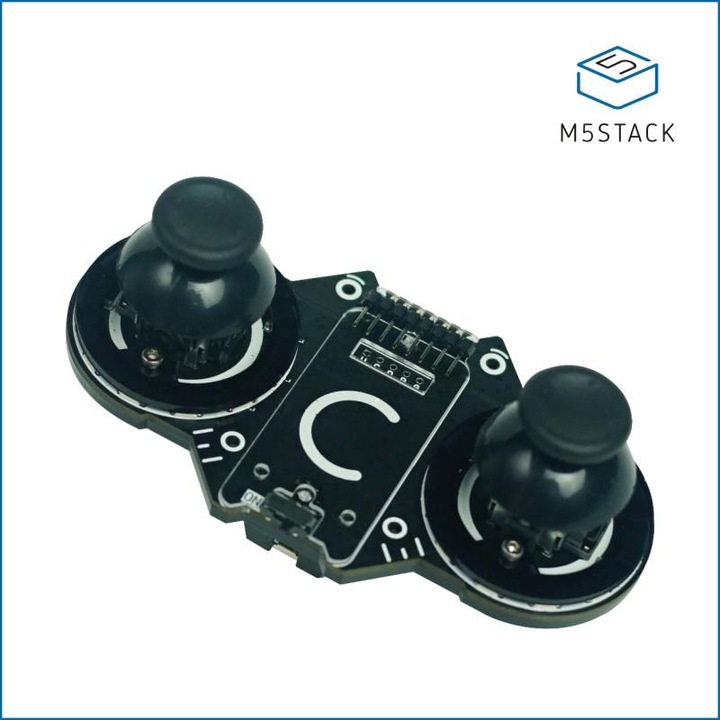

M5Stack JoyC (W/O M5StickC)

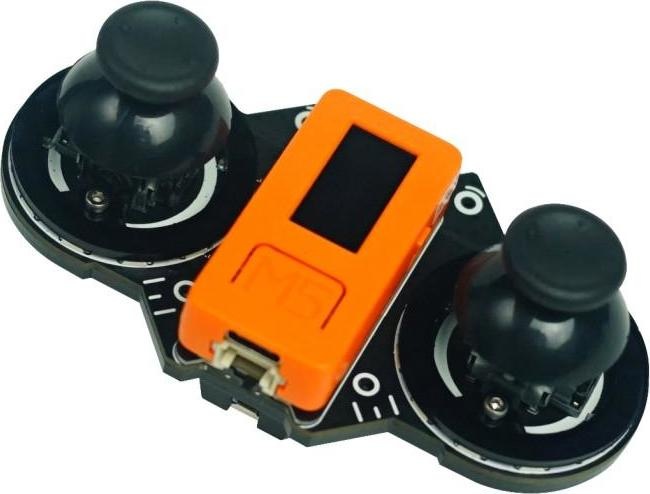

JoyC by M5Stack is a joystick remote control designed for the M5StickC, supporting two-handed operation. The JoyC features an STM32F030F4 microcontroller that transmits the joystick's position values to the M5Stick via the I2C communication protocol (I2C address 0x38). The joystick's resolution ranges from 0 to 200. Beneath the left and right joysticks are 12 RGB LEDs that can be individually controlled. A 16340 battery is integrated into the bottom of the joystick to provide extended battery life. Caution: The 16340 battery must not be inserted into the battery compartment in reverse. Always pay attention to the polarity.

Technical Details:

• Supports omnidirectional movement/button press
• Microcontroller: STM32F030F4
• 16340 3.7V 750mAh Li-ion battery
• Interface: HAT M5Stick I2C
• I2C Address: 0x38
• Equipped with a battery holder including a rechargeable 16340 750mAh Li-ion battery
• Dimensions: 200 x 55 x 50 mm
• Weight: 117 g

Included in Delivery:

• 1x M5StickC JoyC Joystick HAT (M5StickC not included)
• 1x 16340 battery 750mAh
• 1x Storage box.
