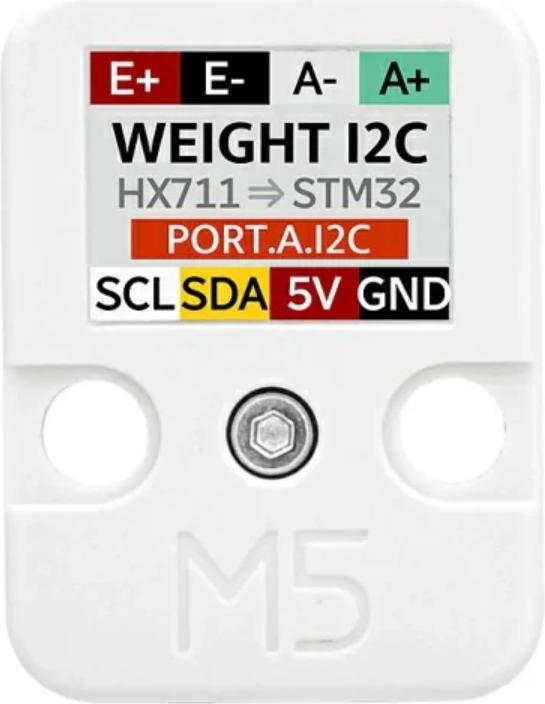

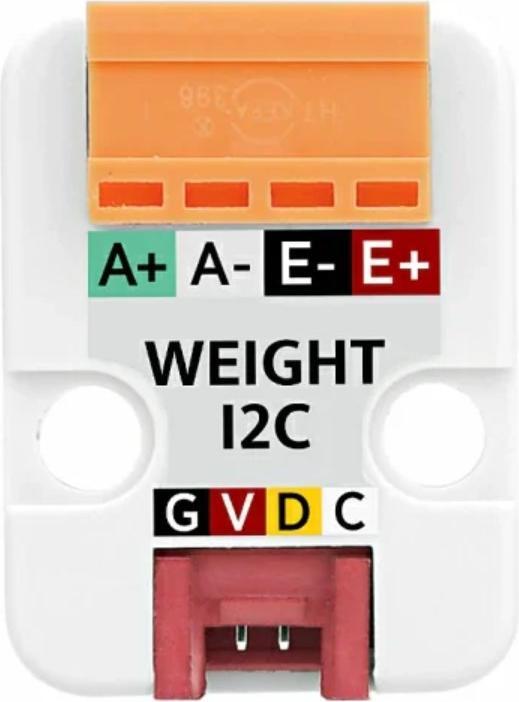

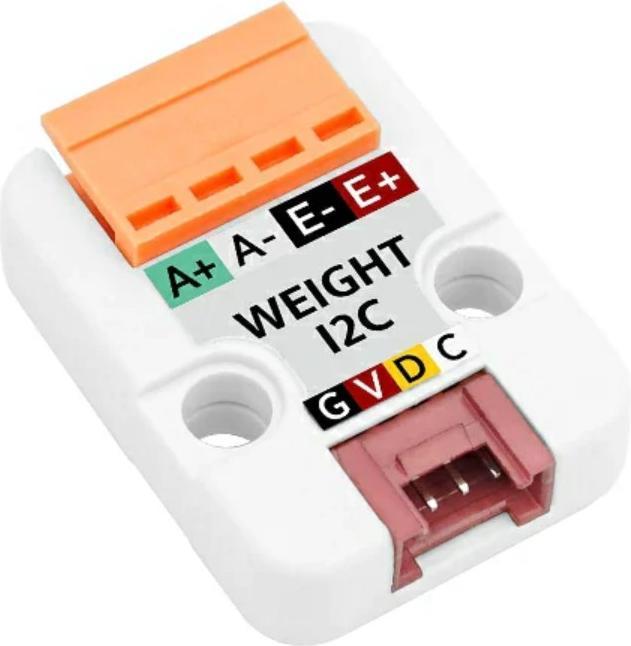

M5Stack I2C Weight Unit HX711 Weighing sensor

The M5Stack I2C Weight Unit HX711 is a high-precision weighing sensor that enables 24-bit measurement accuracy thanks to the combination of STM32 and HX711 chip. This unit is ideal for applications in industry, healthcare, logistics, laboratory research and food processing. The sensor supports parallel connection of multiple devices via the same I2C bus, giving you greater flexibility in terms of measurement range and data collection points. You can easily integrate the sensor into your existing systems as it is compatible with various programming platforms such as Arduino and UIFlow. The lightweight and compact design makes it easy to handle and versatile. The weighing sensor is not only attractive for the technically savvy, but also for users who need reliable and accurate weight measurement.

Recommended accessories:
1Kg Load Cell weight sensor
5Kg Load Cell weight sensor
20kg Load Cell weight sensor
50kg Load Cell weight sensor

Features:
High-precision weight measurement with 24-bit accuracy
Easy communication via I2C interface
Supports parallel connection of multiple units
Compatible with Arduino and UIFlow
Compact and lightweight design

Application examples:
Use as a microgravimeter in laboratories
Monitoring of weights in food processing
Use in logistics for freight weighting
Carrying out precise weight measurements in the healthcare industry

Technical data:
Manufacturer: M5Stack
Manufacturer SKU: U180
Communication mode: I2C (0x26)
ADC Chip: HX711
Resolution: 24Bit
Operating temperature: 0-40°C
Dimension: 32 x 24 x 11.3mm
Weight: 13.5g

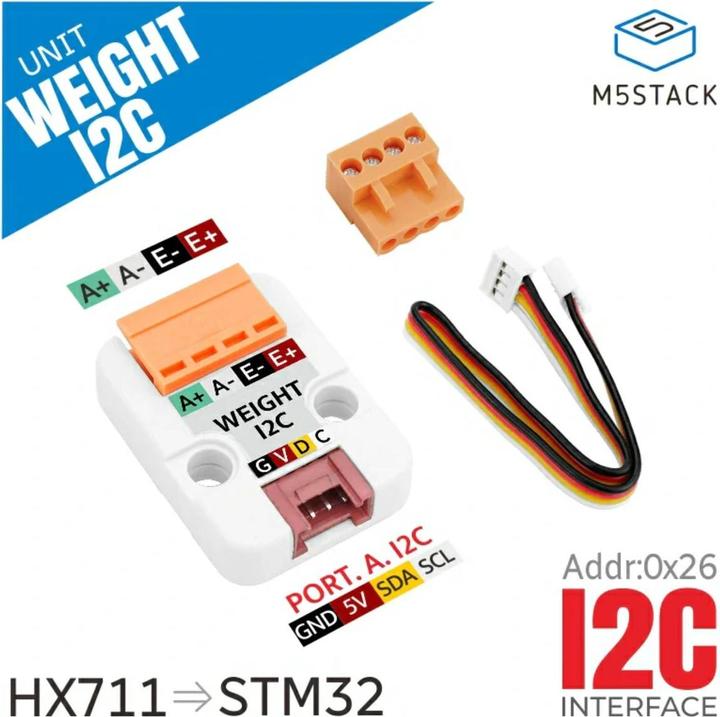

Scope of delivery:
1x M5Stack I2C Weight Unit HX711 weighing sensor
1x HY2.0-4P Grove cable 20cm

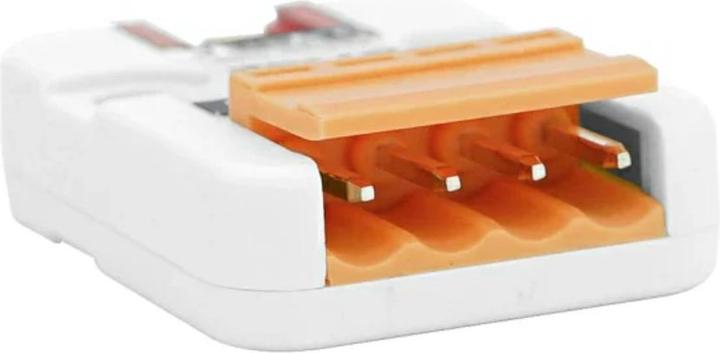

1x VH3.96-4P connector.
