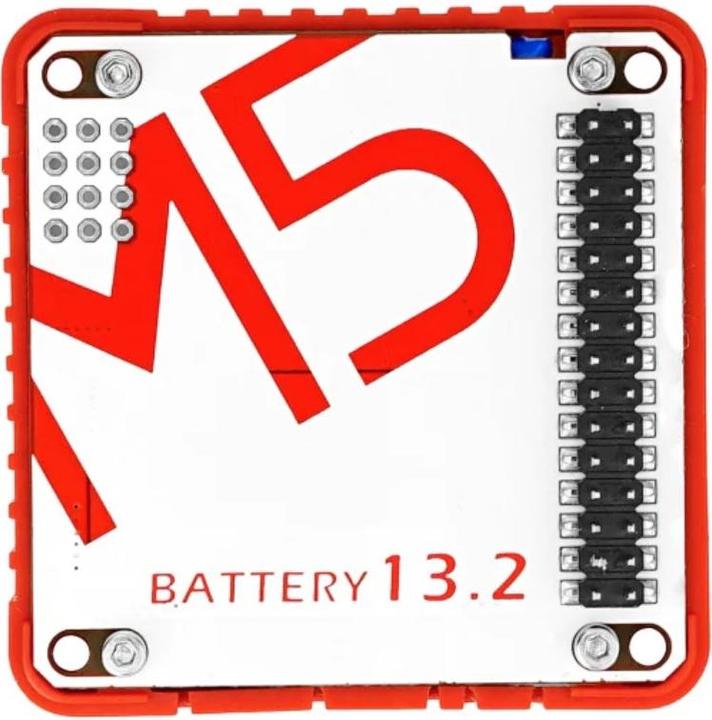

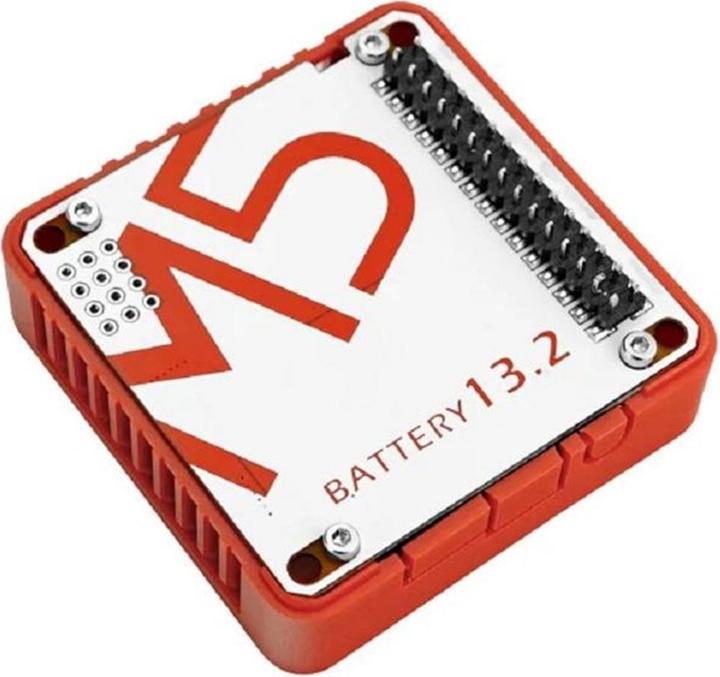

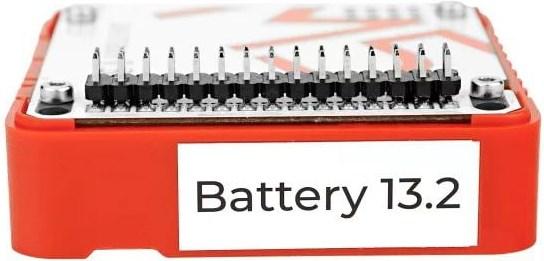

M5Stack Battery module 13.2 1500 mAh

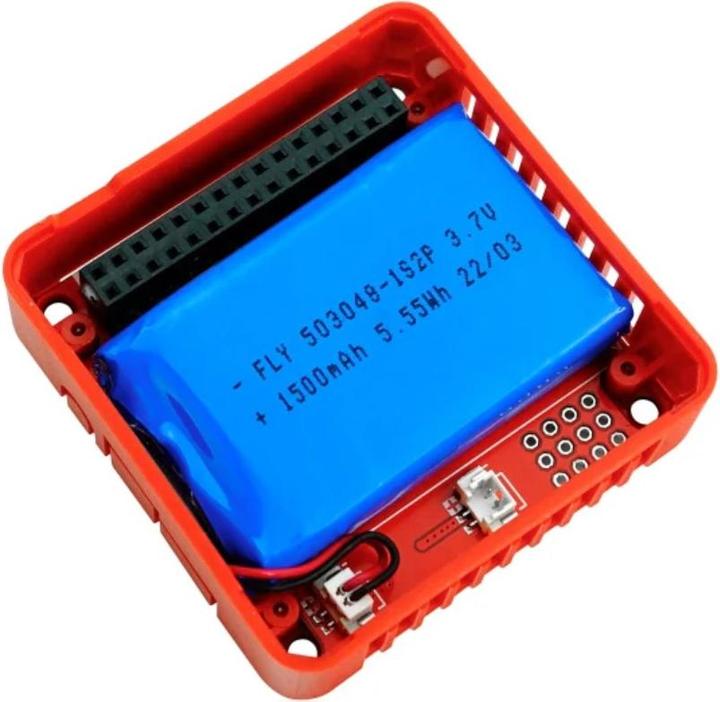

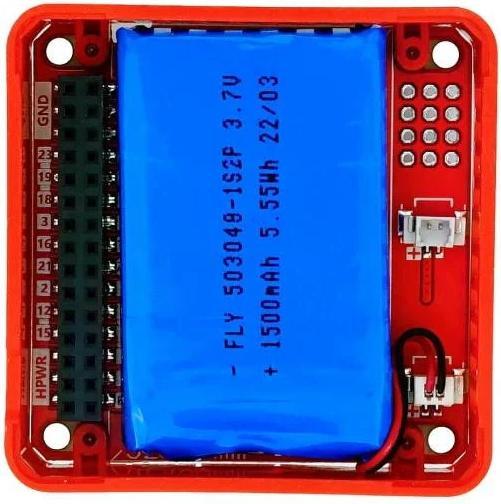

If the 700mAh battery from M5Stack isn't enough for you, there is now a larger option with an impressive 1500mAh capacity. With the built-in batteries in the M5GO Base and M5Stack Basic Base, you typically won't achieve very long battery runtimes. However, with the M5Stack Battery Module for ESP32 Core, you can extend the battery life thanks to the additional lithium battery. Since the M5Stack Battery Modules can be connected in parallel, you can stack multiple units to achieve even longer runtimes.

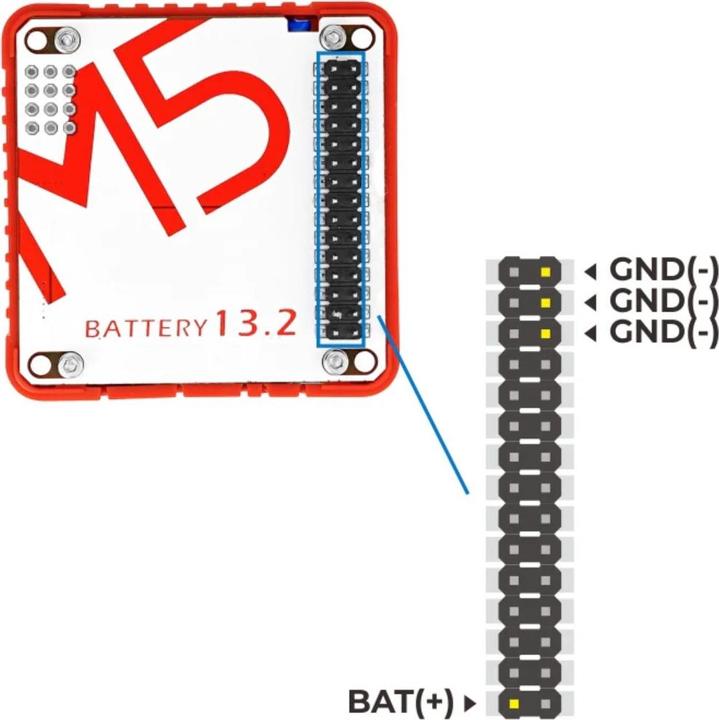

Hardware connection: Once the battery is stacked under the M5 control, the positive terminal of the battery is connected to the VBAT pin on the IP5306.

Warning: The safety of the LiPo battery can be compromised by many conditions. Overcharging, overheating, short circuits, crushing, and nail penetration can lead to catastrophic failures, including battery rupture, electrolyte leakage, and fire. Although every battery offered by M5Stack is extensively protected, the LiPo battery must still be handled with care.

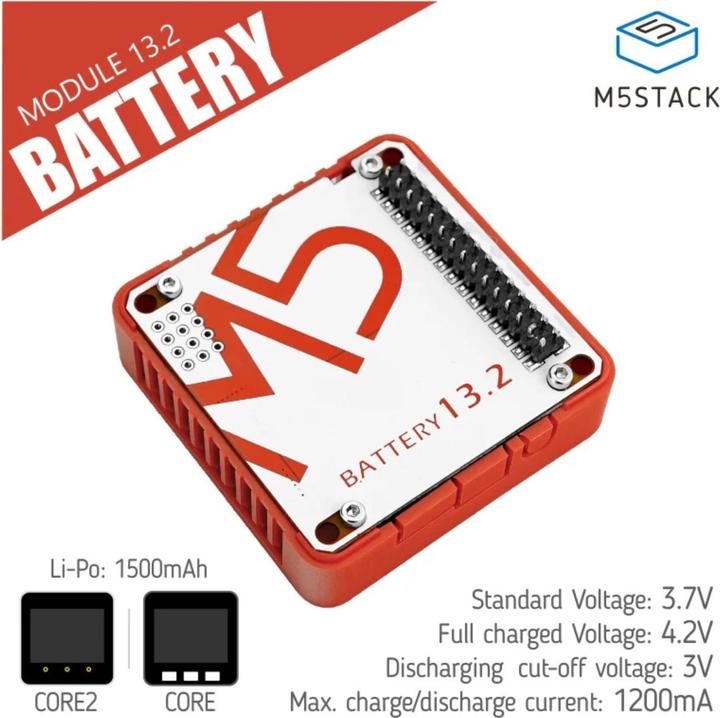

Technical details:
Manufacturer: M5Stack
Manufacturer SKU: M120
Capacity: 1500mAh
Charging voltage: 4.2V
Discharge voltage: 3.0V
Nominal voltage: 3.7V
Charging current: 300mA standard, 1200mA fast charge
Internal resistance: 150mΩ
Operating temperature: 5°C – 55°C
Dimensions: 54 x 54 x 14mm
Weight: 64g

Package contents:
1x 1500mAh M5Stack Battery Module for ESP32 Core.
