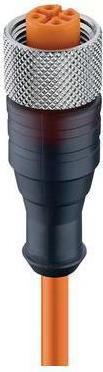

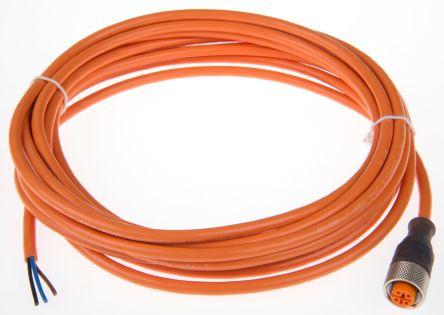

Lumberg Sensor cable socket ger. M12 3-pole 5m

Connection type: M12
Cable length: 5m
Accessory variant: Socket connector
Gender: Socket
For use with: Sensors and actuators

3-pole (4 poles but 1 not connected) cable sets are wired as follows (1-4): brown, colorless, blue, and black. 4-pole: brown, white, blue, and black. 5-pole: brown, white, blue, black, green/yellow. M12 connectors, RKT series, actuator-sensor cable set. M12 connectors, RKT series, are 3-, 4-, or 5-pole industry standard female connectors with locking nut and straight design. Cordsets are available in a variety of lengths and cable materials to fit a wide range of connector applications and environments. M12 Actuator RKT Series - Sensor connectors are especially suited for connecting optoelectronic sensors or safety switches typically found on security doors, security systems, or junction boxes, and feature an open cable end for wiring flexibility. Connector housing material: TPU. Protection class IP67, when connected. O-ring material: FKM. Knurled nut made of CuZn, nickel-plated. Contact material: CuZn, pre-nickel-plated, 0.3 μm gold-plated. Temperature range: -25 to +80 °C.
