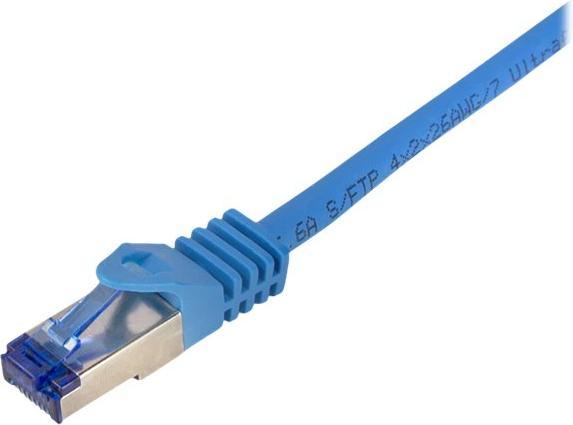

The certified LogiLink Cat.6A patch cable is ideally suited for data transmissions of up to 10 Gigabit Ethernet and transmission frequencies of up to 500 MHz. The jacket is halogen-free and flame-retardant, the copper wires are shielded in pairs, and the overall shield consists of copper braiding. The shielded RJ45 connectors are equipped with a molded, very slim strain relief and latch protection.
Main Features
Cable Length: 0.25 m
Cable Standard: Cat6a
Cable Shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Product Color: Blue
Connector 1 Gender: Male
Connector 2 Gender: Male
Connector Shielding: Yes
Connector Shielding Material: Copper Alloy
Jacket Material: Low Smoke Halogen Free (LSZH)
Cable Shape: Round
Conductor Material: Copper
Cable Class: Ea
Wiring Technology: 10GBase-T
Ethernet Interface Type: 10 Gigabit Ethernet.
Patch cable type | Copper cable |
Contact assignment | straight |
Item number | 23199727 |
Manufacturer | LogiLink |
Category | Network cables |
Manufacturer no. | C6A016S |
Release date | 18.10.2022 |
Cable colour | Blue |
Material | Copper braiding |
Material of the isolation | LSZH |
Connection A | RJ45 |
Connection B | RJ45 |
Cable Application | Network |
Cable design | Round |
Plug type | Flat |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 26 |
Frequency | 500 MHz |
Temperature range | -20° - 75 °C |
Patch cable type | Copper cable |
Patch cable Features | Halogen-free, Slim |
Max. data transfer rate | 1250 GB/s |
Cable category | CAT6a |
Contact assignment | straight |
Shield | S/FTP |
Number of fibres | 8 x |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | FTP, blue, 0.25 m - Network - CAT 7 cable, Patch cable Ultraflex, Cat.6A, S, RJ |
Diameter | 6 mm |
Length | 0.25 m |
Width | 6 mm |
Depth | 0.60 mm |
Weight | 18 g |
Length | 27.40 cm |
Width | 9 cm |
Height | 1.50 cm |
Weight | 21 g |
